Hydraulic, Cartridge L: 8,19 in, OD: 3,1 in, ID: 1,49 in
#DONP566461
Product Overview

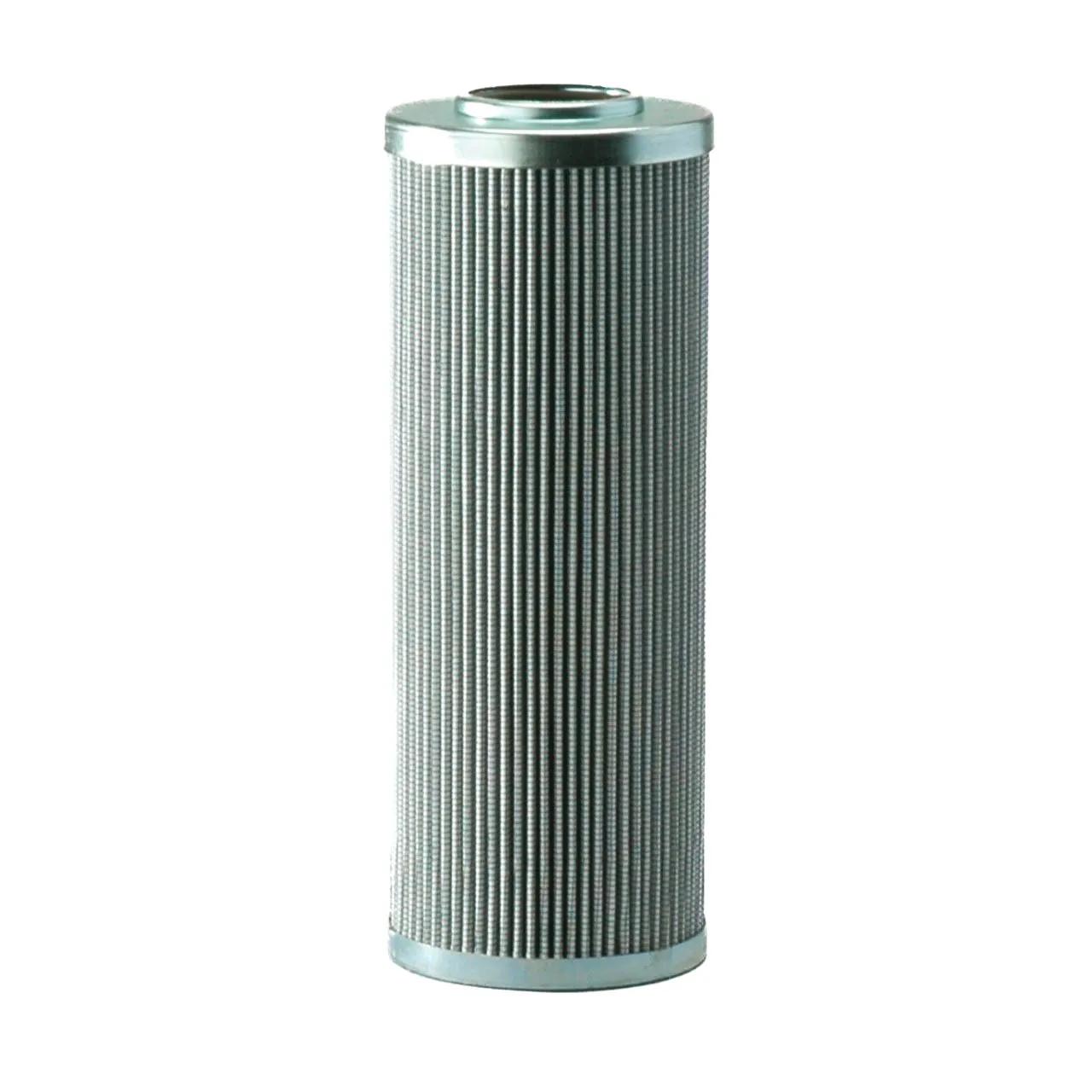

HYDRAULIC FILTER, CARTRIDGE DT
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 8 Micron |
| Efficiency Beta 1000 (Micron) | 8 Micron |
| Inner Diameter | 1.49 in (37.9 mm) |
| Length | 8-3/16 in (20.8 cm) |
| Outer Diameter | 3-3/32 in (7.85 cm) |
| Overall Length | 8.22 in (208.8 mm) |
| Length Range | 8 to 8.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566461 |
| 7407 |
| 57407 |
| DT820088UM |
| R820H0806A |
| HF30077 |
| 52YT54 |
| 1XPV8 |
| 11608D06BN |
| H82008005BN |
| 932266Q |
| SBF82008Z5B |
| SBF82008Z5V |
| 820086UM |
| 820086UMV |
| E2682B2C05 |
| D61A06GAV |
| HC8200FDN8H |
| HC8200FDN8Z |
| HC8200FKN8H |
| HC8200FKN8Z |
| HC8200FCN8H |
| HC8200FCN8Z |
| 02212647 |
| SBF-8200-8Z5B |
| SBF-8200-8Z5V |
| SBF8200-8Z5B |
| SBF8200-8Z5V |
| 2212647 |
