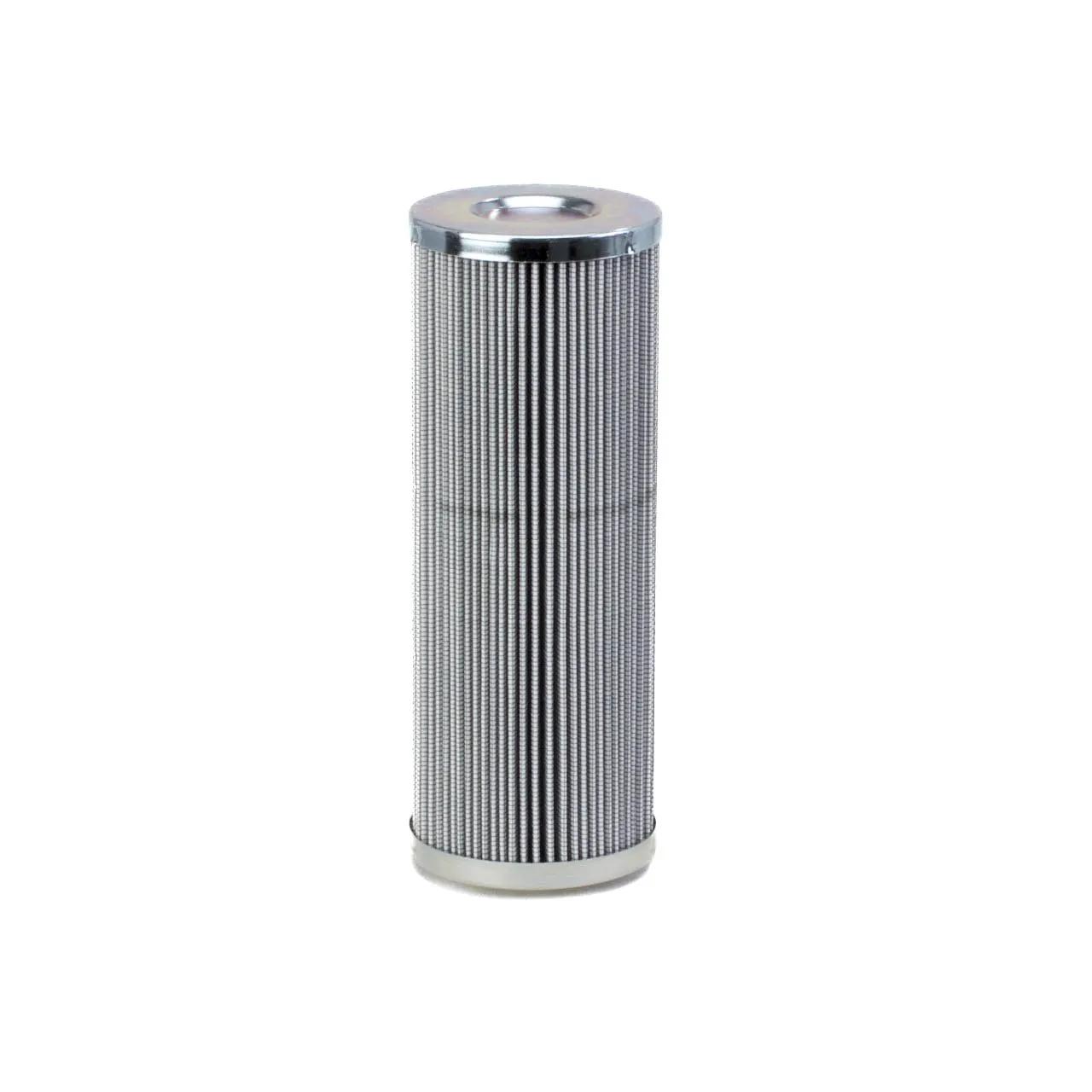

Hydraulic, Cartridge L: 8,19 in, OD: 3,1 in, ID: 1,49 in
#DONP566463
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 25 Micron |
| Efficiency Beta 1000 (Micron) | 23 Micron |
| Inner Diameter | 1.49 in (37.9 mm) |
| Length | 8-3/16 in (20.8 cm) |
| Outer Diameter | 3-3/32 in (7.85 cm) |
| Overall Length | 8.22 in (208.8 mm) |
| Length Range | 8 to 8.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566463 |
| DT8200825UM |
| R820H0825A |
| D170G25A |
| 11608D25BN |
| H82008020BN |
| LH95470V |
| 933365Q |
| SBF82008Z25B |
| SBF82008Z25V |
| 8200825UM |
| 8200825UMV |
| HC8200FDT8H |
| HC8200FDT8Z |
| HC8200FKT8H |
| HC8200FKT8Z |
| HC8200FCT8H |
| HC8200FCT8Z |
| HC8200FRT8H |
| HC8200FRT8Z |
| HC8200FHT8H |
| HC8200FHT8Z |
| SBF-8200-8Z25B |
| SBF8200-8Z25B |
| SBF8200-8Z25V |
