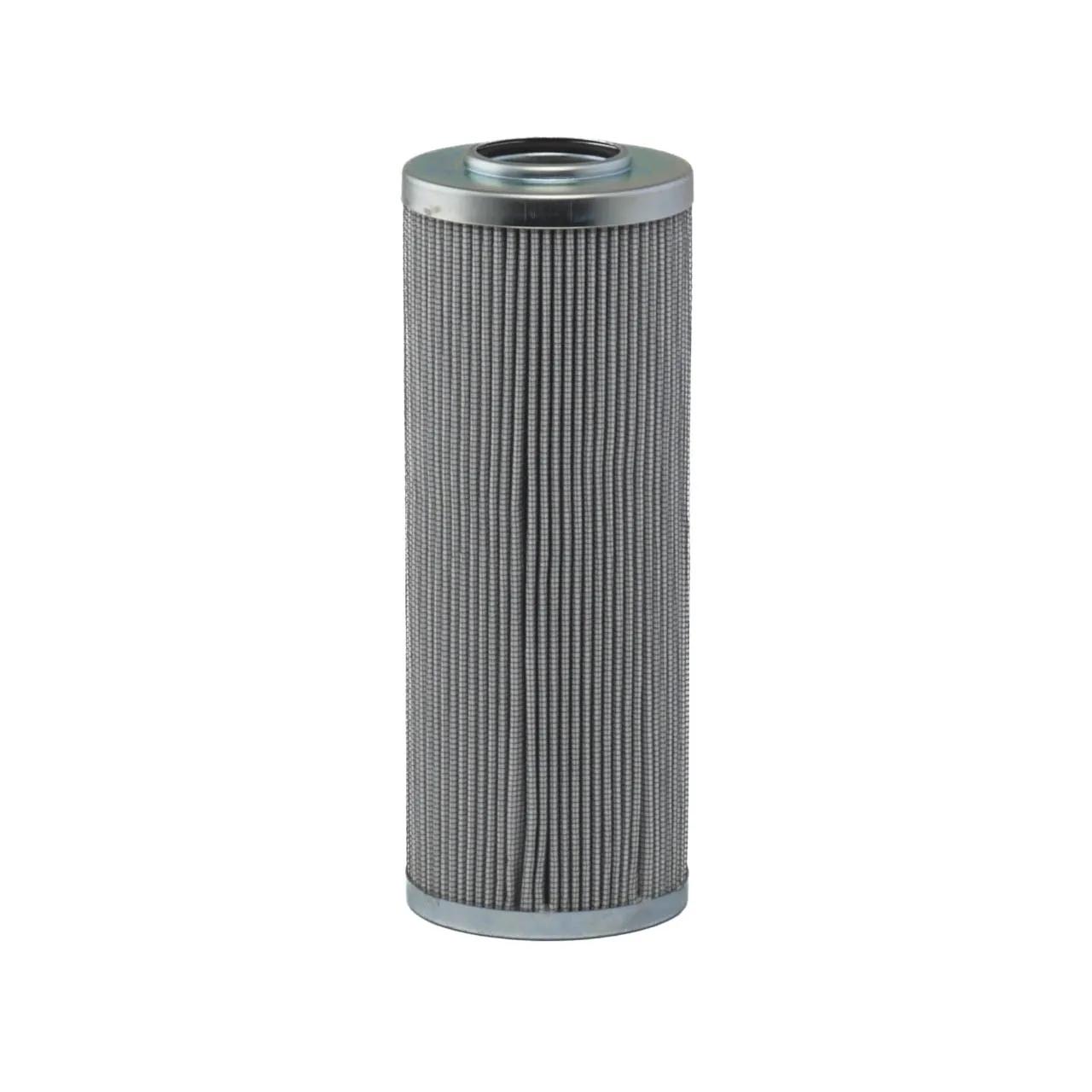

Hydraulic, Cartridge L: 8,19 in, OD: 3,1 in, ID: 1,52 in
#DONP566462
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 12 Micron |
| Efficiency Beta 1000 (Micron) | 12 Micron |
| Inner Diameter | 1.52 in (38.7 mm) |
| Length | 8-3/16 in (20.8 cm) |
| Outer Diameter | 3-3/32 in (7.85 cm) |
| Overall Length | 8.22 in (208.8 mm) |
| Length Range | 8 to 8.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566462 |
| DT8200814UM |
| R820H0812A |
| 11608D12BN |
| H82008010BN |
| LH95460 |
| LH95460V |
| 933364Q |
| SBF82008Z10B |
| SBF82008Z10V |
| 8200812UM |
| 8200812UMV |
| E2682B2C10 |
| HC8200FDS8H |
| HC8200FDS8Z |
| HC8200FKS8H |
| HC8200FKS8Z |
| HC8200FCS8H |
| HC8200FCS8Z |
| HC8200FRS8H |
| HC8200FHS8H |
| HC8200FHS8Z |
| FLR0779 |
| SBF-8200-8Z10B |
| SBF8200-8Z10B |
| SBF8200-8Z10V |
