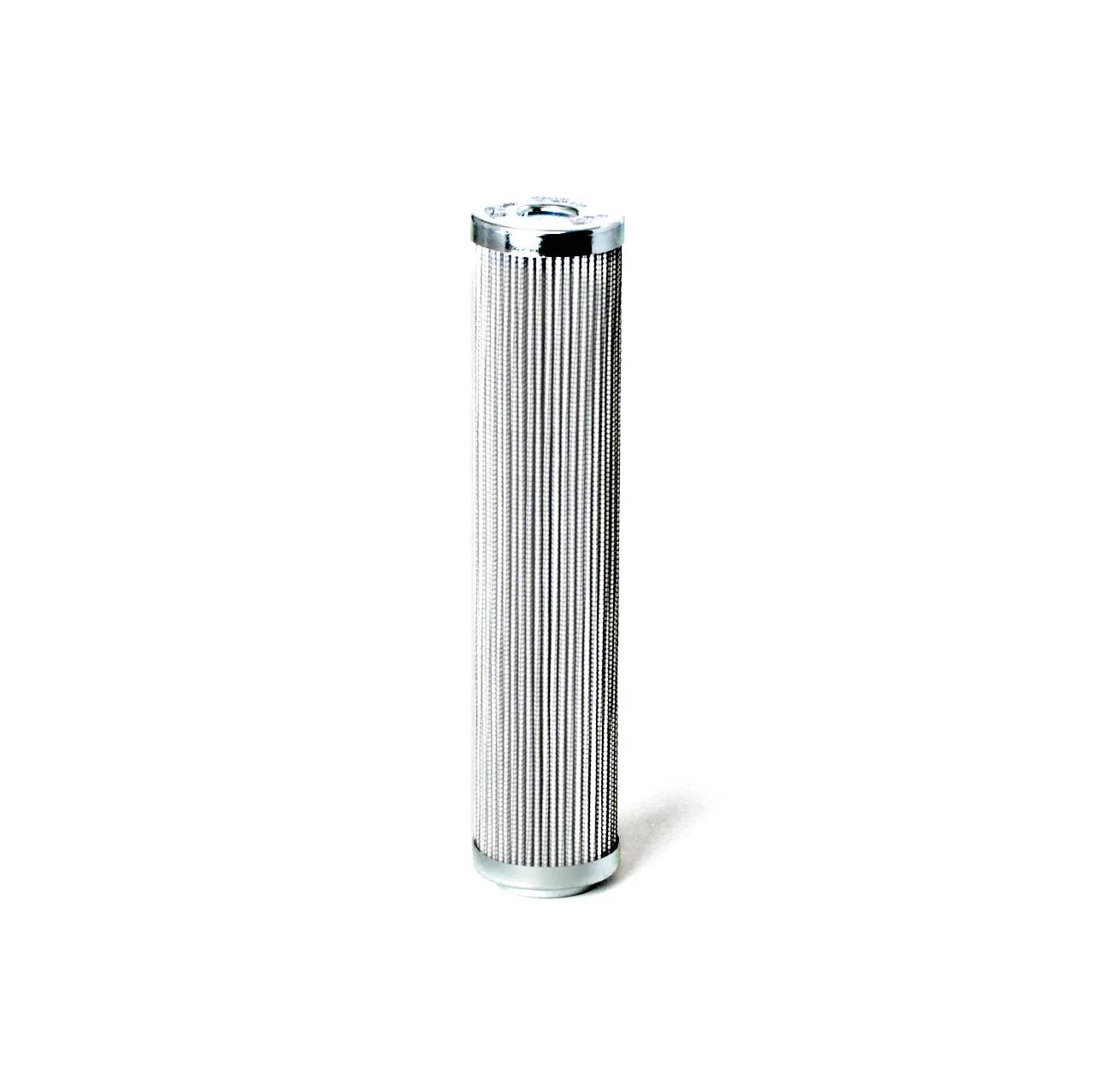

Hydraulic, Cartridge L: 8,27 in, OD: 1,77 in, ID: 0,96 in
#DONP566199
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 1 to 1.99 in |
| Efficiency Beta 1000 | 4 Micron |
| Efficiency Beta 1000 (Micron) | 4 Micron |
| Inner Diameter | 0.96 in (24.4 mm) |
| Length | 8-17/64 in (21.01 cm) |
| Outer Diameter | 1-49/64 in (4.5 cm) |
| Overall Length | 8.19 in (208.1 mm) |
| Series | HPK02. W440. FPK02 |
| Length Range | 8 to 8.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP20L81MB |
| HP20L82MV |
| P566199 |
| DT902082UM |
| LH95192 |
| LH95192V |
| SBF90208Z1B |
| SBF90208Z1V |
| HC9020FDZ8H |
| HC9020FDZ8Z |
| HC9020FKZ8H |
| HC9020FKZ8Z |
| HC9020FUZ8H |
| HC9020FUZ8Z |
| HC9020FCZ8H |
| HC9020FCZ8Z |
| HC9020FRZ8H |
| SBF9020-8Z1B |
| SBF9020-8Z1V |
| HC9020FRZ8Z |
| HC9020FHZ8H |
| HC9020FHZ8Z |
| KMP9020AKC8B |
| KMP9020AKC8V |
