2 POINTS

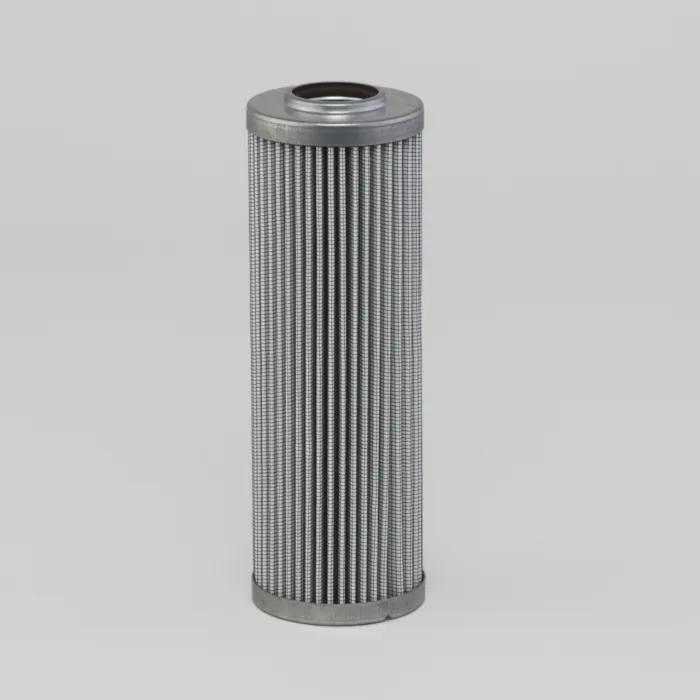

Hydraulic, Cartridge L: 8,27 in, OD: 2,75 in, ID: 1,34 in
#DONP566631
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 2 to 2.99 in |
| Efficiency Beta 1000 | 5 Micron |
| Gasket ID | 1.3 in |
| Gasket OD | 1.61 in (40.9 mm) |
| Inner Diameter | 1.34 in |
| Length | 8-17/64 in |
| Outer Diameter | 2-3/4 in |
| Overall Length | 8 in |
| Length Range | 8 to 8.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P566631 |
| DT910085UM |
| LH95204 |
| LH95204V |
| 910083UM |
| 910083UMV |
| D65A03GAV |
| HC9100FDP8H |
| HC9100FDP8Z |
| HC9100FKP8H |
| HC9100FKP8Z |
| HC9100FUP8H |
| HC9100FUP8Z |
| HC9100FCP8H |
| HC9100FCP8Z |
| HC9100FRP8Z |
| 11208D03BN |
| 1269112 |
| H91008003BH |
| HC9100FHP8H |
| HC9100FHP8Z |
