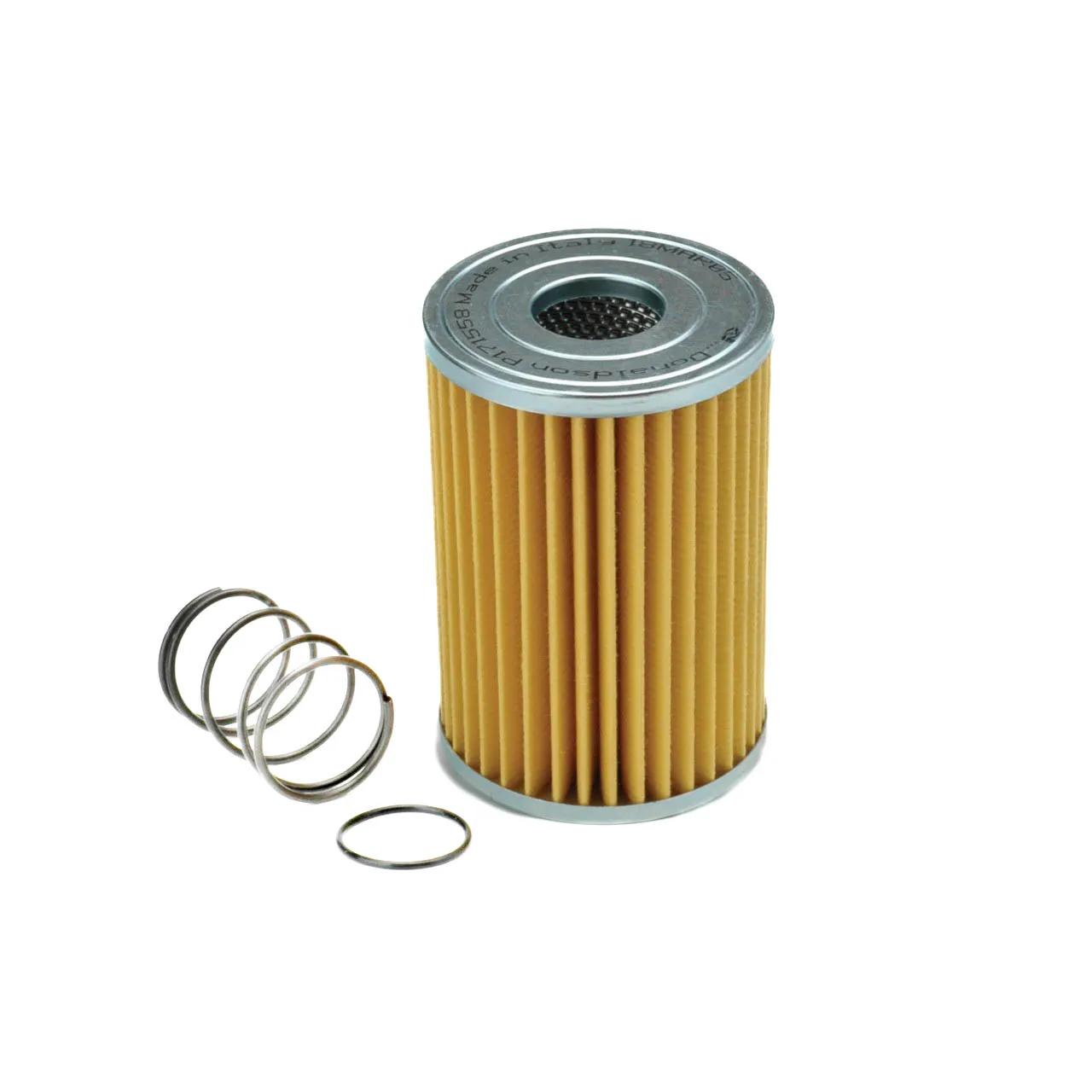

Hydraulic, Cartridge L: 8 in, OD: 5,52 in, ID: 2,05 in
#DONP171558
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 21.76 psi (1.5 bar) |
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 2 | 27 Micron |
| Efficiency Beta 2 (Micron) | 27 Micron |
| Inner Diameter | 2.05 in (52.1 mm) |
| Length | 8 in (20.32 cm) |
| Outer Diameter | 5-33/64 in (14.02 cm) |
| Series | FIK |
| Length Range | 8 to 8.99 in |
| Style | Cartridge |
| Vehicle Make | F.B.O. |
Interchanges & Equivalent parts:
| PT9168 |
| R25C25CB |
| K070019 |
| K070073 |
| K070294 |
| K070329 |
| CR3253 |
| 848100001 |
| R151C25B |
| HF7911 |
| SH630094 |
| F33P20A |
| F33P25 |
| 852370MIC25 |
| HY18241 |
| 7612200 |
| 1813108 |
| CR2030 |
| 510612808 |
| LI3419 |
| Y05805203 |
| 5106128 |
| 510612890 |
| 510661208 |
| 140048 |
| RE80CV1 |
| 1511024 |
| TE828 |
| TE847 |
| 3072 |
| HF171558 |
| WGH9101 |
| DN P171558 |
| DN P171558 |
| 2191-P171558 |
| CR325/3 |
| DONP171558 |
| F33P20AP01 |
