Hydraulic, Cartridge L: 8 in, OD: 5,52 in, ID: 2,56 in
#DONP171561
Product Overview

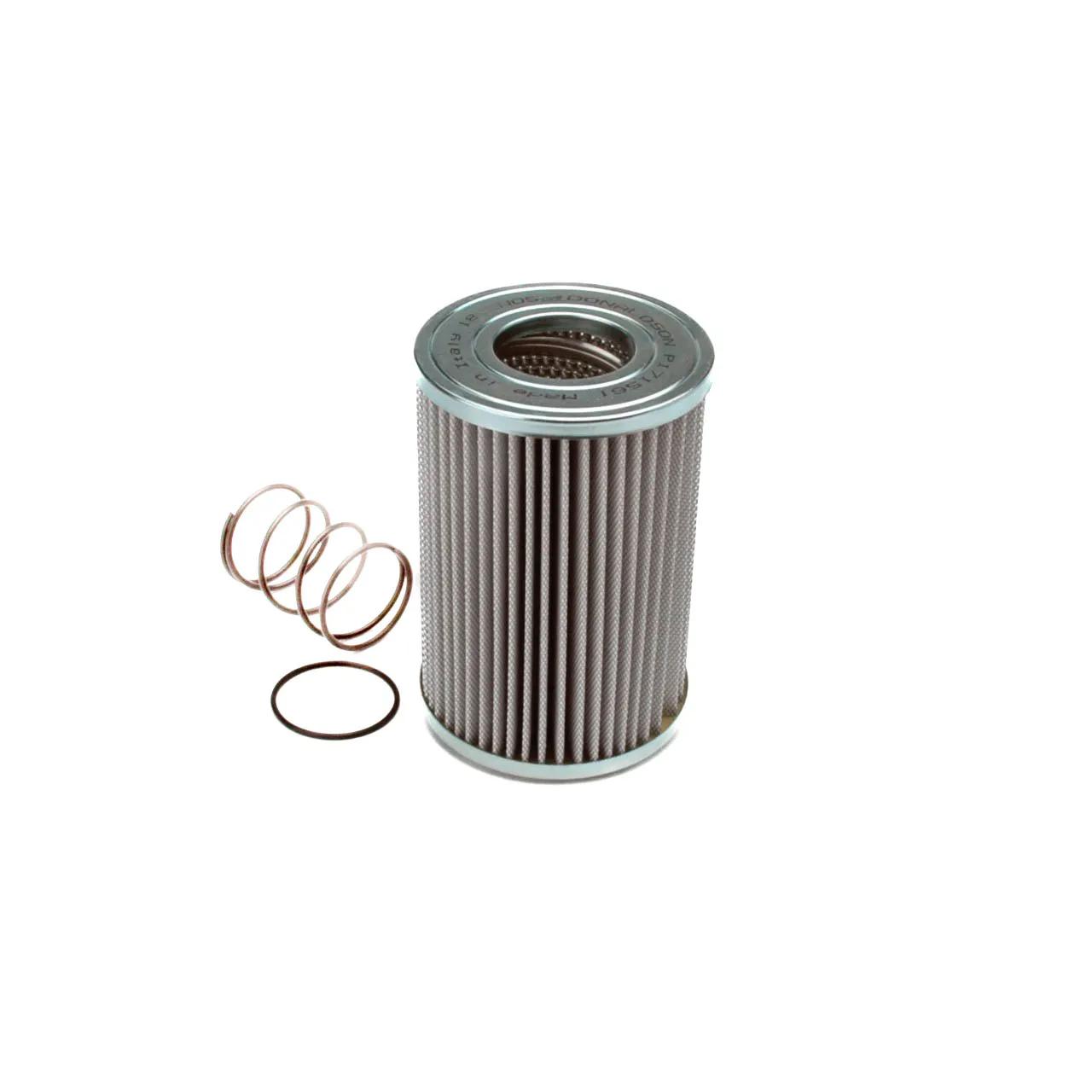

HYDRAULIC FILTER, CARTRIDGE
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 21.76 psi (1.5 bar) |
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 1000 | 11 Micron |
| Efficiency Beta 1000 (Micron) | 11 Micron |
| Inner Diameter | 2.56 in (65.1 mm) |
| Length | 8 in (20.32 cm) |
| Outer Diameter | 5-33/64 in (14.02 cm) |
| Length Range | 8 to 8.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P171561 |
| R27C10GB |
| 136380 |
| PT23048MPG |
| PT9249 |
| K070022 |
| K070076 |
| K070166 |
| K070172 |
| K070202 |
| K070208 |
| K070297 |
| K070331 |
| K070401 |
| K070421 |
| K070505 |
| K070565 |
| CR33002 |
| R160G10B |
| FR160C10B |
| FR160G10B |
| TIE2410A2 |
| TIE32101 |
| TIE3210A1 |
| MF0062380 |
| F40A10NA |
| F40P10NA |
| ERA52NFC |
| ERA52NCC |
| DME5C |
| DRE5C |
| DTE5C |
| BEMF4L810MB |
| CR223C10R |
| CR223F10R |
| CRE100CD1 |
| CRE100FD1 |
| TE150CD1 |
| TE150FD1 |
| DN P171561 |
| DN P171561 |
| ERA52NFA |
| 2191-P171561 |
| CR330/02 |
| DONP171561 |
| HF35214 |
| HF35214FLG |
| MF4002A10HB |
| MF4002A10NB |
| RE100FD1 |
| F40A10NAP01 |
| F40P10NAP01 |
| HPMF4L810MB |
| HY12101 |
| PT23048-MPG |
| HPMF4L810MV |
