Hydraulic, Cartridge L: 8 in, OD: 5,52 in, ID: 2,56 in
#DONP171563
Product Overview

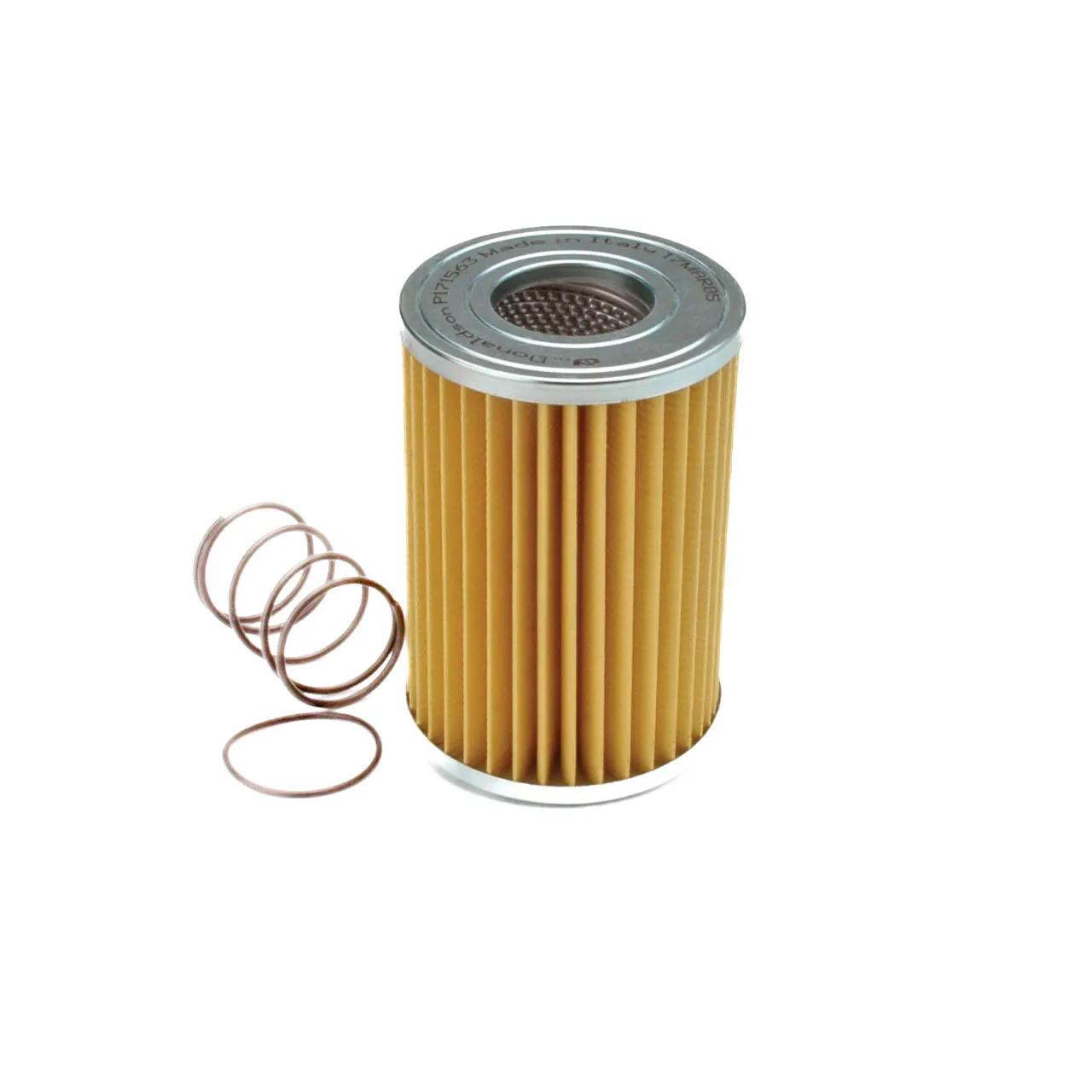

HYDRAULIC FILTER, CARTRIDGE
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 21.76 psi (1.5 bar) |
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 1000 | 23 Micron |
| Efficiency Beta 1000 (Micron) | 23 Micron |
| Efficiency Beta 2 | 7 Micron |
| Efficiency Beta 2 (Micron) | 7 Micron |
| Inner Diameter | 2.56 in (65.1 mm) |
| Length | 8 in (20.32 cm) |
| Outer Diameter | 5-33/64 in (14.02 cm) |
| Length Range | 8 to 8.99 in |
| Style | Cartridge |
| Vehicle Make | F.B.O. |
Interchanges & Equivalent parts:
| P171563 |
| R27C10CB |
| K070078 |
| K070168 |
| K070174 |
| K070204 |
| K070210 |
| K070299 |
| K070333 |
| K070402 |
| K070423 |
| K070507 |
| K070567 |
| CR3301 |
| R160C10B |
| TIE24102 |
| F40P10A |
| HY18244 |
| 171563 |
| D10330AN |
| DME5A |
| DRE5A |
| DTE5A |
| P2614114 |
| 510651908 |
| 1511031 |
| F40P10AP01 |
| DN P171563 |
| DN P171563 |
| 2191-P171563 |
| CR330/1 |
| DONP171563 |
| K070024 |
| MF0062380 |
| RE100CD1 |
