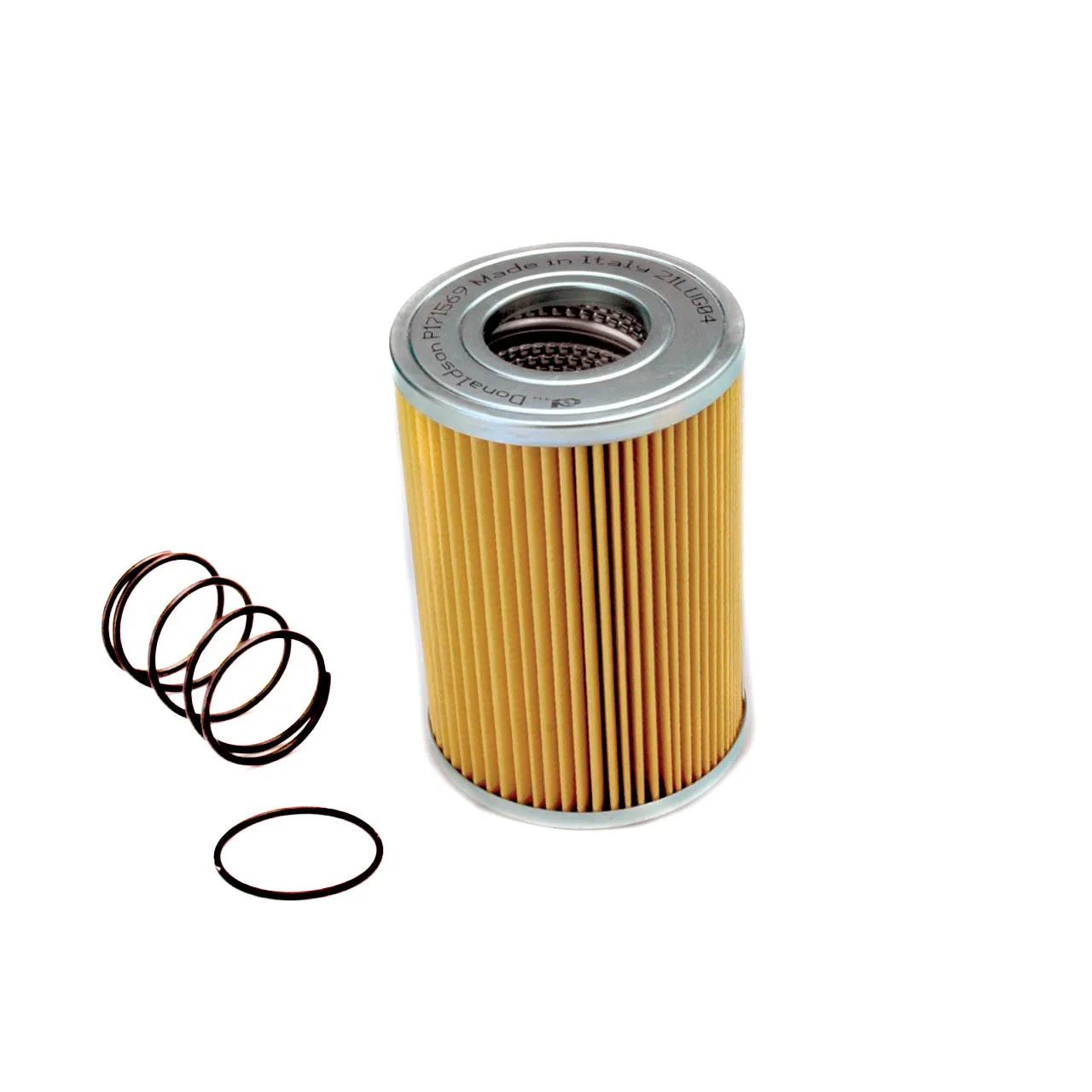

Hydraulic, Cartridge L: 8 in, OD: 5,52 in, ID: 2,58 in
#DONP171569
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 21.76 psi (1.5 bar) |
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 1000 | 23 Micron |
| Efficiency Beta 1000 (Micron) | 23 Micron |
| Efficiency Beta 2 | 7 Micron |
| Efficiency Beta 2 (Micron) | 7 Micron |
| Inner Diameter | 2.58 in (65.6 mm) |
| Length | 8 in (20.32 cm) |
| Outer Diameter | 5-33/64 in (14.02 cm) |
| Length Range | 8 to 8.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P171569 |
| R27C10CB |
| K070030 |
| K070084 |
| K070120 |
| K070150 |
| K070180 |
| K070186 |
| K070216 |
| K070222 |
| K070305 |
| K070337 |
| K070378 |
| K070382 |
| K070408 |
| K070429 |
| K070437 |
| K070513 |
| CR5001 |
| R160C10B |
| TIE102 |
| HY12109 |
| HY9362 |
| 2202600 |
| Z82178 |
| 8140098 |
| D10500AN |
| DME6A |
| DTE6A |
| 45017745 |
| 71314572 |
| L01930707 |
| 1930707 |
| 510665208 |
| 140056 |
| 8200199 |
| 1511029 |
| 1612999 |
| SQC00054 |
| TE835 |
| 1002036 |
| 890012 |
| 00890012 |
| 2191-P171569 |
| DONP171569 |
| MF0062380 |
| MF4002P10NBP01 |
| PT9183 |
| DN P171569 |
| DN P171569 |
