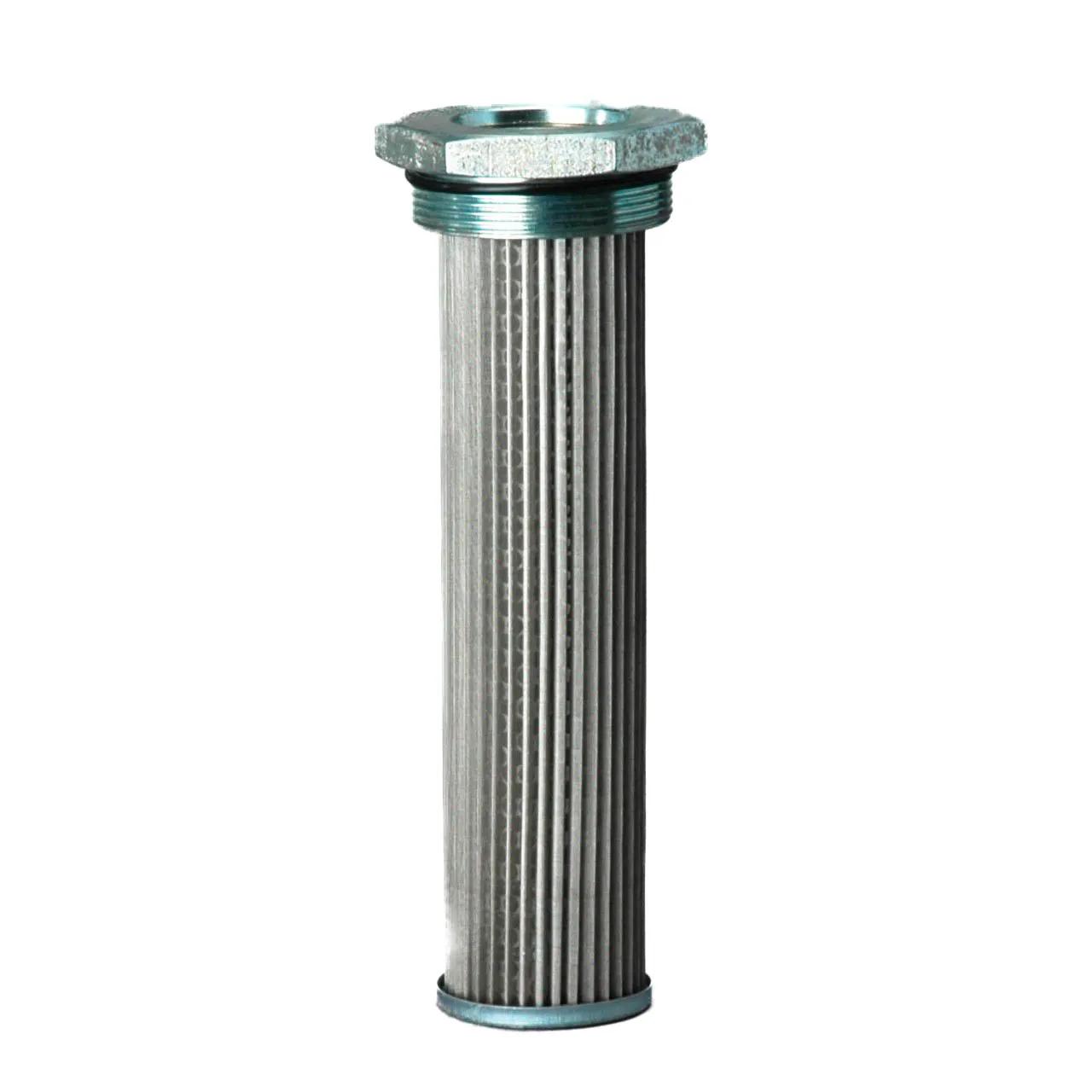

Hydraulic, Cartridge L: 9,05 in, Thread : 1 5/8-12 UN , OD: 2,12 in
#DONP562252
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 5.81 psi (0.4 bar) |
| Diameter Range | 2 to 2.99 in |
| Efficiency Beta 2 | 149 Micron |
| Efficiency Beta 2 (Micron) | 150 Micron |
| Length | 9-3/64 in (22.99 cm) |
| Outer Diameter | 2-1/8 in (5.41 cm) |
| Length Range | 9 to 9.99 in |
| Style | Strainer |
| Thread Size | 1 5/8-12 UN |
Interchanges & Equivalent parts:
| P562252 |
| STM25100RV5 |
| DN P562252 |
| 2191-P562252 |
| DONP562252 |
| HTMSSAE20100RV3 |
| F44C150B5 |
