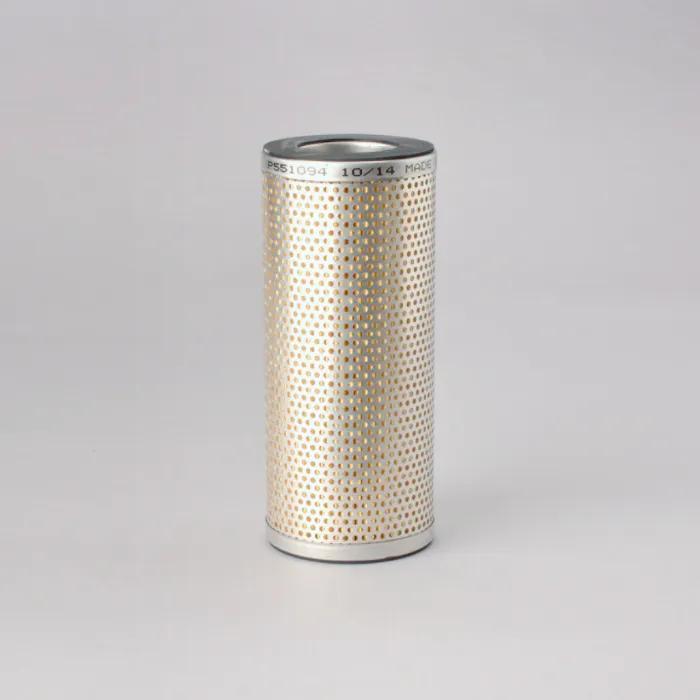

Hydraulic, Cartridge L: 9,14 in, OD: 4 in, ID: 2,3 in
#DONP551094
Product Overview
We offer a wide range of filters that are specifically designed to perform in a broad array of hydraulic applications. Our standard filters include technology that's designed to consistently meet required specifications – and your expectations. Many filters offer a choice of standard or high-performance alternatives. Choose the one that's right for your application – based upon your fluid characteristics and your efficiency requirements.
Specifications
| Diameter Range | 4 to 4.99 in |
| Efficiency Beta 1000 | 26 Micron |
| Efficiency Beta 2 | 9 Micron |
| Gasket ID | 2.3 in (58.5 mm) |
| Gasket OD | 3.86 in (98.1 mm) |
| Inner Diameter | 2.3 in (58.5 mm) |
| Length | 9-9/64 in (23.22 cm) |
| Outer Diameter | 4 in (10.16 cm) |
| Overall Length | 9.26 in (235.3 mm) |
| Length Range | 9 to 9.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P551094 |
| 1167 |
| 1R0773 |
| 51163 |
| 51167 |
| 551167 |
| 85167 |
| 92167 |
| HF35010 |
| HF35010FLG |
| PT9555 |
