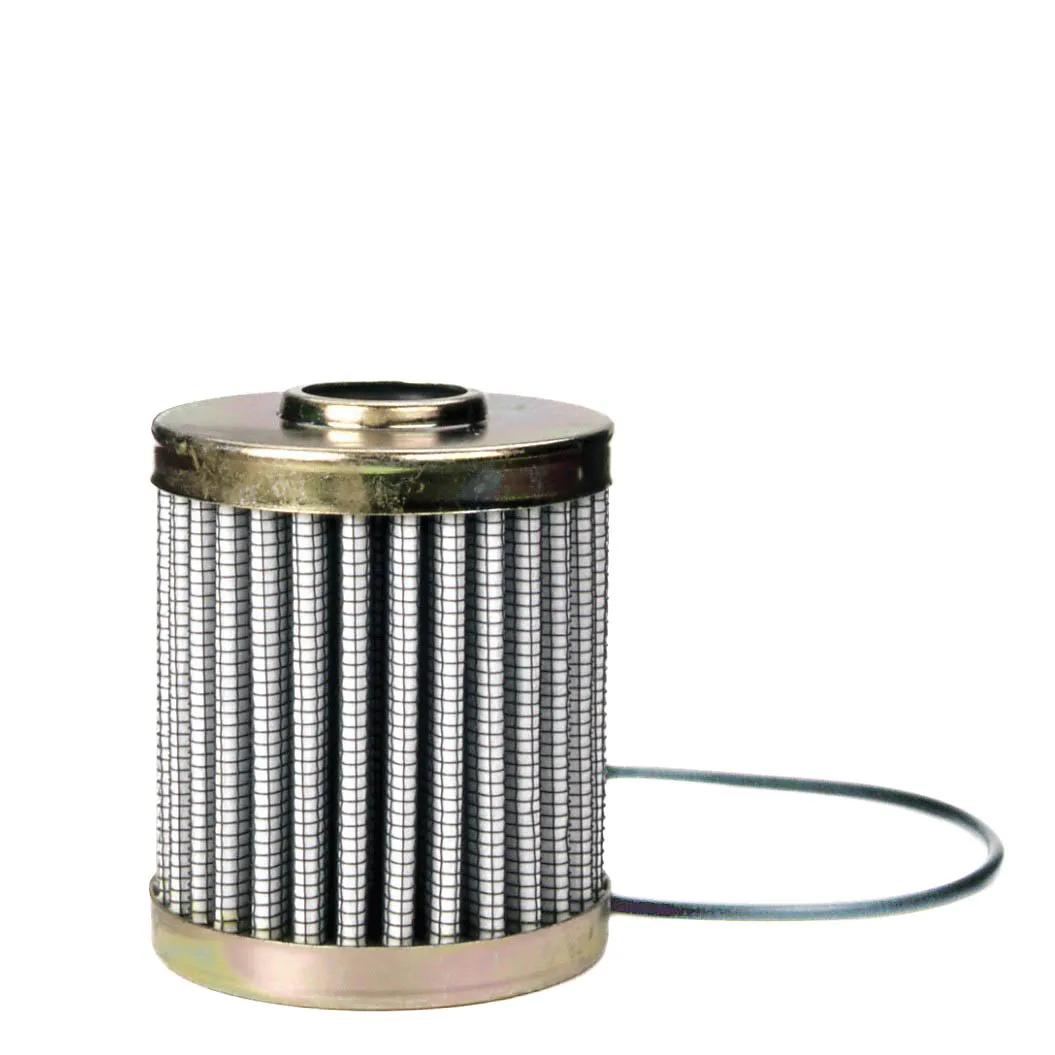

Hydraulic, Cartridge L: 9,21 in, OD: 2,9 in, ID: 1,24 in
#DONP567017
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 2 to 2.99 in |
| Efficiency Beta 1000 | 5 Micron |
| Efficiency Beta 1000 (Micron) | 5 Micron |
| Inner Diameter | 1.24 in (31.5 mm) |
| Length | 9-13/64 in (23.37 cm) |
| Outer Diameter | 2-29/32 in (7.39 cm) |
| Overall Length | 9.23 in (234.5 mm) |
| Length Range | 9 to 9.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP27L83MB |
| HP27L83MV |
| P567017 |
| AFKOVL93B3 |
| P173031 |
| DT027025UM |
| CHP272A03NA |
| 270L220A |
| 270Z220A |
| 270Z220H |
| 270L220H |
| 270L2FFH |
| 270Z2FFH |
| 930Z201 |
| 14600803V |
| 50093 |
| D921G03A |
| FC5010F003BS |
| FC5010F003VS |
| FC5010F003XS |
| FC5010Q003BS |
| FC5010Q003XS |
| 60208D03BN |
| H270Z2003BN |
| 2077108 |
| 60208D03BNV |
| H270Z2003BNV |
| MP10304 |
| MP3900 |
| 270L2FFA |
| 270Z2FFA |
| FC5010Q003VS |
| G03380 |
| 14600803 |
| V0272B2C03 |
| V0272V2C03 |
| E0272B2C03 |
| E0272V2C03 |
| BE270803A |
| BE270803AV |
| DE0272B2C03 |
| DE0272V2C03 |
| BE27L83MB |
| BE27L83MV |
| F270030GFB |
| F270030GFV |
| F270A032 |
| MP10304P01 |
| SBF2702Z3B |
