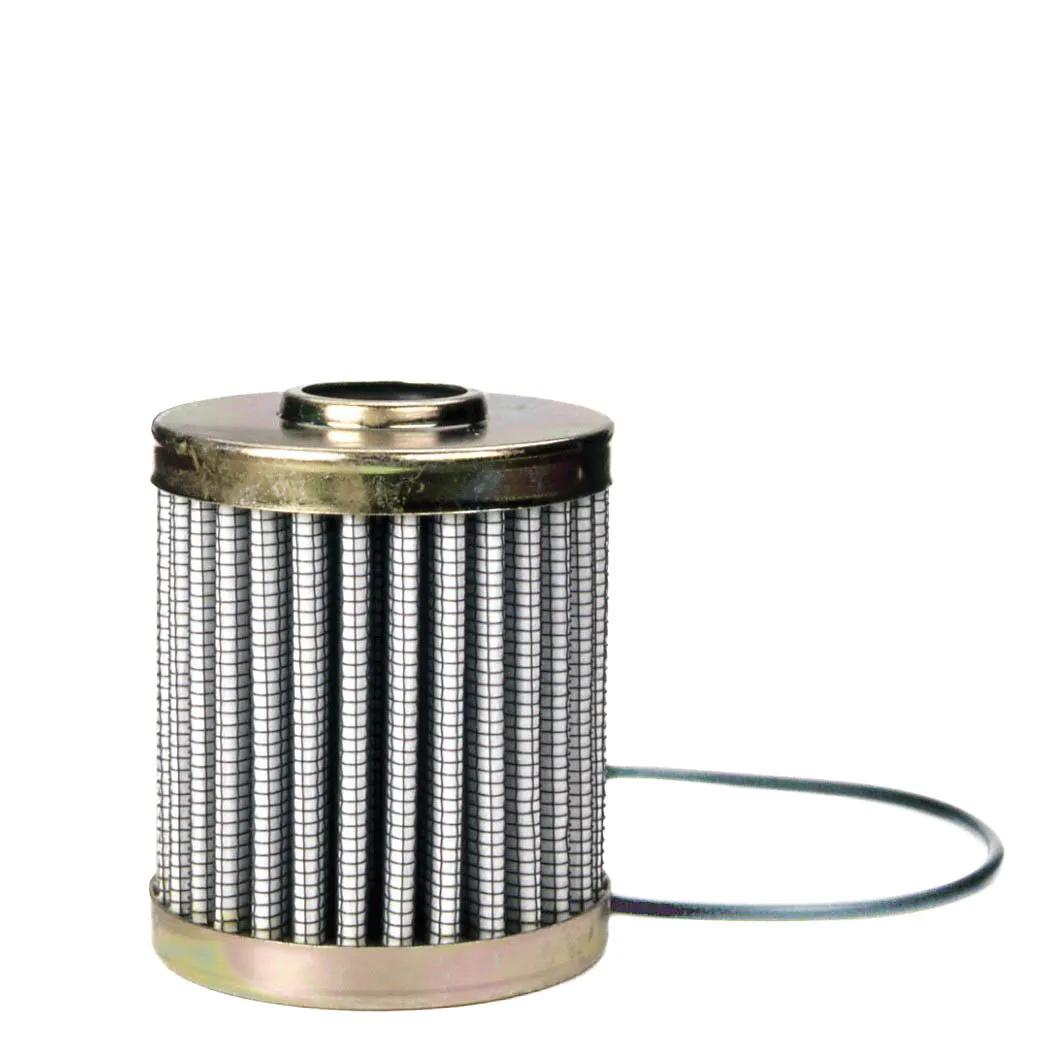

Hydraulic, Cartridge L: 9,21 in, OD: 2,9 in, ID: 1,24 in
#DONP567018
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 2 to 2.99 in |
| Efficiency Beta 1000 | 8 Micron |
| Efficiency Beta 1000 (Micron) | 8 Micron |
| Inner Diameter | 1.24 in (31.5 mm) |
| Length | 9-13/64 in (23.37 cm) |
| Outer Diameter | 2-29/32 in (7.39 cm) |
| Overall Length | 9.23 in (234.5 mm) |
| Length Range | 9 to 9.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP27L86MB |
| HP27L86MV |
| P567018 |
| 40851 |
| DT027028UM |
| CHP272A06NA |
| 270L221A |
| 270Z221A |
| 270Z221H |
| 270L201H |
| 270L221H |
| 270Z201H |
| 14600806V |
| 50094 |
| D921G06A |
| FC5010F005BS |
| FC5010F005VS |
| 60208D05BN |
| H270Z2005BN |
| 60208D05BNV |
| H270Z2005BNV |
| MP10305 |
| MP4027 |
| 270L201A |
| 270Z201A |
| 935206Q |
| FC5010Q005VS |
| 14600806 |
| V0272V2C05 |
| BE270806A |
| BE270806AV |
| DE0272B2C05 |
| DE0272V2C05 |
| FP134177 |
| BE27L86MB |
| BE27L86MV |
| F270030HFB |
| F270030HFV |
| F270A062 |
| 02062139 |
| 270-Z-221H |
| E0272B2C05 |
| E0272V2C05 |
| FC5010F005XS |
| FC5010Q005BS |
| FC5010Q005XS |
| SBF2702Z5B |
| 2062139 |
