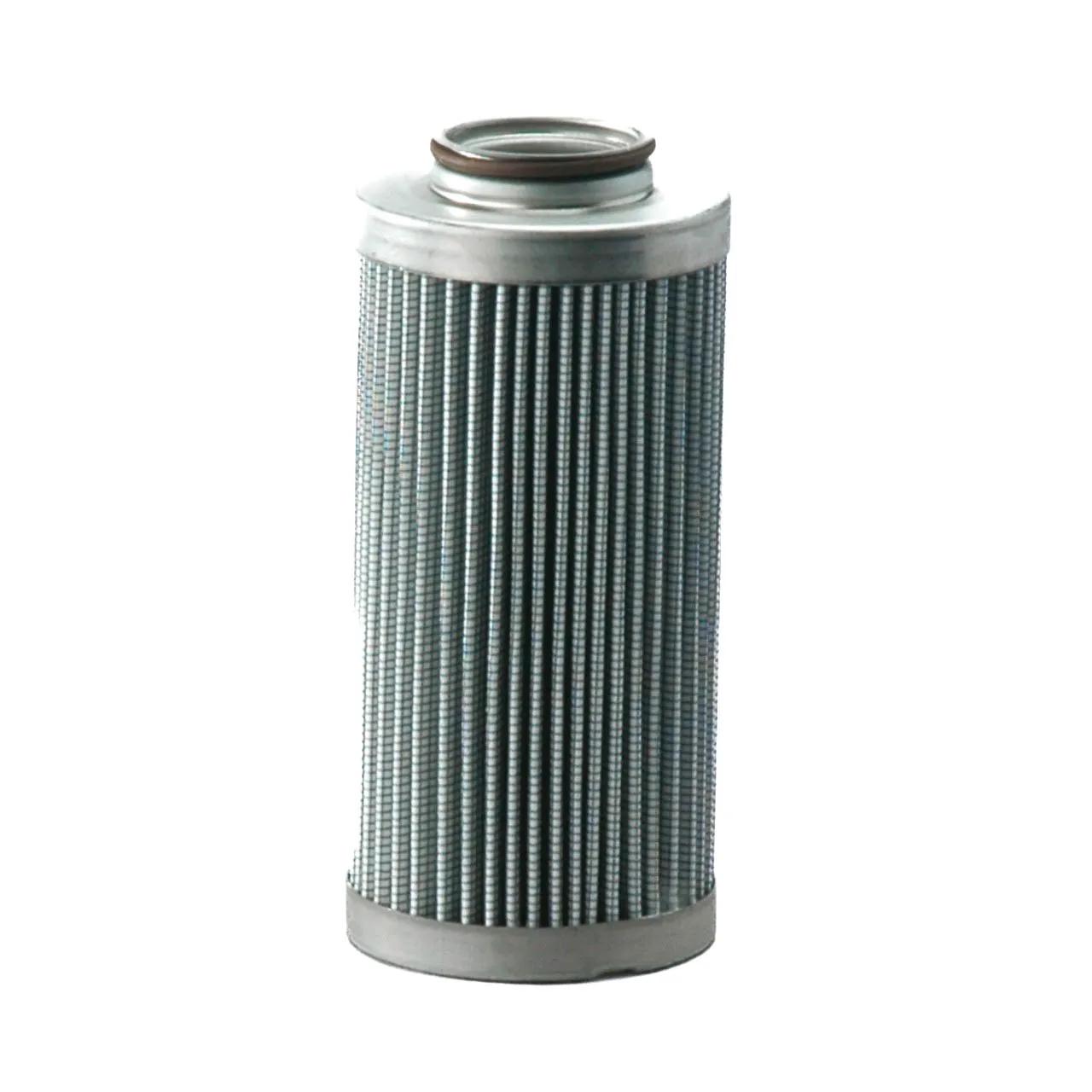

Hydraulic, Cartridge L: 9,25 in, OD: 2,44 in, ID: 1,02 in
#DONP567048
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 2 to 2.99 in |
| Efficiency Beta 1000 | 23 Micron |
| Efficiency Beta 1000 (Micron) | 23 Micron |
| Inner Diameter | 1.02 in (26 mm) |
| Length | 9-1/4 in (23.5 cm) |
| Outer Diameter | 2-7/16 in (6.2 cm) |
| Overall Length | 9.63 in (244.7 mm) |
| Length Range | 9 to 9.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HP170L1025MB |
| P567048 |
| DT25P225UM |
| D721G25AV |
| MP3828 |
| HC2256FDT10H |
| HC2256FMT10H |
| 925834 |
| 925835 |
| GO1318 |
| SBF1050Z25V |
| 757051 |
| HC2256FKT10H |
| HC2256FCT10H |
| HC2256FHT10H |
| D02B25GAV |
| 933136Q |
| 57888 |
| HP170L1025MV |
