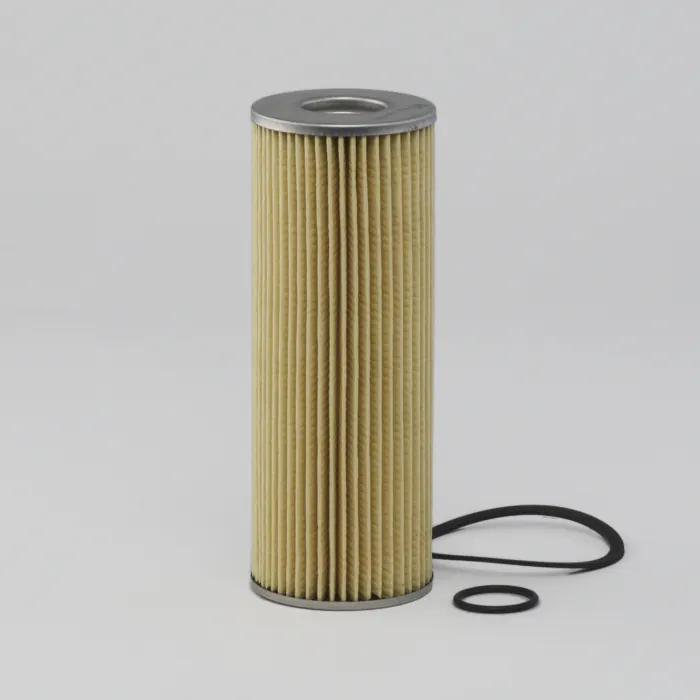

Hydraulic, Cartridge L: 9,26 in, OD: 3,46 in, ID: 1,41 in
#DONP550696
Product Overview
Hydraulic filter, cartridge
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 15.96 psi (1.1 bar) |
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 2 | 22 Micron |
| Efficiency Beta 2 (Micron) | 22 Micron |
| Inner Diameter | 1.41 in (35.9 mm) |
| Length | 9-17/64 in (23.55 cm) |
| Outer Diameter | 3-29/64 in (8.76 cm) |
| Overall Length | 6.12 in (155.5 mm) |
| Length Range | 9 to 9.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P550696 |
| 1127 |
| 51127 |
| 121020 |
| PT375 |
| 85127 |

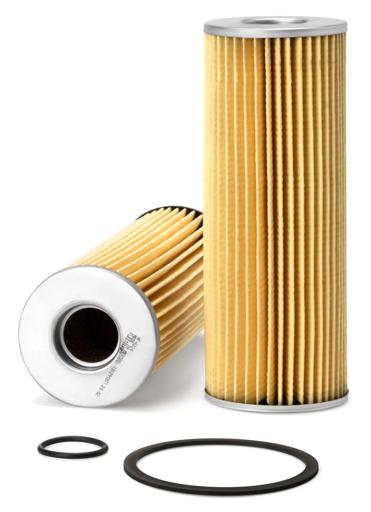

| HF6224 |
| HFR86224 |
| C7057 |
| LF156 |
| SH56274 |
| L604 |
| LP2320 |
| H9011X |
| H50045 |
| L50042 |
| L50043 |
| OF20C |
| OF4 |
| OF4C |
| OF4F |
| 92127 |
| K0059184 |
| 86017005 |
| V62075 |
| 16027 |
| 36169 |
| 62075 |
| V36169 |
| HF550696 |
| WGH6224 |
| FIL1127 |
| DN P550696 |
| DN P550696 |
| 2191-P550696 |
| DONP550696 |
| HF6224FLG |
