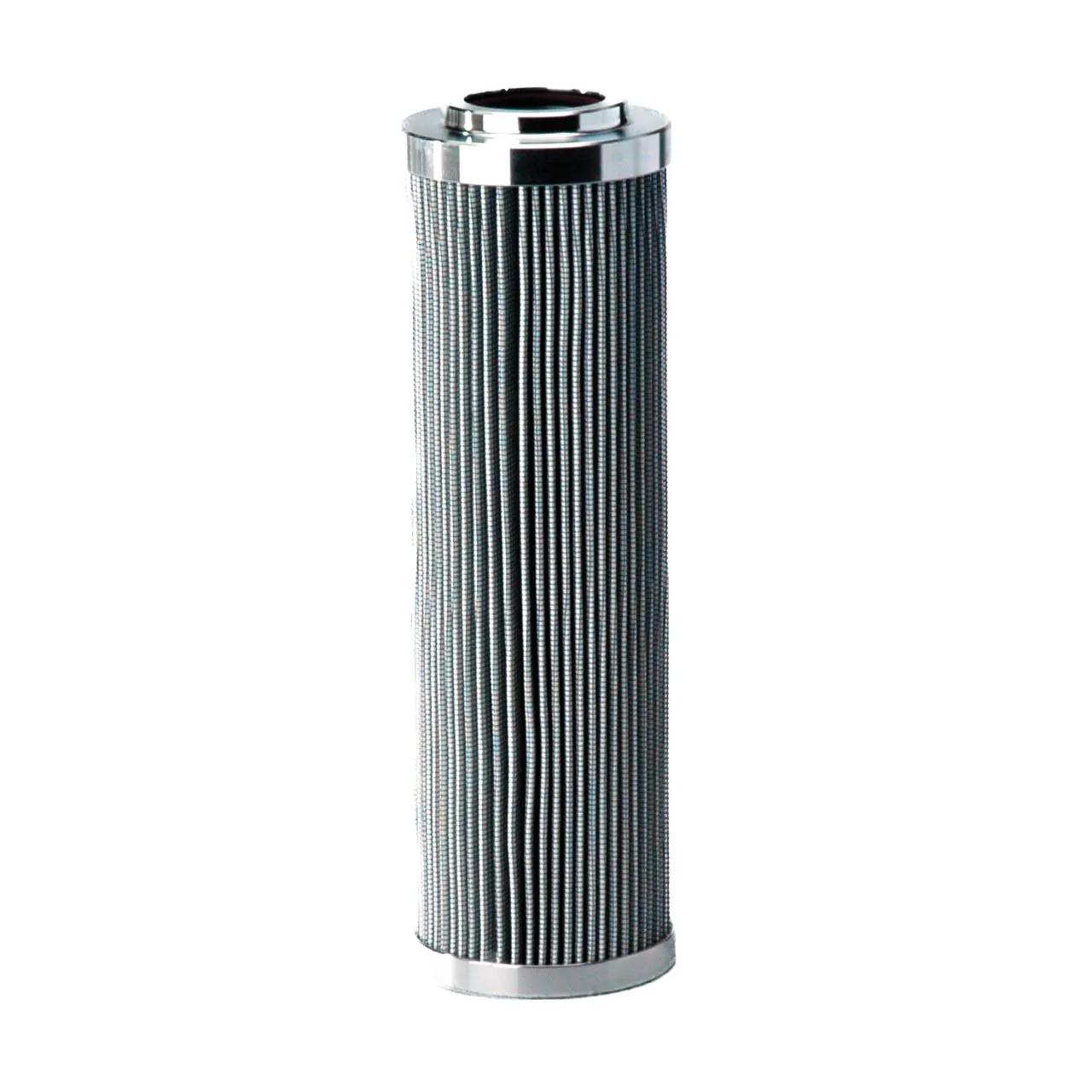

Hydraulic, Cartridge L: 9,31 in, OD: 2,87 in, ID: 1,51 in
#DONP567074
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 2 to 2.99 in |
| Efficiency Beta 1000 | 8 Micron |
| Efficiency Beta 1000 (Micron) | 8 Micron |
| Inner Diameter | 1.51 in (38.4 mm) |
| Length | 9-5/16 in (23.65 cm) |
| Outer Diameter | 2-7/8 in (7.32 cm) |
| Overall Length | 9.56 in (242.9 mm) |
| Length Range | 9 to 9.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| HPVL96MB |
| HPVL96MV |
| P567074 |
| DTV18UM |
| FLK0212119 |
| 942147Q |
| 9VZ5 |
| 9VZ5V |
| 9V3 |
| 9V3V |
| 9VS3 |
| 9VS3V |
| 16470906 |
| 16470906V |
| 429475 |
| BEVL96MB |
| BEVL96MV |
| 7604673 |
| 57142 |
