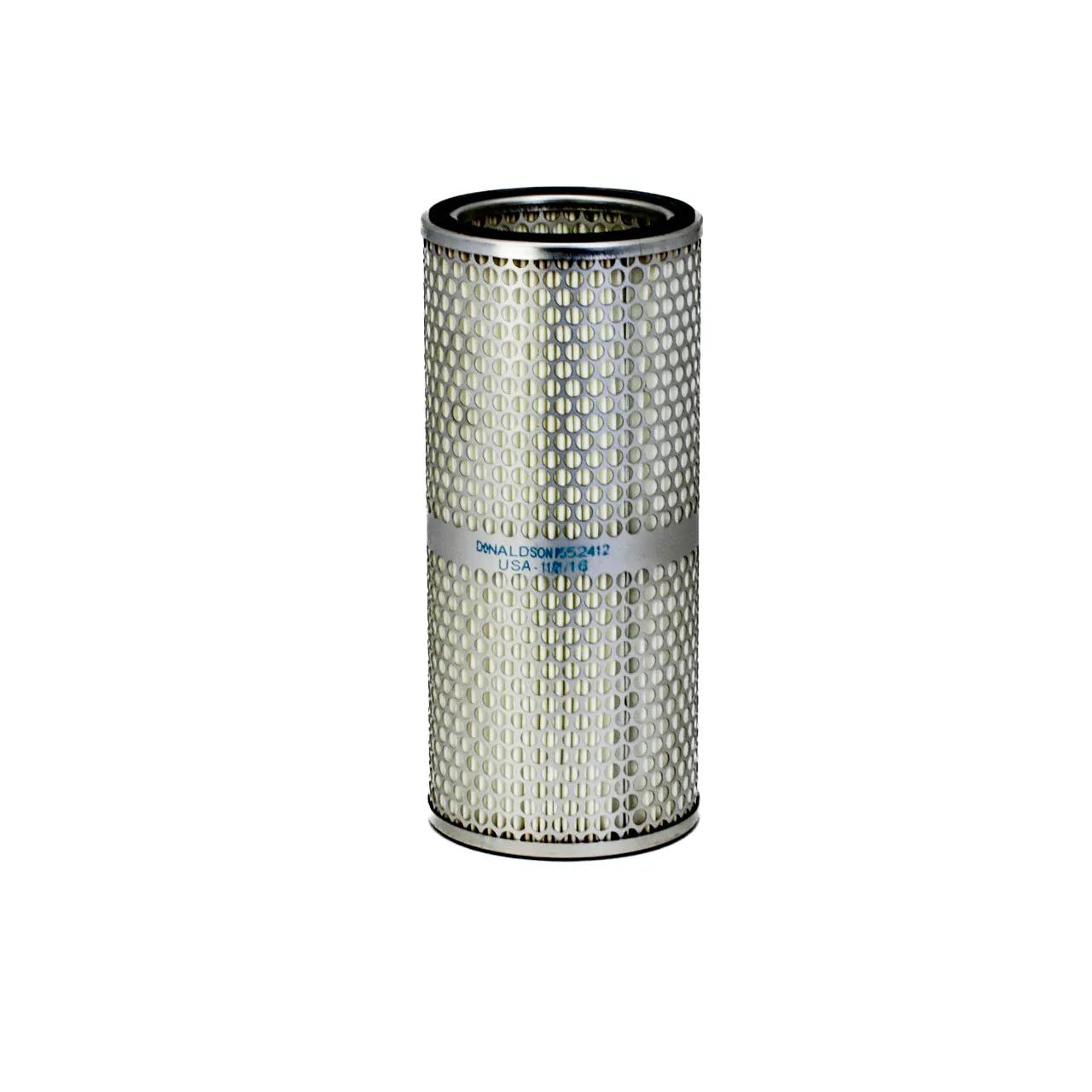

Hydraulic, Cartridge L: 9,57 in, OD: 4,25 in, ID: 3,12 in
#DONP552412
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 4 to 4.99 in |
| Efficiency Beta 2 | 61 Micron |
| Efficiency Beta 2 (Micron) | 61 Micron |
| Gasket ID | 3.44 in (87.4 mm) |
| Gasket OD | 4 in (101.6 mm) |
| Inner Diameter | 3.12 in (79.3 mm) |
| Length | 9-9/16 in (24.28 cm) |
| Outer Diameter | 4-1/4 in (10.8 cm) |
| Length Range | 9 to 9.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P552412 |
| 1436 |
| 51436 |
| R90C40GV |
| PT579 |
| 85436 |
| AF1957 |

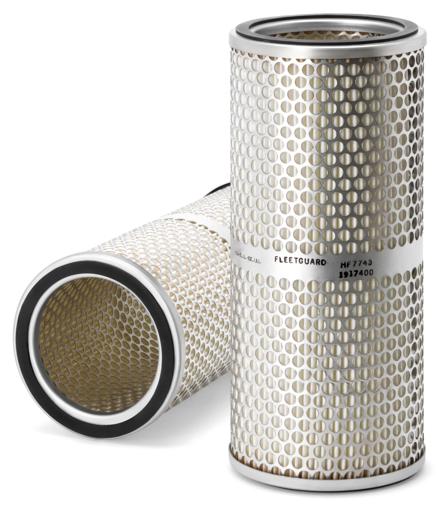

| HF7743 |
| AFR81957 |
| HFR87743 |
| C7304 |
| HF879 |
| L436 |
| 3765C |
| 8051 |
| 8051C |
| 8544 |
| 8644 |
| 8644C |
| 8646 |
| 8646C |
| 922785 |
| PM6053 |
| PF2168 |
| 92436 |
| 493101 |
| 86671045 |
| D87282A |
| P87282A |
| HF552412 |
| WGA826 |
| FIL1436 |
| 2191-P552412 |
| DONP552412 |
| HF7743FLG |
| DN P552412 |
| DN P552412 |
