Hydraulic, Cartridge L: 9,89 in, OD: 5,52 in, ID: 2,56 in
#DONP171573
Product Overview

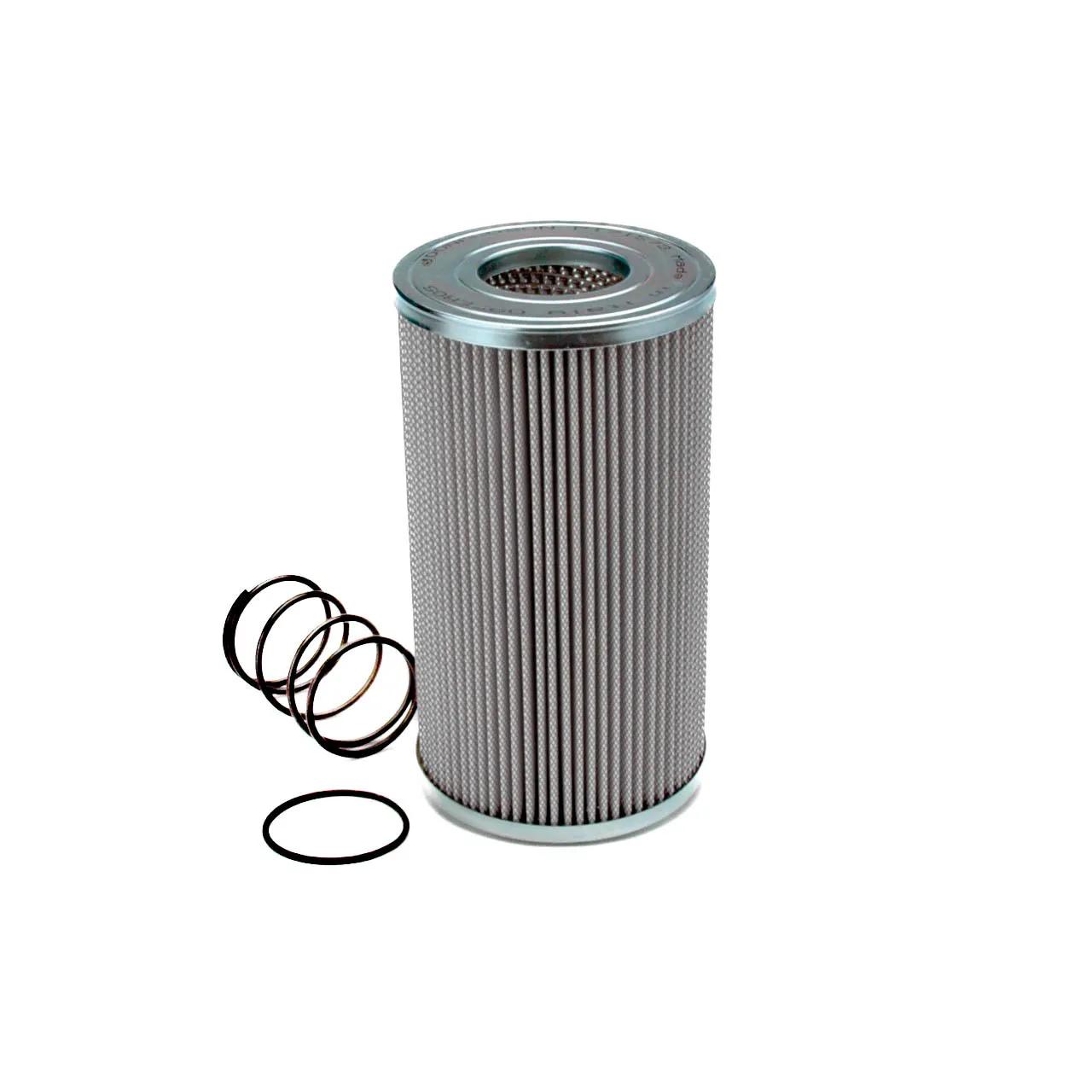

HYDRAULIC FILTER, CARTRIDGE
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1,5 bar |
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 1000 | 11 Micron |
| Inner Diameter | 2.56 in (65.1 mm) |
| Length | 9-57/64 in (25.12 cm) |
| Outer Diameter | 5-33/64 in (14.02 cm) |
| Series | FIK |
| Length Range | 9 to 9.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| P171573 |
| PT9261MPG |
| K070034 |
| K070046 |
| K070088 |
| K070100 |
| K070277 |
| K070340 |
| K070364 |
| K070467 |
| CR60002 |
| R164G10B |
| HD13009 |
| HY12113 |
| D10600ANMG |
| DRE6C |
| 510669708 |
| 140061 |
| 140081 |
| 6050105 |
| E604A0105 |
| E605A0105 |
| RE160FD1 |
| CR224F10R |
| 1511042 |
| SQC00126 |
| 2246001 |
| WGH9580 |
| DN P171573 |
| DN P171573 |
| 2191-P171573 |
| CR600/02 |
| DONP171573 |
| HF35302 |
| HF35302FLG |
| MF4003A10HB |
| MF4003A10HBP01 |
