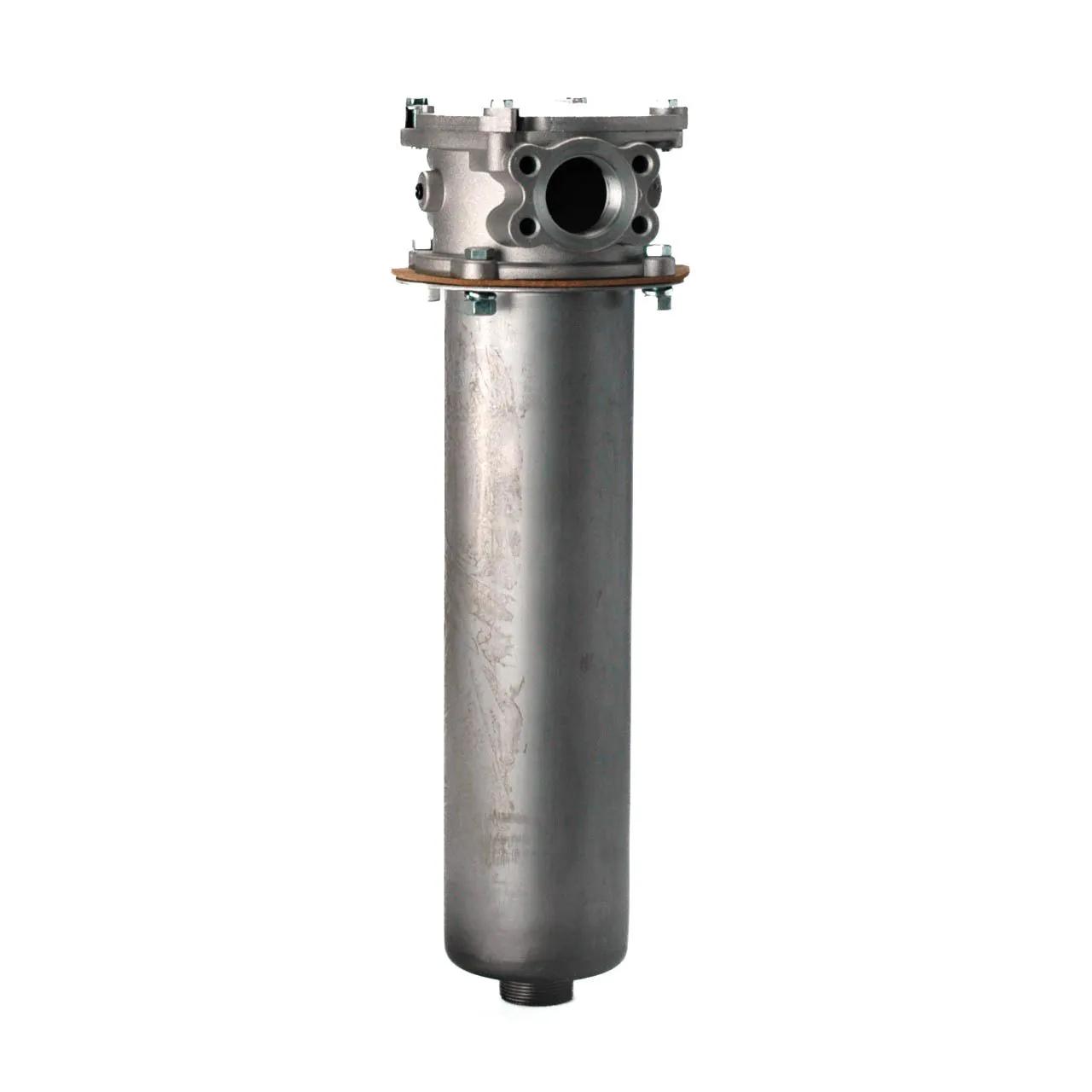

Hydraulic Filter Assembly with SAE-24 Inlet and 1-1/2 in NPT Outlet
#DONP574233
Product Overview
Hydraulic filter assembly designed for contamination control in hydraulic systems, featuring Donaldson's reliable filtration technology for superior performance across a wide range of applications.Hydraulic Filter Assembly, Yes Bypass Valve, Bypass Valve Setting: 25 psi, SAE-24 Inlet, 1-1/2 in NPT Outlet, WL16, 22.52 in L
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
- A variety of low, medium and high-pressure filter assemblies available for a wide range of applications.
- Choose between optional features for a customized assembly that best fits the needs of your specific application.
- A variety of mix and match system of heads, housings and media choices to meet your exact requirements.
- Donaldson media delivers better system protection and superior performance.
Specifications
| Bypass Valve | Yes |
| Efficiency 95% | 2 Micron |
| Efficiency Beta 20 | 15 Micron |
| Efficiency Beta 200 (Micron) | 23 Micron |
| Inlet Size | SAE-24 |
| Length | 22.52 in |
| Outlet Size | 1 1/2 NPT |
| Series | WL16 |
| Bypass Valve Setting | 25 psi |
| Product Category | Hydraulic Filter Assembly |
Interchanges & Equivalent parts:
| P574233 |
| WL161D31DB6 |
