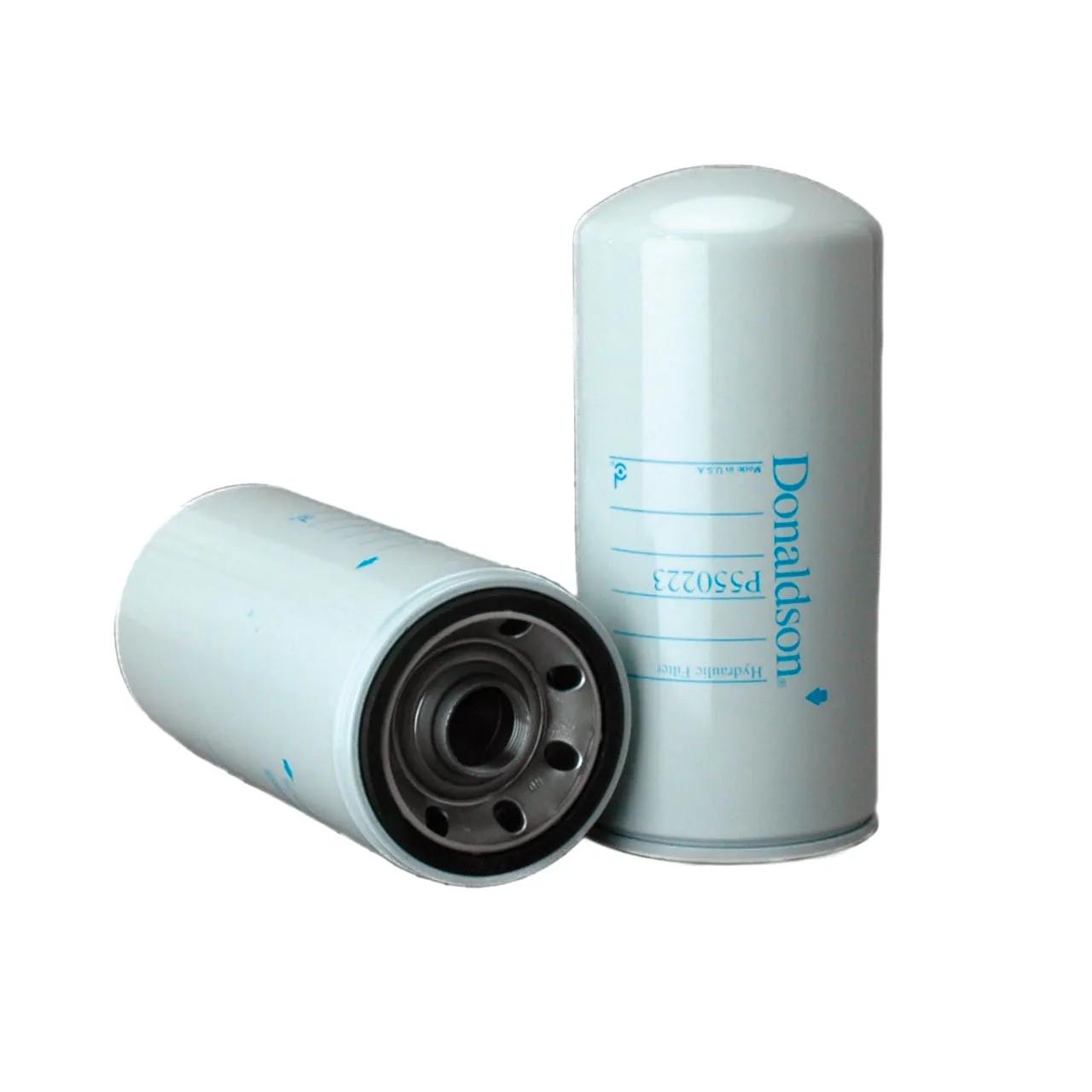

Hydraulic Filter, Spin-On L: 10,24 in, Thread : 1 5/16-12 UN , OD: 4,67 in
#DONP550223
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 4 to 4.99 in |
| Efficiency 50% | 20 Micron |
| Efficiency Beta 1000 | 26 Micron |
| Efficiency Beta 2 | 9 Micron |
| Gasket ID | 3.66 in (93 mm) |
| Gasket OD | 4.24 in (107.7 mm) |
| Length | 10-15/64 in (25.98 cm) |
| Outer Diameter | 4-43/64 in (11.86 cm) |
| Length Range | 10 to 10.99 in |
| Style | Spin-On |
| Thread Size | 1 5/16-12 UN |
Interchanges & Equivalent parts:
| ABPN10GHF6243 |
| BT359 |
| 85623 |
| LFH4223 |
| HFR86106 |
| HFR86243 |
| HFR86318 |
| HP3613 |
| P3613 |
| P3613FP |
| SH56293 |
| SN56293 |
| F223 |
| L223 |
| L423 |
| 1620744 |
| FT80 |
| 1623 |
| H50264 |
| P264 |
| HC6501 |
| HC6502 |
| SPH9702 |
| SFH0223 |
| PSH319 |
| 51623 |
| HD223 |
| PM224 |
| PMD222 |
| 14892 |
| A0223 |
| 3074045 |
| 73074045 |
| 25010643 |
| 2154 |
| 92623 |
| E5176 |
| P550233 |
| 60033088 |
| 3I1162 |
| 9Y4513 |
| 1992156 |
| 1992159 |
| M1992156 |
| T171011 |
| 31005675 |
| HSM6014 |
| 550223 |
| 510661508 |
| 1930893 |
| 73142551 |
| 97520500172 |
| 9576P550223 |
| DNP550223 |
| HS7606 |
| 3A15078 |
| HFP550223 |
| DONP550223 |
| NEOHF6243 |
| 770287 |
| F10C12ACHD223 |
| 5HA826 |
| 572062 |
| 197151 |
| 33073 |
| 33259 |
| 53125 |
| H2650596 |
| 688380 |
| HF550223 |
| 3082148 |
| 3130914 |
| 811290 |
| WGH6243 |
| ABP N10G HF6243 |
| DN P550223 |
| DN P550223 |
| 00811290 |
| 2191-P550223 |
| 25010333 |
| 25010975 |
| 25013612 |
| 28-5917 |
| 3I-1162 |
