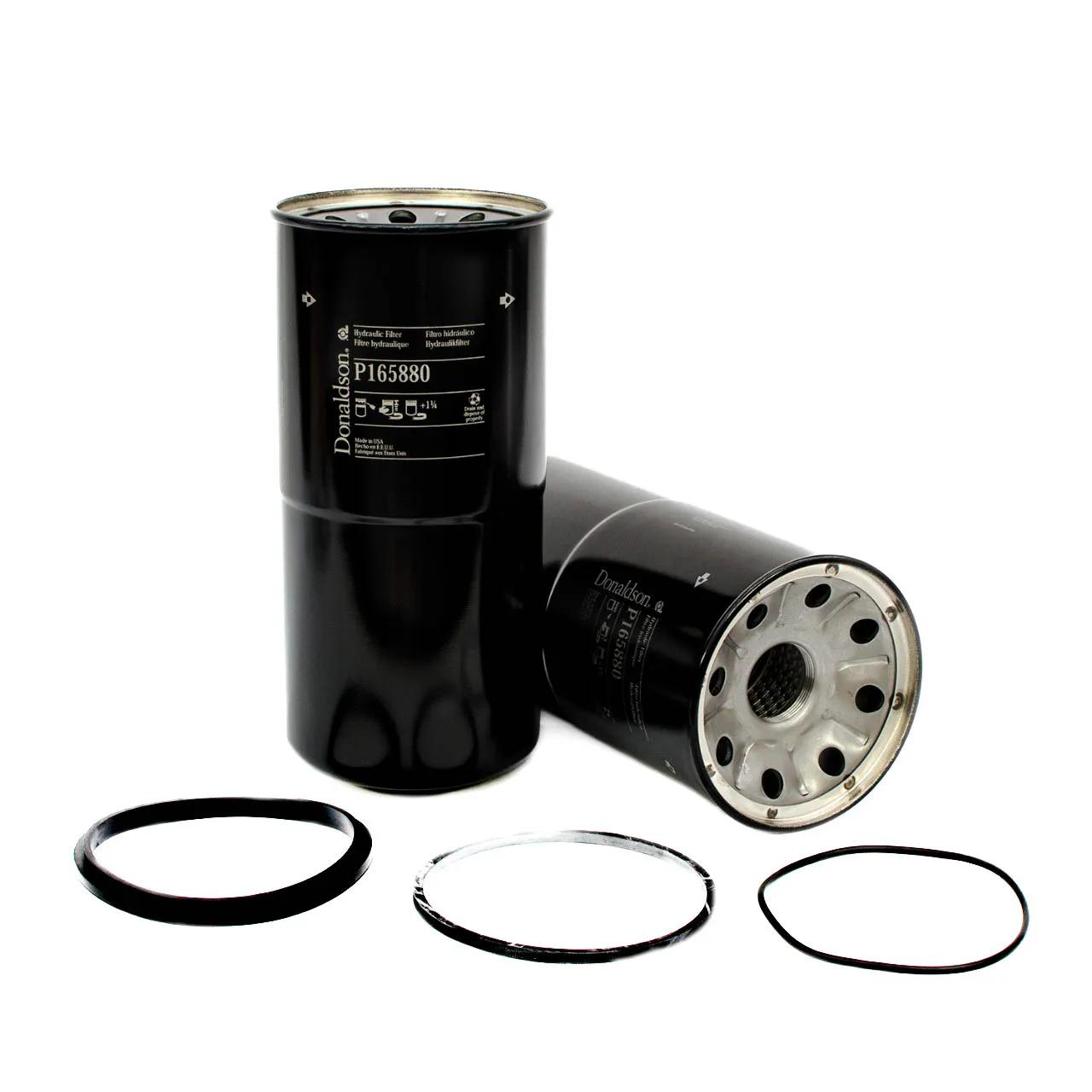

Hydraulic Filter, Spin-On L: 10,66 in, Thread : 1 1/2-16 UN , OD: 5,08 in
#DONP165880
Product Overview
Removes abrasives that could damage the hydraulic pump and other hydraulic system components
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 1000 | 50 Micron |
| Gasket ID | 4.76 in (121 mm) |
| Gasket OD | 5.04 in (128.1 mm) |
| Length | 10-21/32 in (27.08 cm) |
| Outer Diameter | 5-5/64 in (12.9 cm) |
| Series | W023. HBK05. SP50/60. SP80/90. SP100/120 |
| Length Range | 10 to 10.99 in |
| Style | Spin-On |
| Thread Size | 1 1/2-16 UN |
| Vehicle Make | Pall |
Interchanges & Equivalent parts:
| HP75L840MB |
| HP75L825MB |
| BT38810SYN |
| 70172 |
| HF6137SYN |
| SH56761 |
| MFE1601102 |
| CG150P25A |
| 1860 |
| 51860 |
| 39829627 |
| HSM6047 |
| 9576P165880 |
| 1390702 |
| 190052223 |
| 687276 |
| WGH6138 |
| FIL1860 |
| 400103 |
| CG150P25AP01 |
| DN P165880 |
| DN P165880 |
| 019005220023 |
| 2191-P165880 |
| 25012488 |
| 3I-0705 |
| 7500-8-25UM |
| 85860 |
| A45625 |
| BT38810 |
| DONP165880 |
| HC7500SUK8H |
| HF6721 |
| HF6721FLG |
| HF769 |
| LFH4915 |
| P3961 |
| WL10103 |
| BT388-10 |
| 19005220023 |
