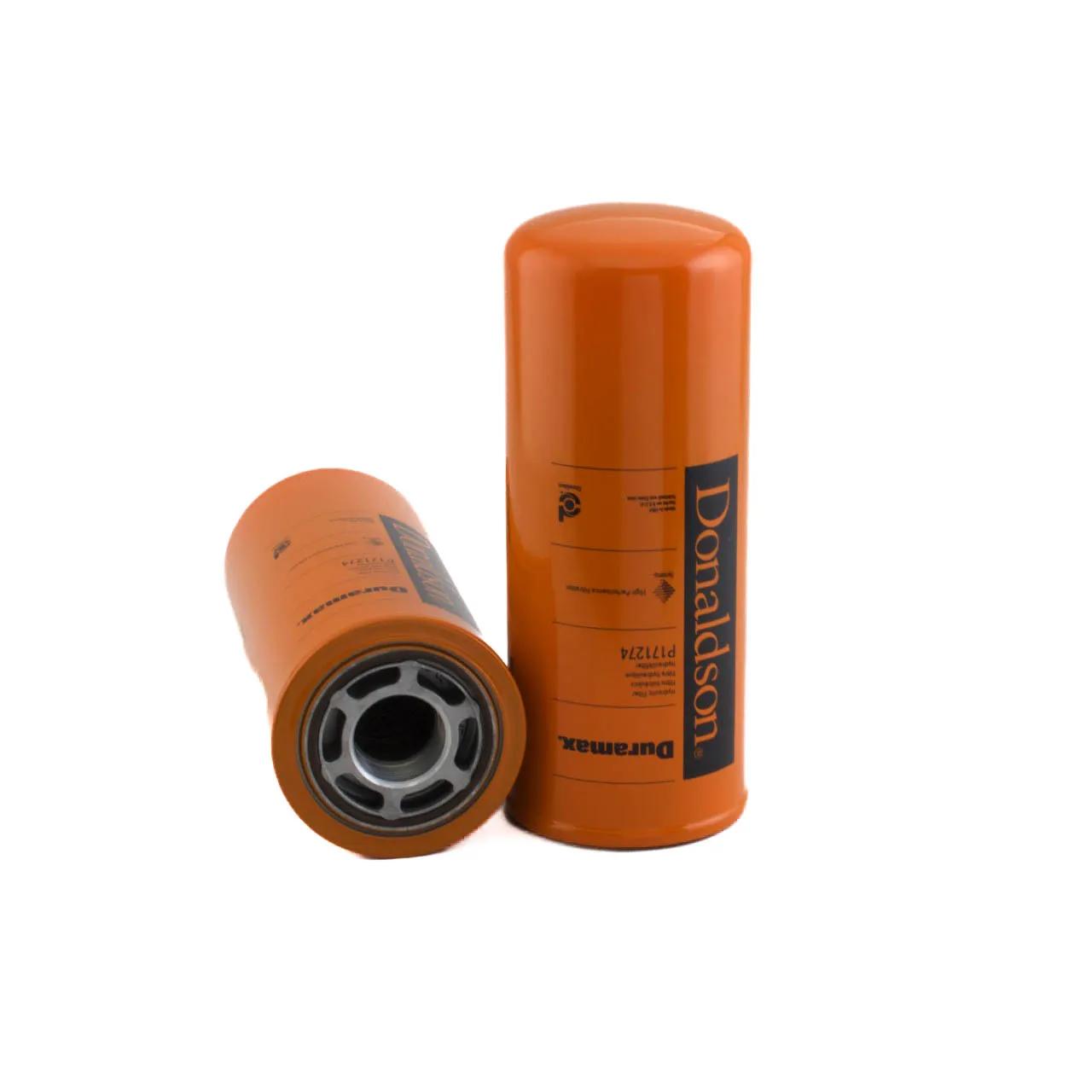

Hydraulic Filter, Spin-On L: 11,63 in, Thread : 1 3/4-12 UN , OD: 4,7 in
#DONP171274
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 4 to 4.99 in |
| Efficiency Beta 1000 | 6 Micron |
| Gasket ID | 3.11 in (79 mm) |
| Gasket OD | 3.39 in (86.2 mm) |
| Length | 11-5/8 in (29.54 cm) |
| Outer Diameter | 4-45/64 in (11.94 cm) |
| Series | HMK05/25 |
| Length Range | 11 to 11.99 in |
| Style | Spin-On |
| Thread Size | 1 3/4-12 UN |
Interchanges & Equivalent parts:
| ASR171274 |
| A20A03GV |
| A421G03V |
| A421G06V |
| 944043Q |
| 944042Q |
| EM502V3R05 |
| 86034346 |
| 51652736 |
| A20A06GV |
| DN P171274 |
| DN P171274 |
| 2191-P171274 |
| BD7-1274 |
| DONP171274 |
