Hydraulic Filter, Spin-On L: 12,25 in, Thread : 3 NPT , OD: 5 in
#DONP163435
Product Overview

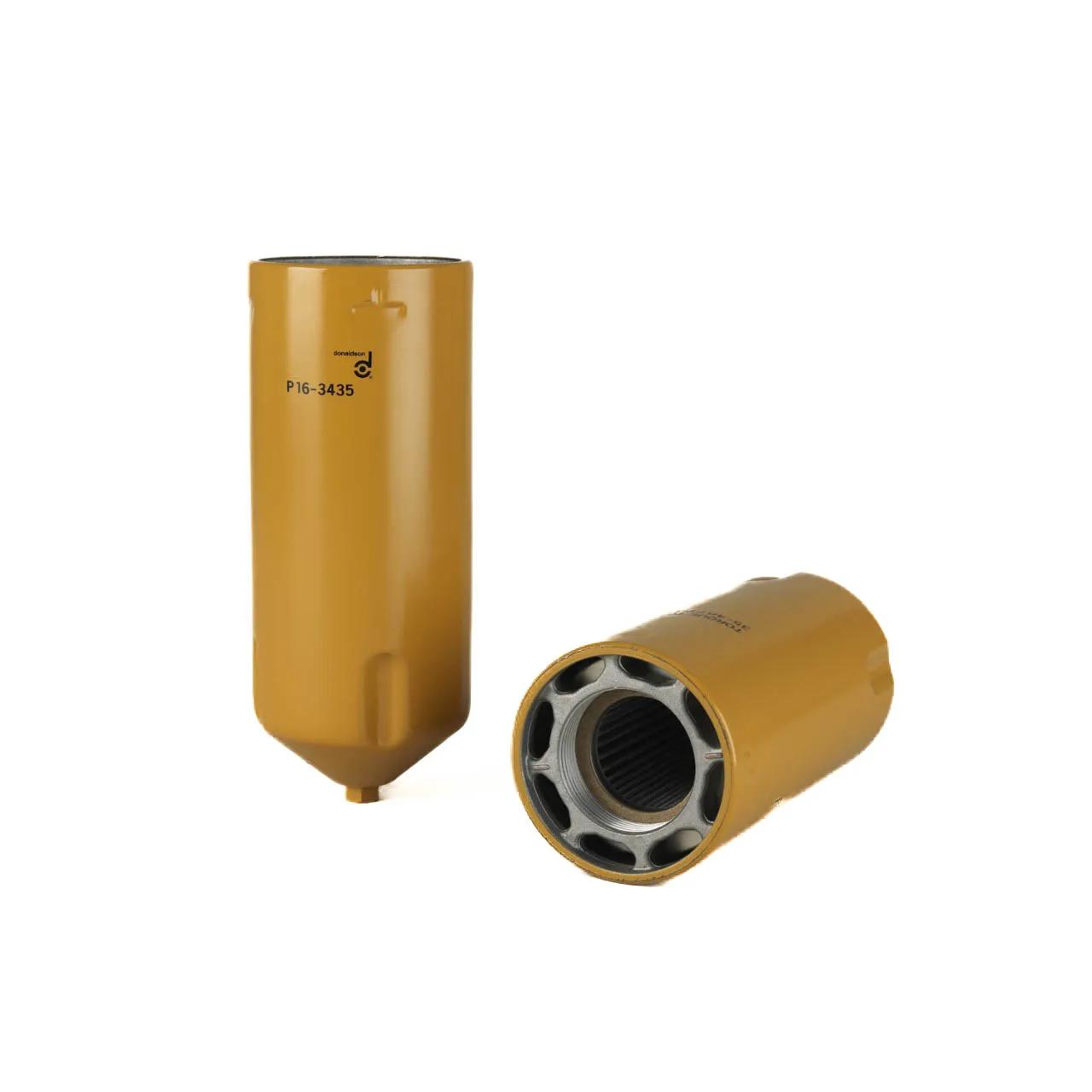

HYDRAULIC FILTER, SPIN-ON
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 1000 | 26 Micron |
| Efficiency Beta 2 | 9 Micron |
| Gasket ID | 4.49 in (114.1 mm) |
| Gasket OD | 5 in (127 mm) |
| Length | 12-1/4 in (31.12 cm) |
| Outer Diameter | 5 in (12.7 cm) |
| Length Range | 12 to 12.99 in |
| Style | Spin-On |
| Thread Size | 3 NPT |
Interchanges & Equivalent parts:
| DN P163435 |
| DN P163435 |
| 116643C2 |
| 1106643C1 |
| 1106643C2 |
| 11066443C1 |
| 1463967 |
| 2191-P163435 |
| 38511066432 |
| 3I-0555 |
| 3I0555 |
| 557802 |
| 57802 |
| 7802 |
| 84802 |
| 91802 |
| BT774 |
| DONP163435 |
| FIL7802 |
| HF35002 |
| HF937 |
| HFR835002 |
| L482 |
| LFH5071 |
| P6971 |
| P7080 |
| SH66435 |
| WGH1877 |
