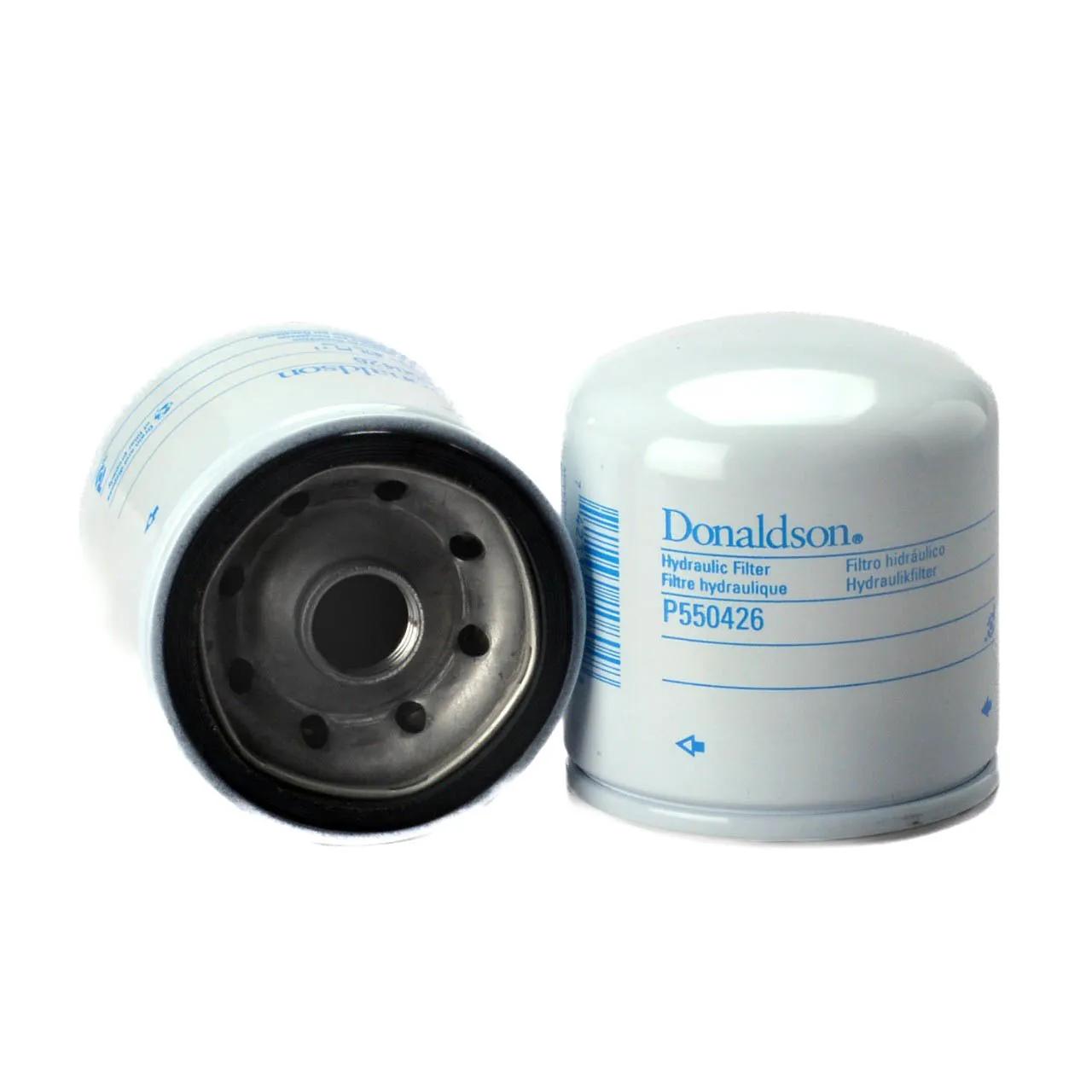

Hydraulic Filter, Spin-On L: 3,26 in, Thread : 3/4-16 UN , OD: 3,02 in
#DONP550426
Product Overview
HYDRAULIC FILTER, SPIN-ON
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 1.6 bar |
| Bypass Valve Setting LR | 1.2 bar |
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 23 Micron |
| Efficiency Beta 2 | 7 Micron |
| Gasket ID | 2.38 in (60.5 mm) |
| Gasket OD | 2.76 in (70.2 mm) |
| Length | 3-17/64 in (8.31 cm) |
| Outer Diameter | 3-1/64 in (7.67 cm) |
| Length Range | 3 to 3.99 in |
| Style | Spin-On |
| Thread Size | 3/4-16 UN |
| Vehicle Make | Zinga |
Interchanges & Equivalent parts:
| BT8323 |
| 85269 |
| HF35099 |
| HFR835099 |
| HF982 |
| SH70008 |
| SPE0710C |
| LFH5809 |
| 1269 |
| SF631018 |
| 51269 |
| BE1018 |
| AG121778 |
| 92269 |
| M330576 |
| U013FE |
| 297573 |
| 262412 |
| LP39022A |
| 1633750 |
| HF550426 |
| WGH8323 |
| DN P550426 |
| DN P550426 |
| 2191-P550426 |
| DONP550426 |
| FIL1269 |
| HP7 |
| LF3335 |
| P550426DFS |
