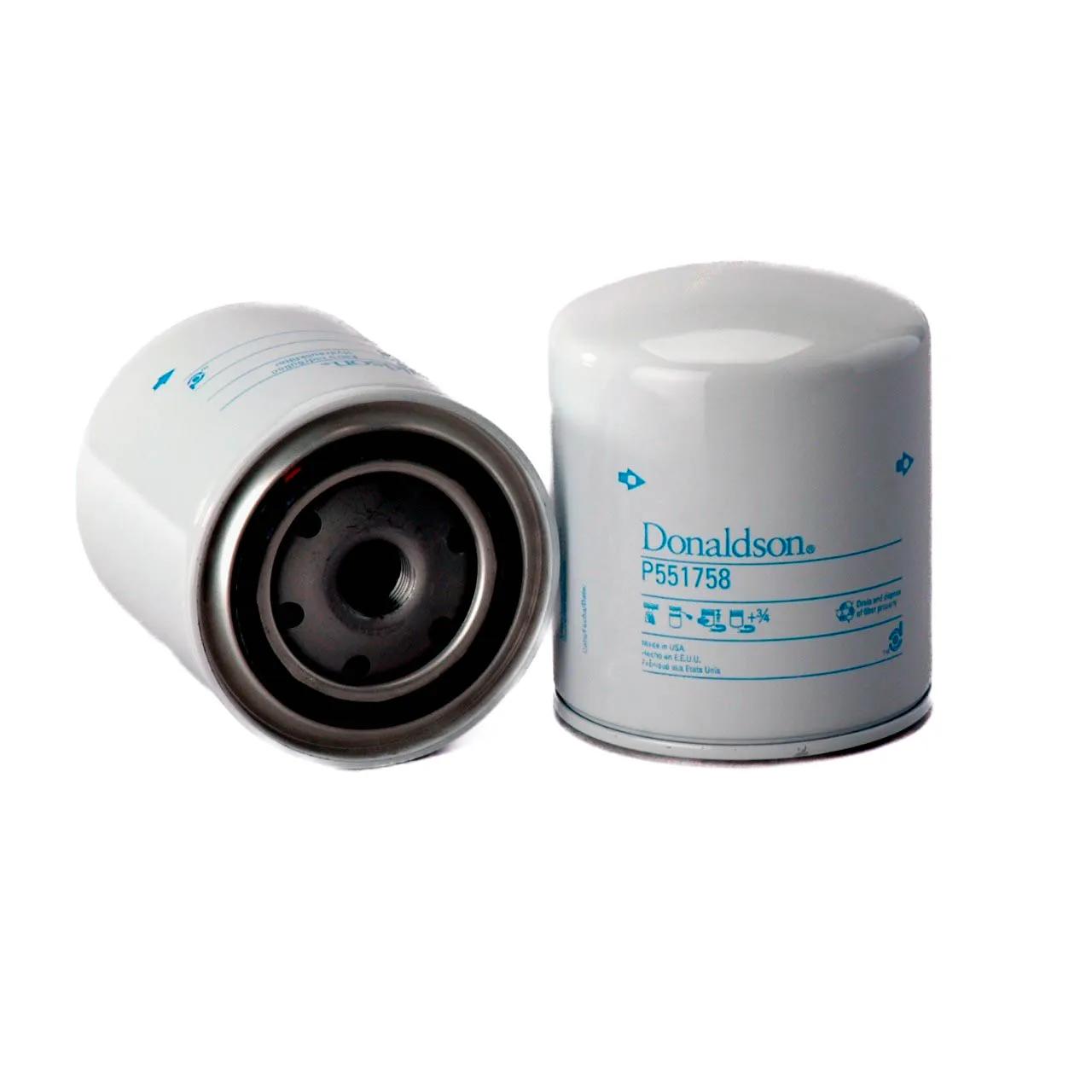

Hydraulic Filter, Spin-On L: 4,36 in, Thread : 3/4-16 UN , OD: 3,69 in
#DONP551758
Product Overview
HYDRAULIC FILTER, SPIN-ON
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1.1 bar |
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 2 | 19 Micron |
| Gasket ID | 2.46 in (62.5 mm) |
| Gasket OD | 2.83 in (71.9 mm) |
| Length | 4-23/64 in (11.07 cm) |
| Outer Diameter | 3-11/16 in (9.37 cm) |
| Length Range | 4 to 4.99 in |
| Style | Spin-On |
| Thread Size | 3/4-16 UN |
Interchanges & Equivalent parts:
| BT420 |
| 85624 |

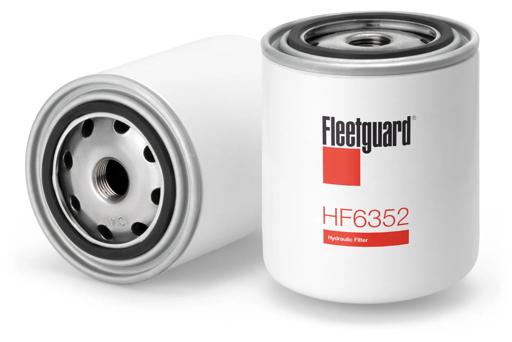

| HF6352 |
| PH3589 |
| SH56402 |
| WD10012 |
| 1624 |
| TC7918 |
| SPH9703 |
| SFT6578 |
| 51624 |
| 286225 |
| 1328692 |
| 132869210 |
| 132869212 |
| 8500002 |
| 9208210195 |
| 13505452 |
| 000016115P04 |
| 309112 |
| 972545 |
| HF551758 |
| 505966578 |
| DN P551758 |
| DN P551758 |
| 00013505452 |
| HF6352FLG |
| FP100243 |
| FIL1624 |
| 2191-P551758 |
| DONP551758 |
| HF905 |
| LFH4987 |
