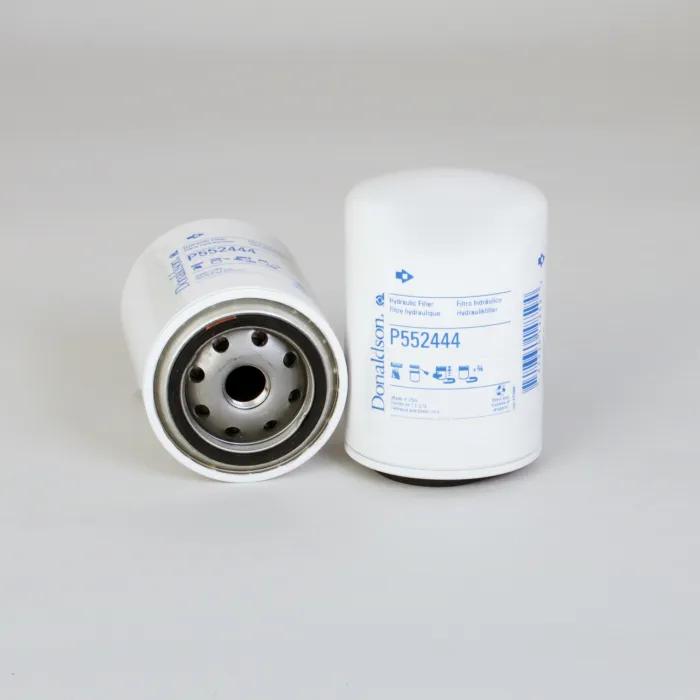

Hydraulic Filter, Spin-On L: 5,28 in, Thread : 13/16-16 UN , OD: 3,69 in

#DONP552444

Product Overview


We offer a wide range of filters that are specifically designed to perform in a broad array of hydraulic applications. Our standard filters include technology that's designed to consistently meet required specifications – and your expectations. Many filters offer a choice of standard or high-performance alternatives. Choose the one that's right for your application – based upon your fluid characteristics and your efficiency requirements.

See More
See Less

Specifications


Diameter Range 3 to 3.99 in
Efficiency Beta 2 17 Micron
Gasket ID 2.4 in (61 mm)
Gasket OD 2.83 in (71.9 mm)
Length 5-9/32 in (13.41 cm)
Outer Diameter 3-11/16 in (9.37 cm)
Length Range 5 to 5.99 in
Style Spin-On
Thread Size 13/16-16 UN

Interchanges & Equivalent parts:


P552444
1478
51478
2191-P552444
DN P552444
8040461
85478
BT438
HF813
DONP552444
See more
