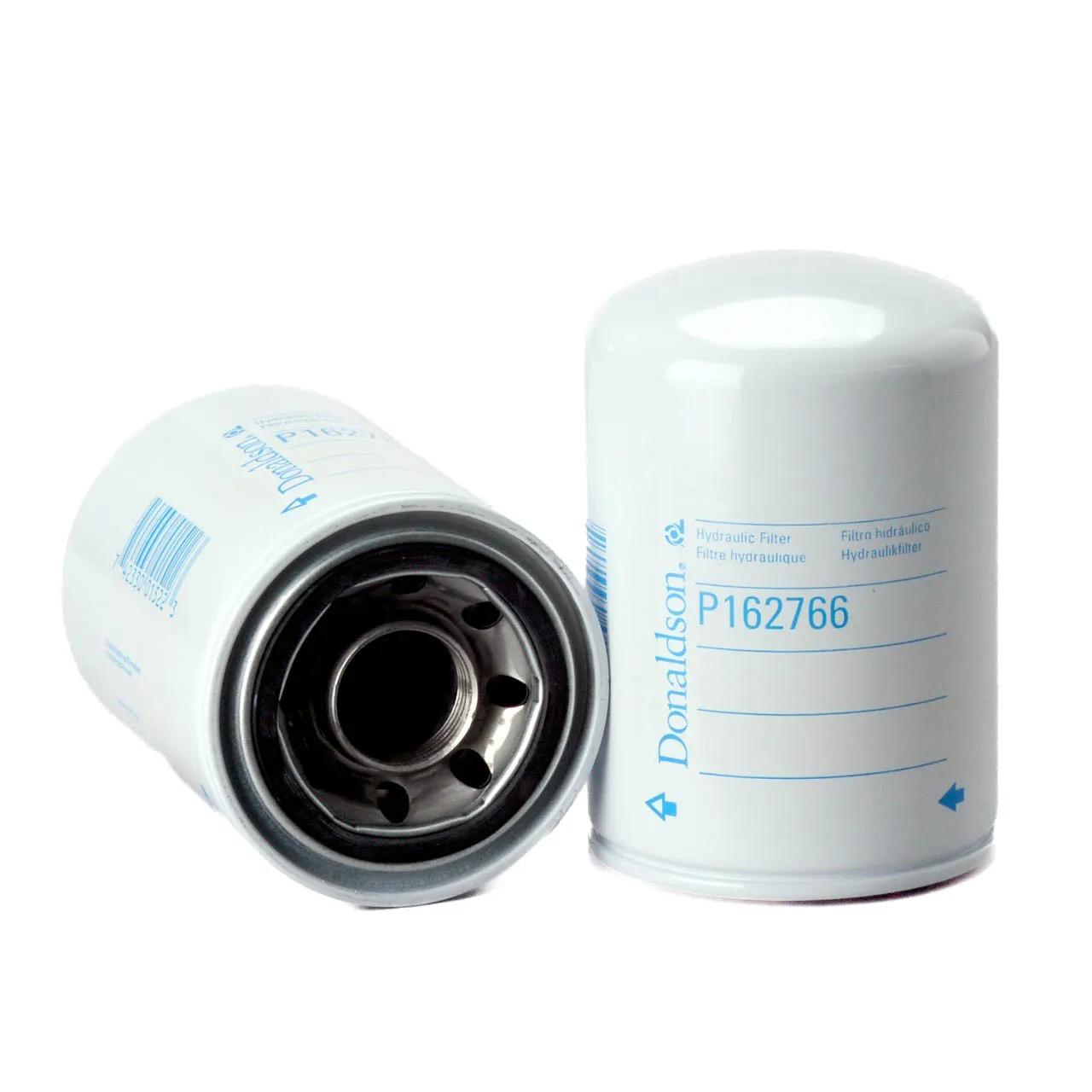

Hydraulic Filter, Spin-On L: 5,36 in, Thread : 1 1/4-12 UN , OD: 3,66 in
#DONP162766
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Application | CASE/CASE IH 574844C1 |
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 23 Micron |
| Efficiency Beta 2 | 7 Micron |
| Gasket ID | 2.48 in (63 mm) |
| Gasket OD | 2.83 in (71.9 mm) |
| Length | 5-23/64 in (13.61 cm) |
| Outer Diameter | 3-21/32 in (9.3 cm) |
| Length Range | 5 to 5.99 in |
| Style | Spin-On |
| Thread Size | 1 1/4-12 UN |
| Vehicle Make | Massey Ferguson |
Interchanges & Equivalent parts:
| B7023 |
| BT52610 |
| 85610 |
| 70102 |
| 70326 |
| J8630610 |
| 680008 |
| HF6003 |
| HFR86003 |
| P3377 |
| P7535 |
| HF729 |
| SH56053 |
| LFH4935 |
| WD10014 |
| 1610 |
| H30216 |
| SPH11520 |
| SFH1610 |
| 51610 |
| DE10 |
| 456985 |
| 56456985 |
| 2072 |
| 92610 |
| 337225 |
| 6630494 |
| M6630494 |
| 7L95P10 |
| 86030683 |
| 499950202 |
| 126921 |
| D126921 |
| 780402 |
| 3I0537 |
| 3I0749 |
| 5610 |
| 12321 |
| 12322 |
| 13321 |
| 82404110 |
| 904520050 |
| 610 |
| WD610 |
| 35327824 |
| 4610007 |
| 5611 |
| 67507 |
| F16115 |
| F1613 |
| F1615 |
| F32115 |
| F3213 |
| F3215 |
| IF16115 |
| IF1613 |
| IF1615 |
| IF30115 |
| IF3013 |
| IF3015 |
| IF32115 |
| IF3213 |
| IF3215 |
| 7331 |
| 76030 |
| P162766 |
| 7437000132 |
| 7437800014 |
| 9437000132 |
| HD8800 |
| 33031733 |
| 39141353 |
| 39151353 |
| 39460456 |
| 5000078 |
| AE54247 |
| R25162D1 |
| 11315 |
| 21866 |
| MDH1033 |
| 427056 |
| 4270560 |
| 105387GM91 |
| 3595119M92 |
| V63304 |
| 1046Z978 |
| 1046Z998 |
| R2516201 |
| 303195 |
| 4044493 |
| 687128 |
| HF162766 |
| 810916 |
| 810933 |
| WGH6003 |
| W77A426 |
| DN P162766 |
| 076030 |
| 021866 |
| 0780402 |
| 00810916 |
| 00810933 |
| 0499950202 |
| 1053870M91 |
| 2191-P162766 |
| 25010950 |
| 25010960 |
| 353278 |
