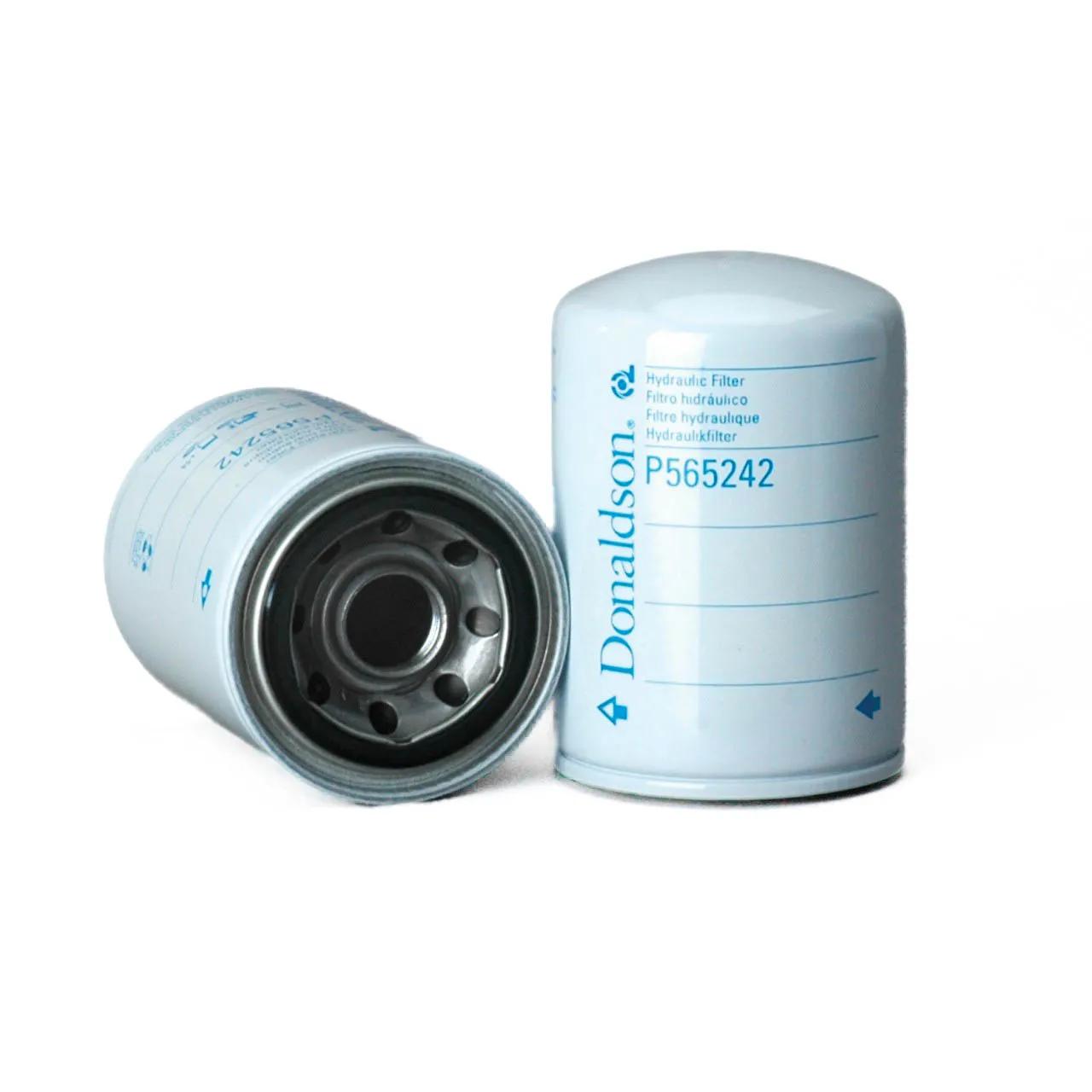

Hydraulic Filter, Spin-On L: 5,36 in, Thread : 3/4 BSP/G , OD: 3,66 in
#DONP565242
Product Overview
HYDRAULIC FILTER, SPIN-ON
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 1.6 bar |
| Bypass Valve Setting LR | 1.24 bar |
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 23 Micron |
| Efficiency Beta 2 | 7 Micron |
| Gasket ID | 2.42 in (61.5 mm) |
| Gasket OD | 2.81 in (71.4 mm) |
| Length | 5-23/64 in (13.61 cm) |
| Outer Diameter | 3-21/32 in (9.3 cm) |
| Series | TT15/30/60 |
| Length Range | 5 to 5.99 in |
| Style | Spin-On |
| Thread Size | 3/4 BSP/G |
Interchanges & Equivalent parts:
| BT8935 |
| 220910 |
| HF7901 |
| TTE1510 |
| LFH8535 |
| W94051 |
| CT050P10AB |
| CT50P10A |
| SFCT3510E |
| UC2402 |
| UC2403 |
| UC2404 |
| UC5031 |
| ERC11NCD |
| ERC11NCC |
| A13A25CBM |
| 7507 |
| FFPA1105210BP |
| 457405 |
| HF565242 |
| CSM05ANR |
| CT050P10ABP01 |
| CT50P10AP01 |
| 2191-P565242 |
| 80457405 |
| A210C10BM |
| DONP171625 |
| DONP565242 |
| UC2408 |
| 4ZNF9 |
| DN P565242 |
| DN P565242 |
