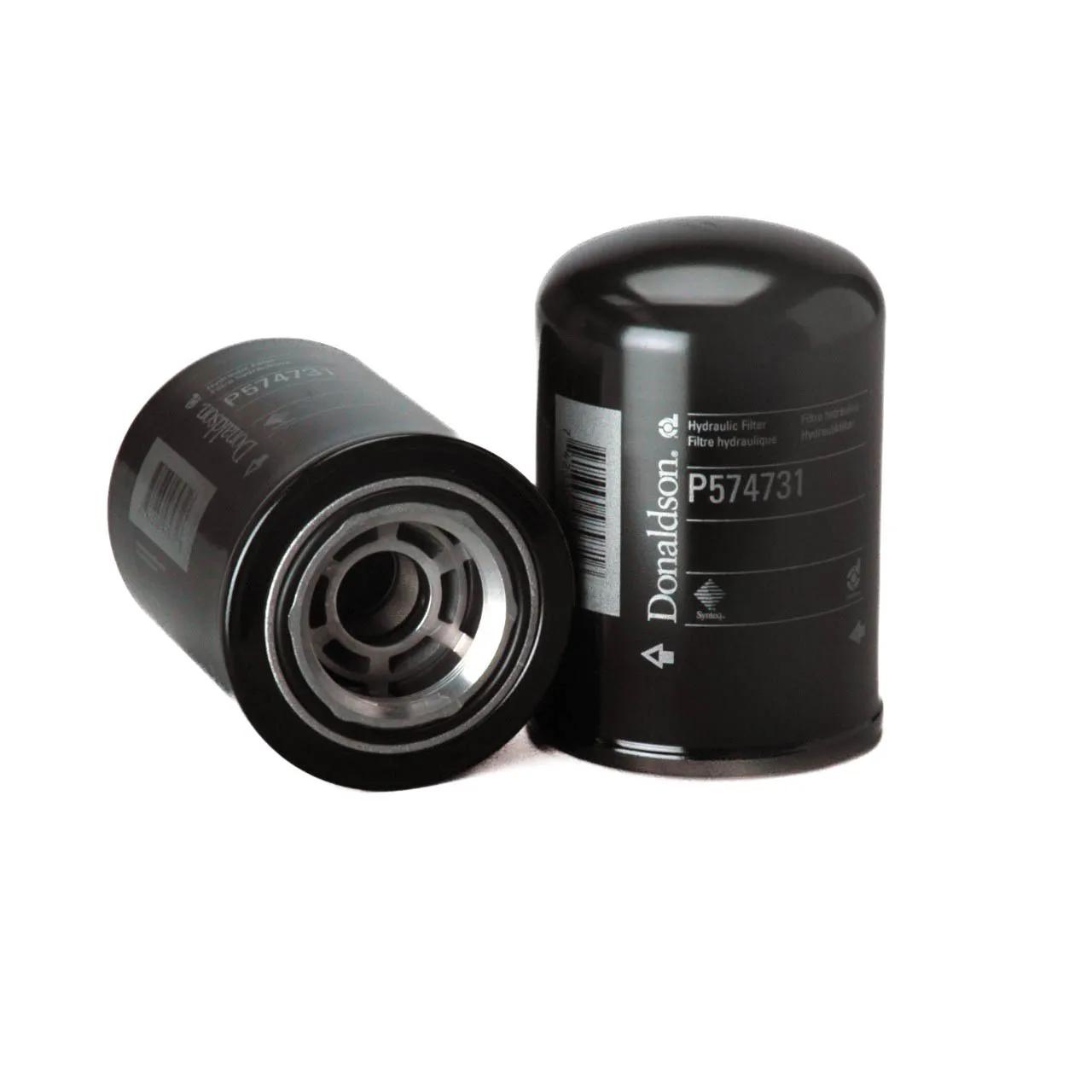

Hydraulic Filter, Spin-On L: 5,47 in, Thread : 2-16 UN , OD: 3,82 in
#DONP574731
Product Overview
TRANSMISSION FILTER, SPIN-ON
Features & Benefits
- Donaldson delivers a full line of aftermarket fuel, lube, coolant and air intake filters, hydraulic and bulk tank filtration – plus exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1.5 bar |
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 23 Micron |
| Gasket ID | 2.48 in (63 mm) |
| Gasket OD | 2.76 in (70.2 mm) |
| Length | 5-15/32 in (13.89 cm) |
| Outer Diameter | 3-13/16 in (9.68 cm) |
| Length Range | 5 to 5.99 in |
| Style | Spin-On |
| Thread Size | 2-16 UN |
Interchanges & Equivalent parts:
| 51474 |
| 234099 |
| 246262 |
| 247051 |
| 2370631 |
| 3229980 |
| 6247050 |
| 10058664 |
| 247050 |
| 281875 |
| P00052 |
| CV102708 |
| 9831967 |
| 20527 |
| 73118171 |
| 906041007 |
| 8004659 |
| 4697505 |
| 5490060009 |
| 04110147 |
| 04697505 |
| 90204732 |
| 84550621 |
| HY377W |
| 56041494 |
| 83285 |
| IF4037 |
| 4110147 |
| 1010385 |
| CL247050 |
| 323264 |
| 8106 |
| 87214 |
| 108668 |
| 146735 |
| 322998 |
| 814780 |
| 2340990 |
| 4720309 |
| 11992886 |
| 11993686 |
| 31901320 |
| 19982301 |
| 29802075 |
| 58886136 |
| 79104646 |
| 85187419 |
| 88308129 |
| 119936862 |
| 9210280004 |
| 9210970002 |
| 9234580449 |
| ABP3001583 |
| BT8830 |
| D146735 |
| D87214 |
| DO062 |
| E6814 |
| HF6420 |
| HS7634 |
| HS7639 |
| WGH6420 |
| MCD146735 |
| SH56470 |
| SPH9250 |
| 1474 |
| 3I1980 |
| 279257 |
| 851 |
