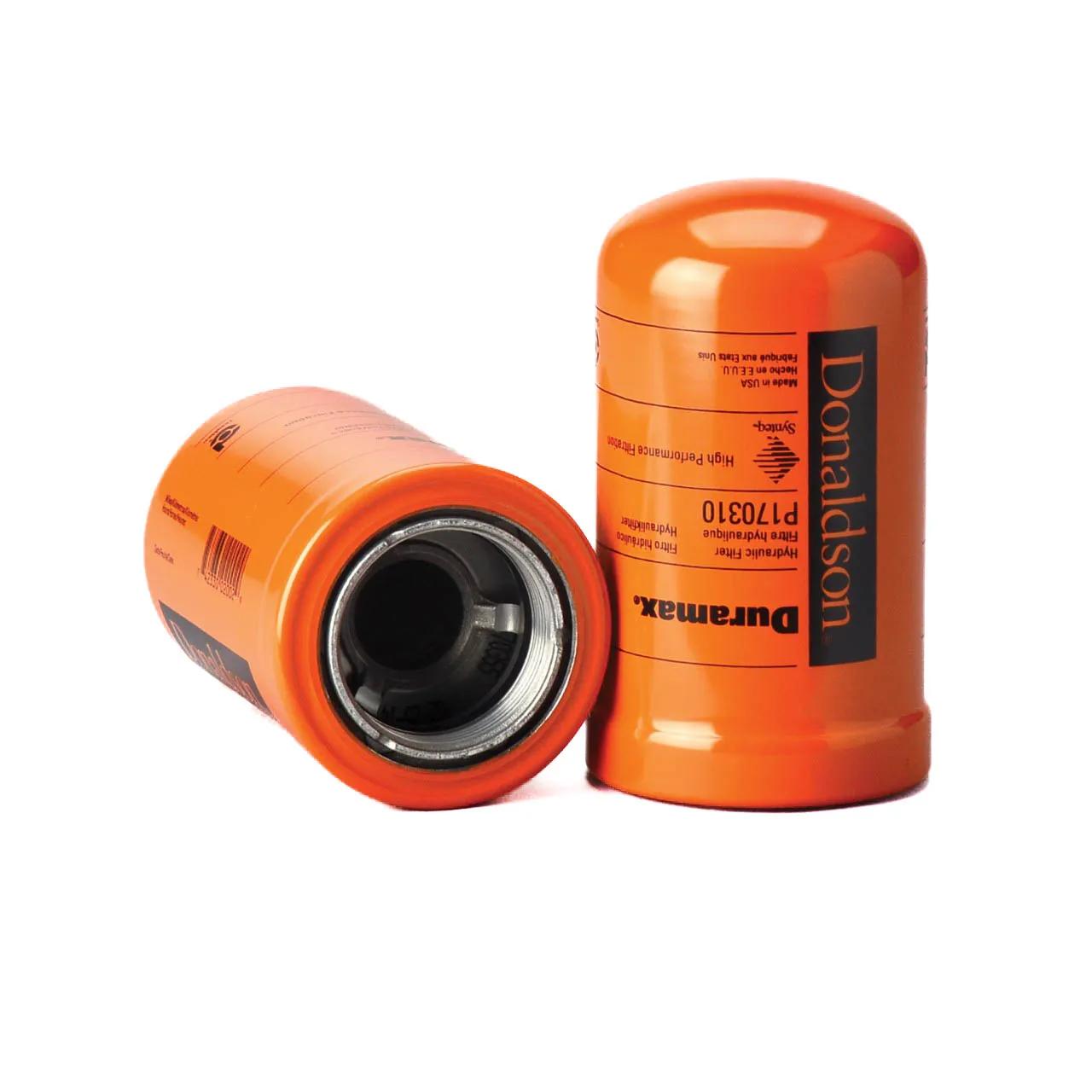

Hydraulic Filter, Spin-On L: 5,52 in, Thread : 2-12 UN , OD: 3,13 in
#DONP170310
Product Overview
HYDRAULIC FILTER, SPIN-ON DURAMAX
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 11 Micron |
| Gasket ID | 1.85 in (47 mm) |
| Gasket OD | 3.13 in (79.6 mm) |
| Length | 5-33/64 in (14.02 cm) |
| Outer Diameter | 3-1/8 in (7.95 cm) |
| Series | HMK03 |
| Length Range | 5 to 5.99 in |
| Style | Spin-On |
| Thread Size | 2-12 UN |
Interchanges & Equivalent parts:
| P170310 |
| 7184 |
| 57184 |
| BT9349MPG |
| 84184 |
| SH66022 |
| LFH22150 |
| LFH22150001630910 |
| WH8001 |
| 944005Q |
| SPH12545 |
| EM251B1R20 |
| 306606012 |
| 1843931 |
| 3I1769 |
| 241216 |
| 80035478 |
| 10867527 |
| WY16817 |
| 9161533 |
| 140097 |
| 56419254 |
| LP67527X |
| 1096010031 |
| 2307000031 |
| DN P170310 |
| DN P170310 |
| 2191-P170310 |
| BT9349-MPG |
| DONP170310 |
| HF28938 |
| HF28938FLG |
