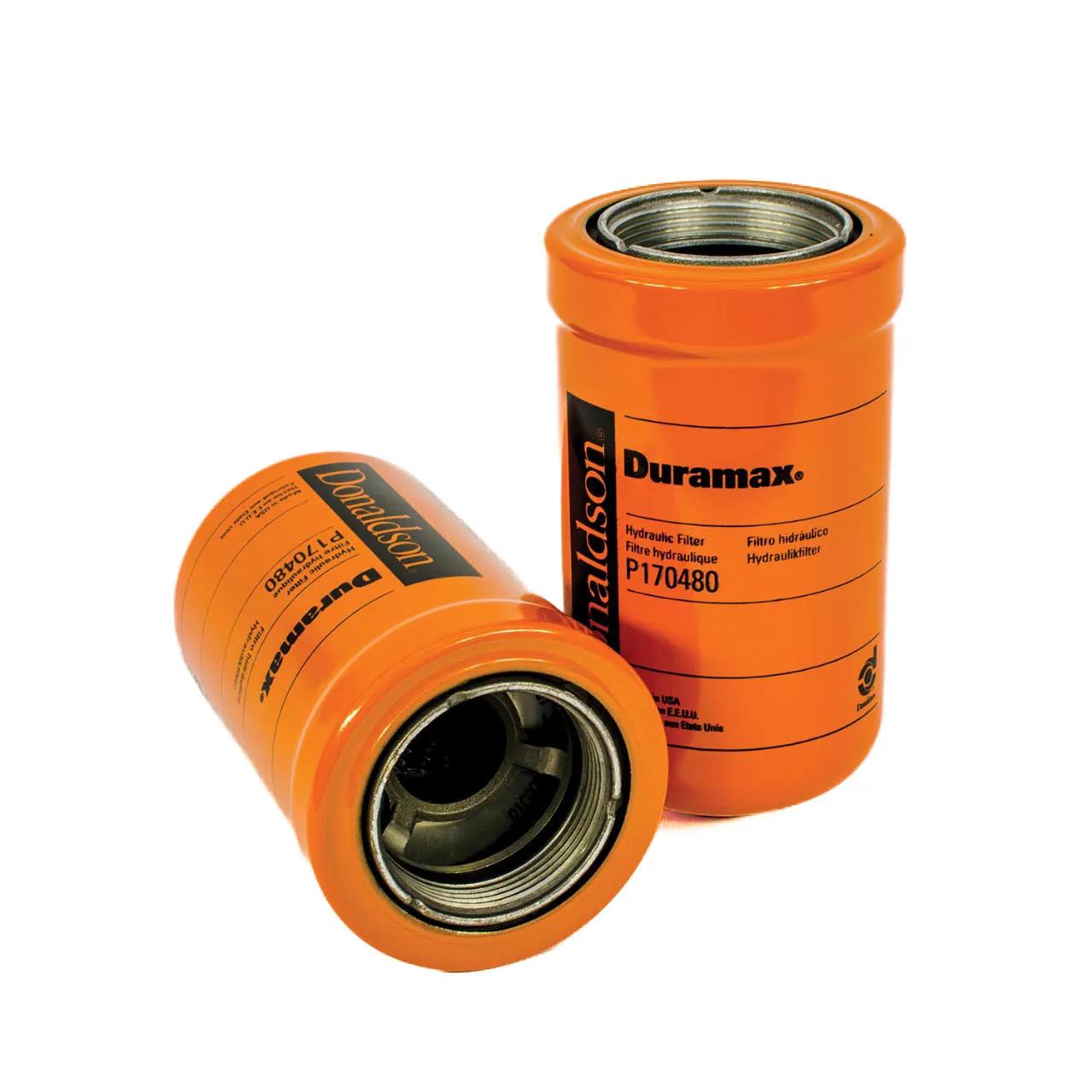

Hydraulic Filter, Spin-On L: 5,52 in, Thread : 2-12 UN , OD: 3,13 in
#DONP170480
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 23 Micron |
| Efficiency Beta 2 | 7 Micron |
| Gasket ID | 1.85 in (47 mm) |
| Gasket OD | 3 in (76.2 mm) |
| Length | 5-33/64 in (14.02 cm) |
| Outer Diameter | 3-1/8 in (7.95 cm) |
| Length Range | 5 to 5.99 in |
| Style | Spin-On |
| Thread Size | 2-12 UN |
Interchanges & Equivalent parts:
| BT8333 |
| 85720 |
| J8630480 |
| HF28938 |
| HFR828938 |
| P8307 |
| HF944 |
| H14WD03 |
| SH66003 |
| LFH8454 |
| WH722 |
| 1720 |
| 944009Q |
| SPH9545 |
| 51720 |
| 551720 |
| 720 |
| 92720 |
| 29645 |
| 3I1773 |
| 413948 |
| 4I3948 |
| 4L3948 |
| 4010000847 |
| 140091 |
| HF170480 |
| WGH1945 |
| 2191-P170480 |
| 4I-3948 |
| DONP170480 |
| FIL1720 |
| HF28938FLG |
| LFH845 |
| DN P170480 |
| DN P170480 |
