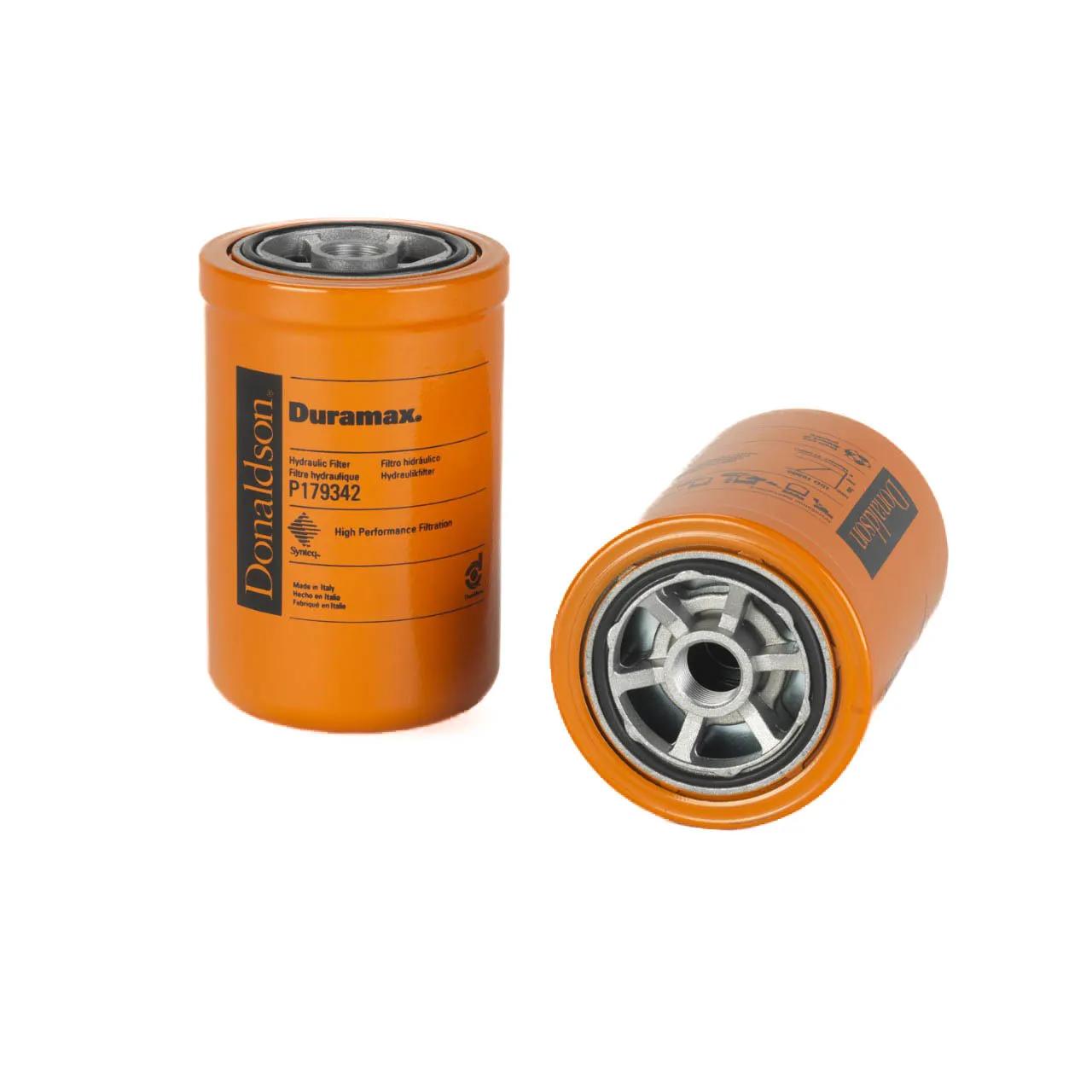

Hydraulic Filter, Spin-On L: 5,97 in, Thread : 13/16-16 UN , OD: 3,82 in
#DONP179342
Product Overview
Removes abrasives that could damage the hydraulic pump and other hydraulic system components
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 3.5 bar |
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 25 Micron |
| Gasket ID | 2.48 in (63 mm) |
| Gasket OD | 2.76 in (70.2 mm) |
| Length | 5-31/32 in (15.16 cm) |
| Outer Diameter | 3-13/16 in (9.68 cm) |
| Length Range | 5 to 5.99 in |
| Style | Spin-On |
| Thread Size | 13/16-16 UN |
| Vehicle Make | Case/Case IH |
Interchanges & Equivalent parts:
| BT8439MPG |
| 84220 |
| HF35150 |
| HFR835150 |
| HFR87550 |
| SH66083 |
| LFH5074G |
| LFH5074G001633389 |
| WD9003 |
| WH10004 |
| 7220 |
| HC45050 |
| SPH12540 |
| PSH582 |
| 557220 |
| 57220 |
| 91220 |
| 40958 |
| 139413 |
| 146569 |
| 426931A1 |
| 1302541 |
| 181167A1 |
| 254686A1 |
| 254686A2 |
| 84475948 |
| 86982180 |
| CA137713 |
| CA0040952 |
| CA0045177 |
| CA0139413 |
| HF3092 |
| MDH9643 |
| Y06113002 |
| LL716088 |
| 6110604M91 |
| HF179342 |
| 17270572 |
| WGH1845 |
| DN P179342 |
| DN P179342 |
| 11709048 |
| 2191-P179342 |
| 234724 |
| ABP3003018 |
| BT8439-MPG |
| DONP179342 |
| HF35150FLG |
