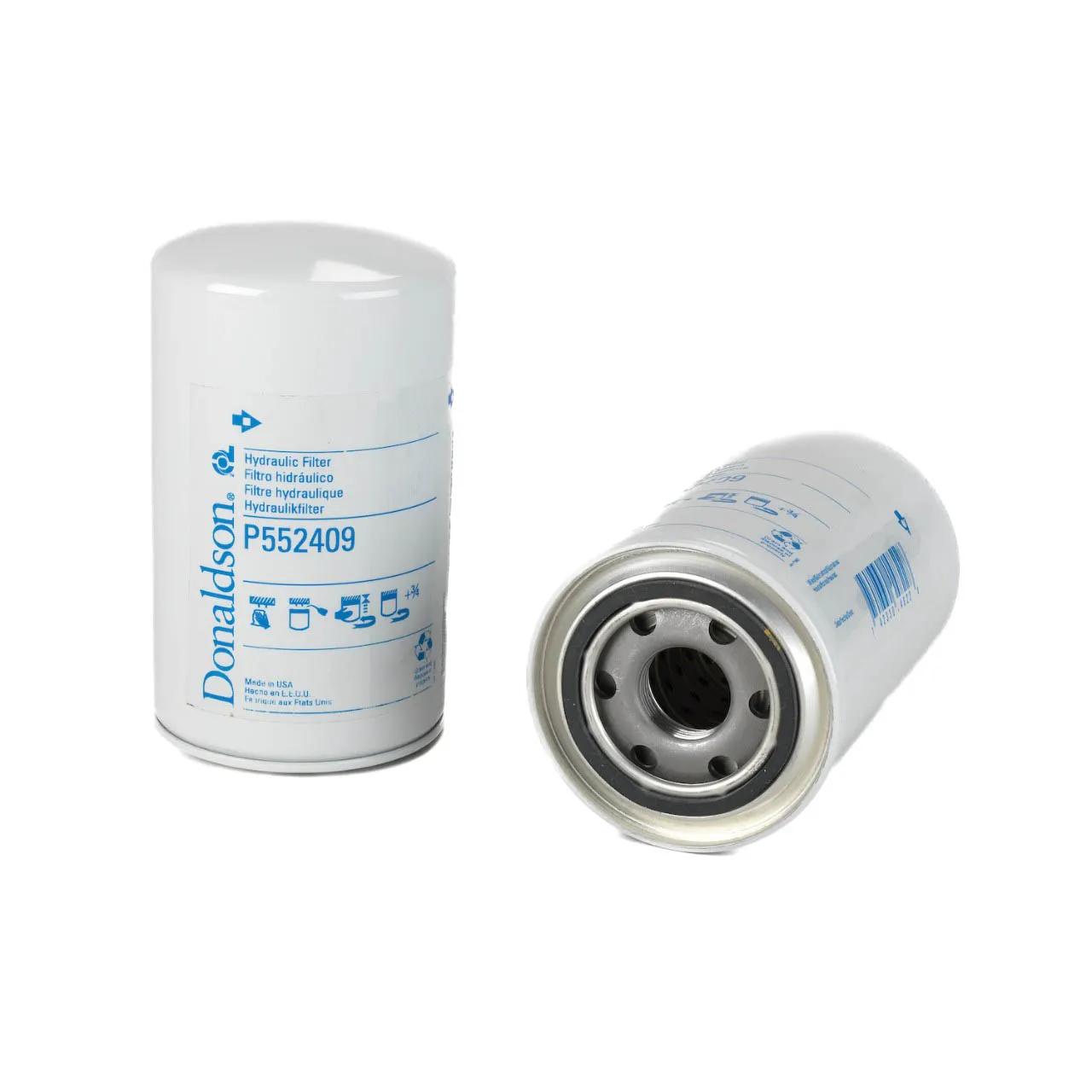

Hydraulic Filter, Spin-On L: 6,48 in, Thread : 1 1/8-16 UN , OD: 3,67 in
#DONP552409
Product Overview
HYDRAULIC FILTER, SPIN-ON
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 0.9 bar |
| Bypass Valve Setting LR | 11.61 psi (0.8 bar) |
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 2 | 32 Micron |
| Gasket ID | 2.4 in (61 mm) |
| Gasket OD | 2.73 in (69.4 mm) |
| Length | 6-31/64 in (16.46 cm) |
| Outer Diameter | 3-43/64 in (9.32 cm) |
| Length Range | 6 to 6.99 in |
| Style | Spin-On |
| Thread Size | 1 1/8-16 UN |
| Type | Sock |
Interchanges & Equivalent parts:
| BT8357 |
| 85778 |

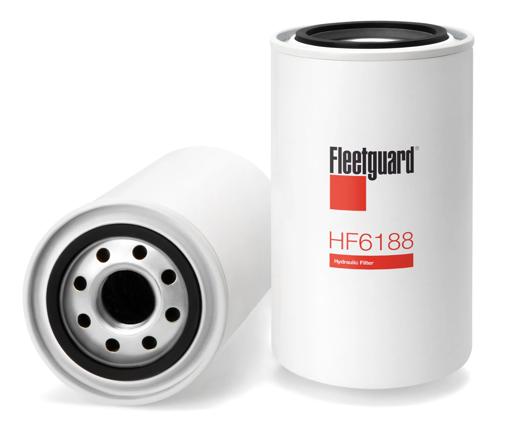

| HF6188 |
| P4637 |
| P4637A |
| P5469 |
| SH56238 |
| SH59010 |
| L1778 |
| LFH8243 |
| W9508 |
| 1778 |
| A4863 |
| AZH440 |
| P5469FNA |
| 51778 |
| 551778 |
| 92778 |
| 47622189 |
| HSM6172 |
| HSN6172 |
| 9315 |
| D10026160 |
| 1863229 |
| 81863229 |
| D8NNB486DA |
| F0NN8486BB |
| F0NNB486AA |
| FONNB486AA |
| 954SH |
| HS7654 |
| LK3626 |
| 84263773 |
| 83984236 |
| BC1168 |
| HF552409 |
| WGH1981 |
| DN P552409 |
| 8014600 |
| 2191-P552409 |
| DONP552409 |
