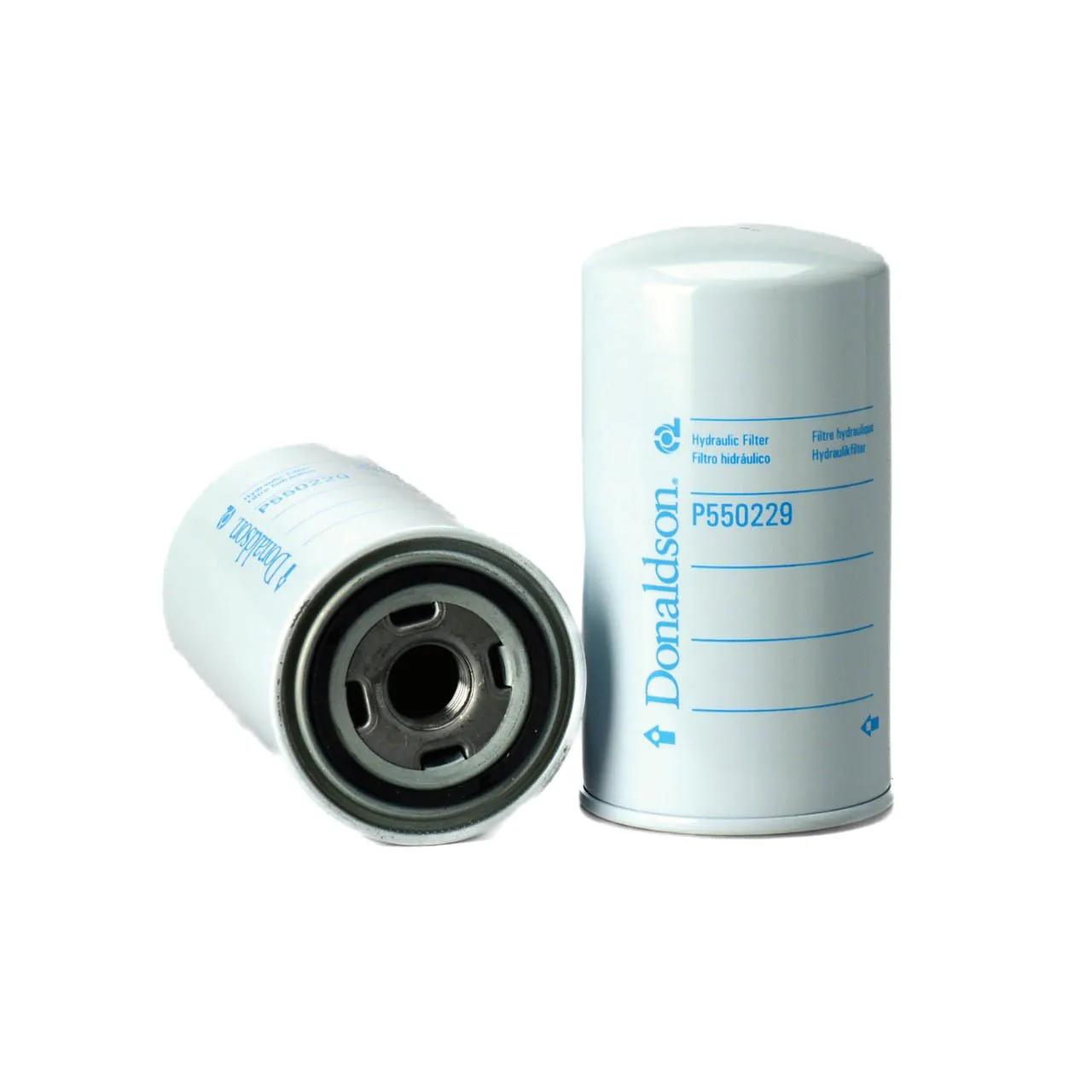

Hydraulic Filter, Spin-On L: 7,01 in, Thread : 1-12 UN , OD: 3,82 in
#DONP550229
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 2.9 bar |
| Bypass Valve Setting LR | 2.1 bar |
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 2 | 17 Micron |
| Gasket ID | 2.4 in (61 mm) |
| Gasket OD | 2.8 in (71.2 mm) |
| Length | 7-1/64 in (17.83 cm) |
| Outer Diameter | 3-13/16 in (9.68 cm) |
| Length Range | 7 to 7.99 in |
| Style | Spin-On |
| Thread Size | 1-12 UN |
Interchanges & Equivalent parts:
| BT8315 |
| BT8512 |
| J8611950 |
| 121122522600 |
| 121122522601 |
| 121122522602 |
| HF28989 |
| HF7968 |
| PH4551 |
| H19WD02 |
| SH62192 |
| KL510016 |
| LFH8594 |
| LFH8596 |
| WD9501 |
| WD9502 |
| UL376H |
| PC250 |
| C6801 |
| SPH21006 |
| SFH0950 |
| HC5 |
| HC62 |
| PSH315 |
| SP500H |
| 1003685 |
| E6642 |
| F008231 |
| 5821213 |
| 50SL50P10 |
| F026407113 |
| 3I2071 |
| 131420 |
| C111581775 |
| 5161310 |
| 5773274 |
| 21071401 |
| 21112487 |
| D45161300 |
| FT4777HP |
| HS7626 |
| CV102812 |
| AT274339 |
| PMHF7968 |
| AW107 |
| 36017968 |
| 5612546 |
| 402219303 |
| D45161301 |
| 45161300 |
| 675012332071 |
| HF550229 |
| 811753 |
| WGH9502 |
| DN P550229 |
| DN P550229 |
| HFR828989 |
| HFR87968 |
| 00282316 |
| 05612546 |
| 00811753 |
| 05821213 |
| 2754362 |
| 0009830615 |
| 1314200 |
| 1314201 |
| 2191-P550229 |
| 22788506 |
| 2754362-M1 |
| 5137274 |
| 57339 |
| 7004209 |
| 84339 |
| DONP550229 |
| HF2898 |
| 282316 |
