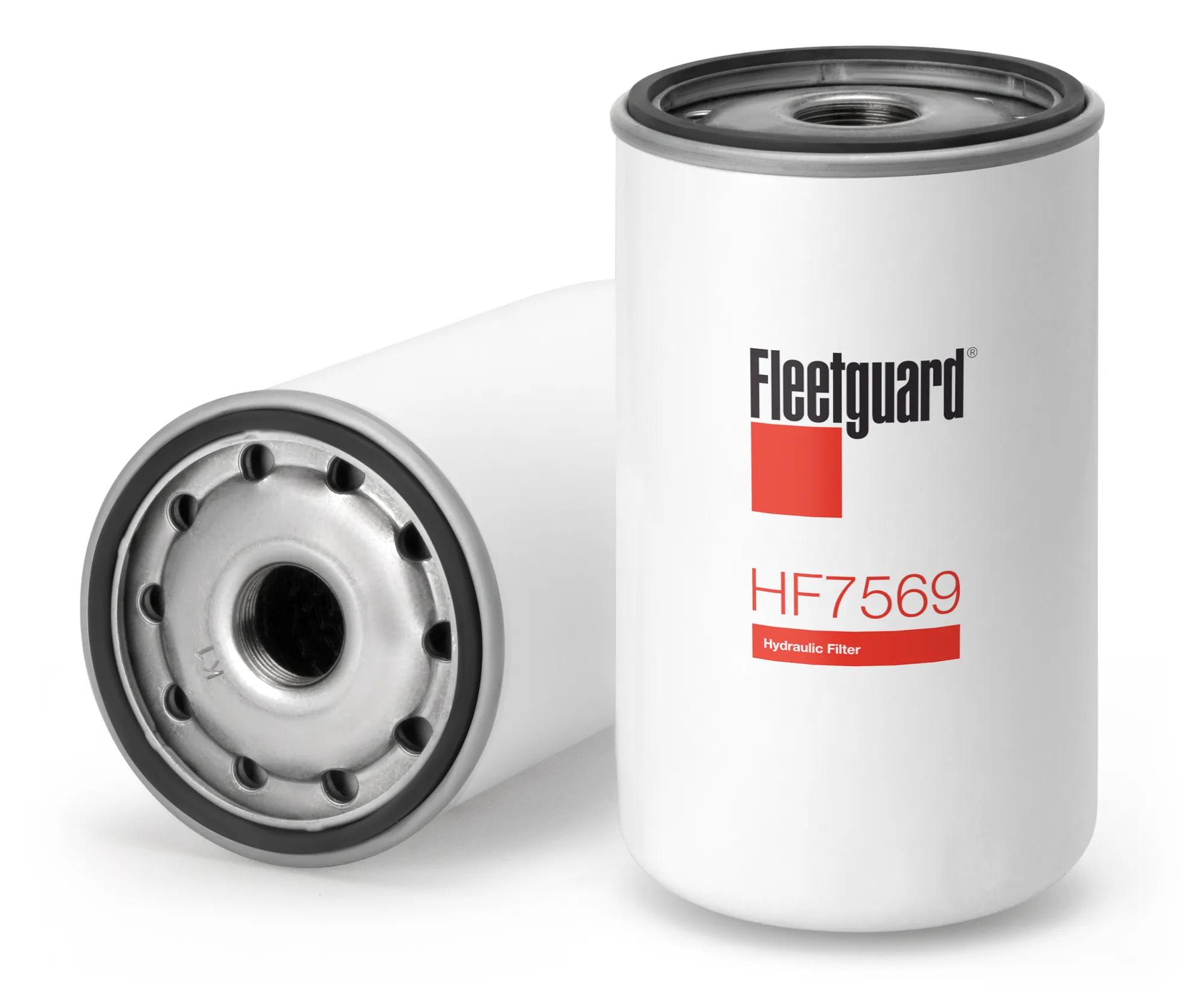

Hydraulic Filter, Spin-On, L: 7-11/32 in, Thread: 1 1/8-16 UN-2B, OD: 4-1/4 in
#FLGHF7569
Product Overview
Fleetguard HF7569 hydraulic spin-on filter with cellulose media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Specifications
| Diameter Range | 4 to 4.99 in |
| Gasket ID | 3-5/8 in (9.22 cm) |
| Gasket OD | 3-15/16 in (10.01 cm) |
| Length | 7-11/32 in (18.64 cm) |
| Outer Diameter | 4-1/4 in (10.8 cm) |
| Length Range | 7 to 7.99 in |
| Thread Size | 1 1/8-16 UN-2B |
Interchanges & Equivalent parts:
| BT470 |
| 1909130 |
| 1930918 |
| 1931127 |
| 244192700 |
| 244194100 |
| 47425202 |
| 5113297 |
| 5136877 |
| 5149813 |
| 62225 |
| 8004380 |
| 84160465 |
| 84397845 |
| BL2127 |
| CS1489H |
| FT4921 |
| HC45110 |
| HF928 |
| LI101682 |
| PF2203 |
| PH4469 |
| R413 |
| SO351 |
| VPJ4512 |
| W11502 |
| W115091 |
| WL10338 |
| Z255 |
