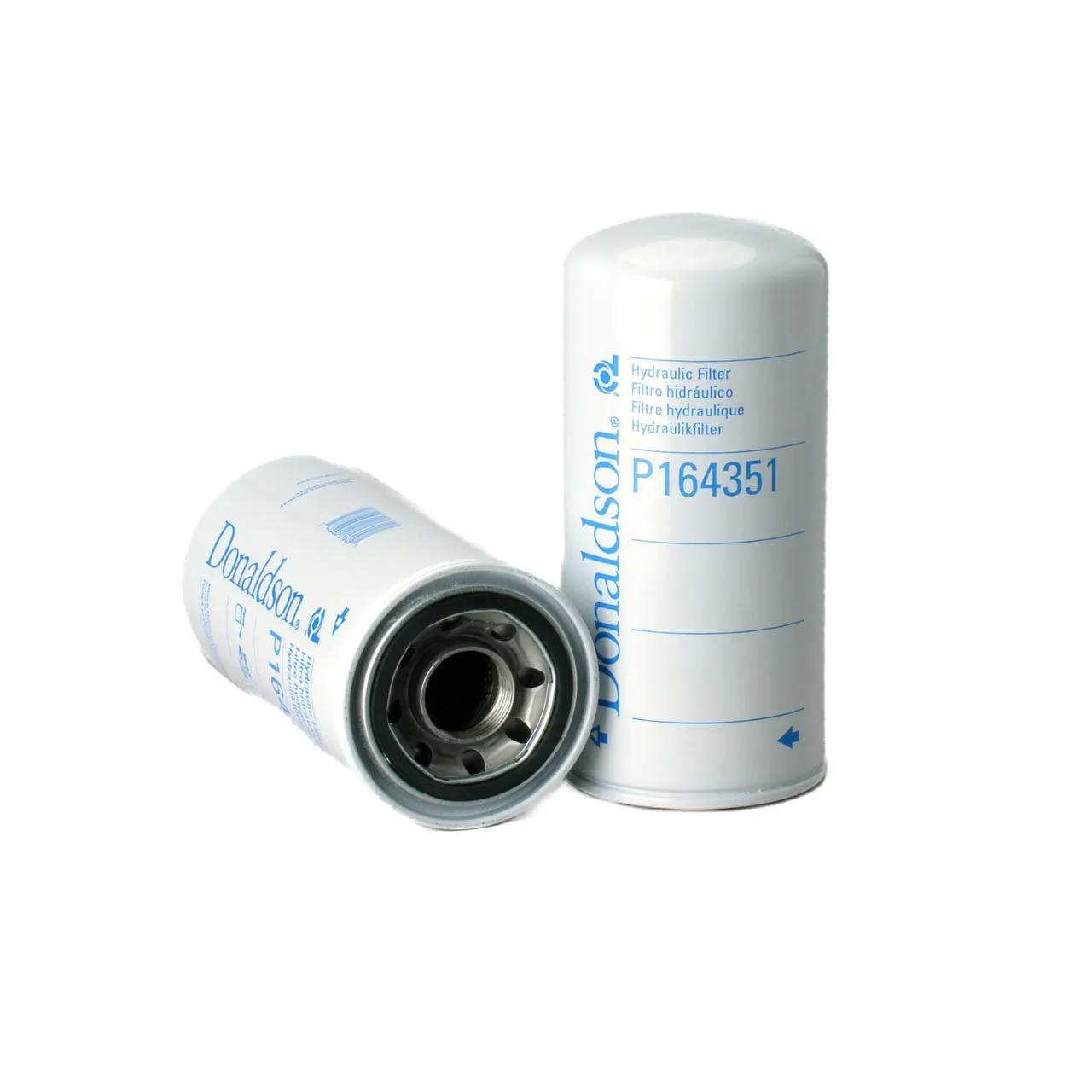

Hydraulic Filter, Spin-On L: 7,88 in, Thread : 1 1/4-12 UN , OD: 3,7 in
#DONP164351
Product Overview
HYDRAULIC FILTER, SPIN-ON
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Application | GARDNER DENVER 2109648 |
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 23 Micron |
| Efficiency Beta 2 | 7 Micron |
| Gasket ID | 2.48 in (63 mm) |
| Gasket OD | 2.83 in (71.9 mm) |
| Length | 7-7/8 in (20.02 cm) |
| Outer Diameter | 3-45/64 in (9.4 cm) |
| Length Range | 7 to 7.99 in |
| Style | Spin-On |
| Thread Size | 1 1/4-12 UN |
Interchanges & Equivalent parts:
| P164351 |
| 1826 |
| 51826 |
| RSE4510N |
| 29960 |

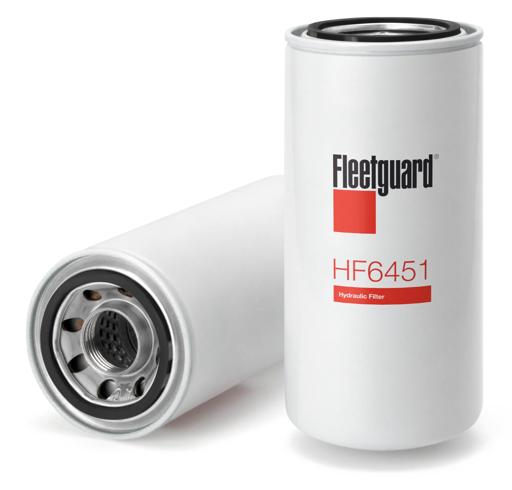

| HF6450 |
| HF6451 |
| P6943 |
| SH56501 |
| MFE811102 |
| KL750020 |
| SPH9874 |
| DE10L |
| 709933 |
| 843432 |
| 303308 |
| 4331418 |
| 2010875 |
| 3I0607 |
| 1046Z552 |
| 46Z420 |
| 46Z447 |
| 97334A003 |
| 6630539 |
| 82404107 |
| 124331052 |
| 28A4248 |
| P174351 |
| 2109412 |
| 2109648 |
| 2116510 |
| 4271710 |
| 7437000179 |
| 7120 |
| 38480307 |
| 38480323 |
| 70020622 |
| R35375D2 |
| 431041 |
| 43880 |
| 4102579 |
| 22011 |
| 427171 |
| DONP164351 |
| DON164351 |
| HT97008Z5 |
| 50009972 |
| 5080013 |
| 275A762021 |
| 919613 |
| HF164351 |
| 810977 |
| DN P164351 |
| 00007120 |
| 022011 |
| 00810977 |
| 12973159 |
| 2191-P164351 |
| 43-880 |
| 70112 |
| 85826 |
| B112-C |
| B37810 |
| E12973159 |
| FIL1826 |
| HLC1078523 |
| LF355 |
| 2401 |
| 7216435100 |
| DN P164351 |
| WIX51826 |
| LFH4933 |
| B378-10 |
