Hydraulic Filter, Spin-On L: 8,06 in, Thread : 1 1/2-16 UN , OD: 3,66 in
#DONP569380
Product Overview

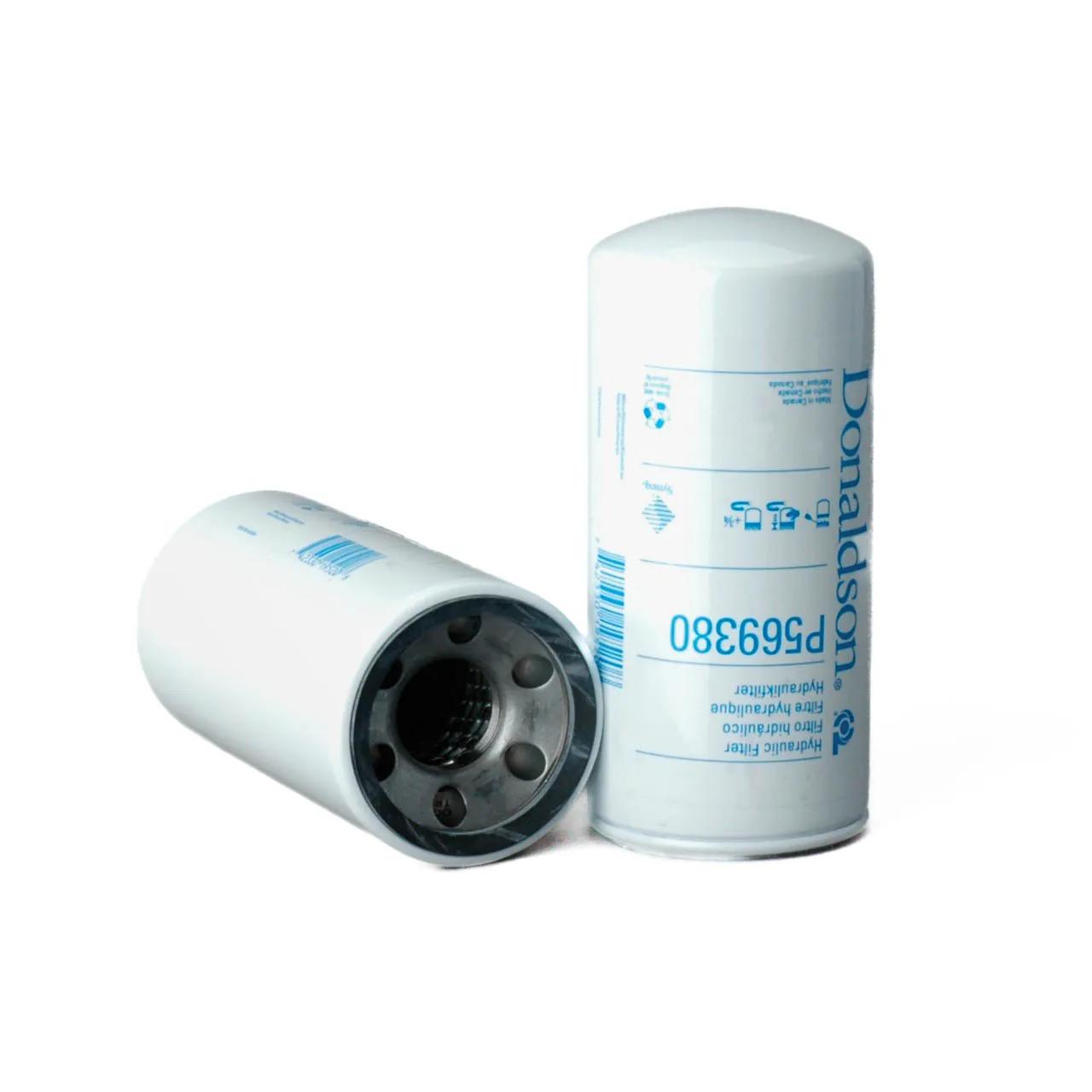

HYDRAULIC FILTER, SPIN-ON
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve Setting HR | 3 bar |
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 5 Micron |
| Gasket ID | 2.89 in (73.5 mm) |
| Gasket OD | 3.39 in (86.2 mm) |
| Length | 8-1/16 in (20.47 cm) |
| Outer Diameter | 3-21/32 in (9.3 cm) |
| Length Range | 8 to 8.99 in |
| Style | Spin-On |
| Thread Size | 1 1/2-16 UN |
| Vehicle Make | Pall |
Interchanges & Equivalent parts:
| ABP N03 H69380 |
| 2059430 |
| TWD P569380 |
| 0095MA003BN |
| 0095MA003P |
| 15210803 |
| 167400SH3SLS000P |
| 2057177 |
| 3S66CGCB08 |
| 8S66CGDB08 |
| 9327077 |
| 935167 |
| 935167Q |
| DONP569380 |
| E0201B2R03 |
| F4F040GCB |
| H370805D26 |
| H370805M26 |
| HC7400SCP8H |
| HC7400SDP8H |
| HC7400SKP8H |
| HC7400SMP8H |
| HC7400SUP8H |
| HP74L83MB |
| MFE90103BN2 |
| MFE90103BN32 |
| MP3005 |
| MPE40BTA3 |
| P169392 |
| P564001 |
| R740H0803A |
| R928016657 |
| SH87251 |
| ZHE03L |
| ZHE3L |
| A07A03G |
| HF30238 |
| HC7400SRP8H |
| SBF74008Z3B |
| HC7400SHP8H |
