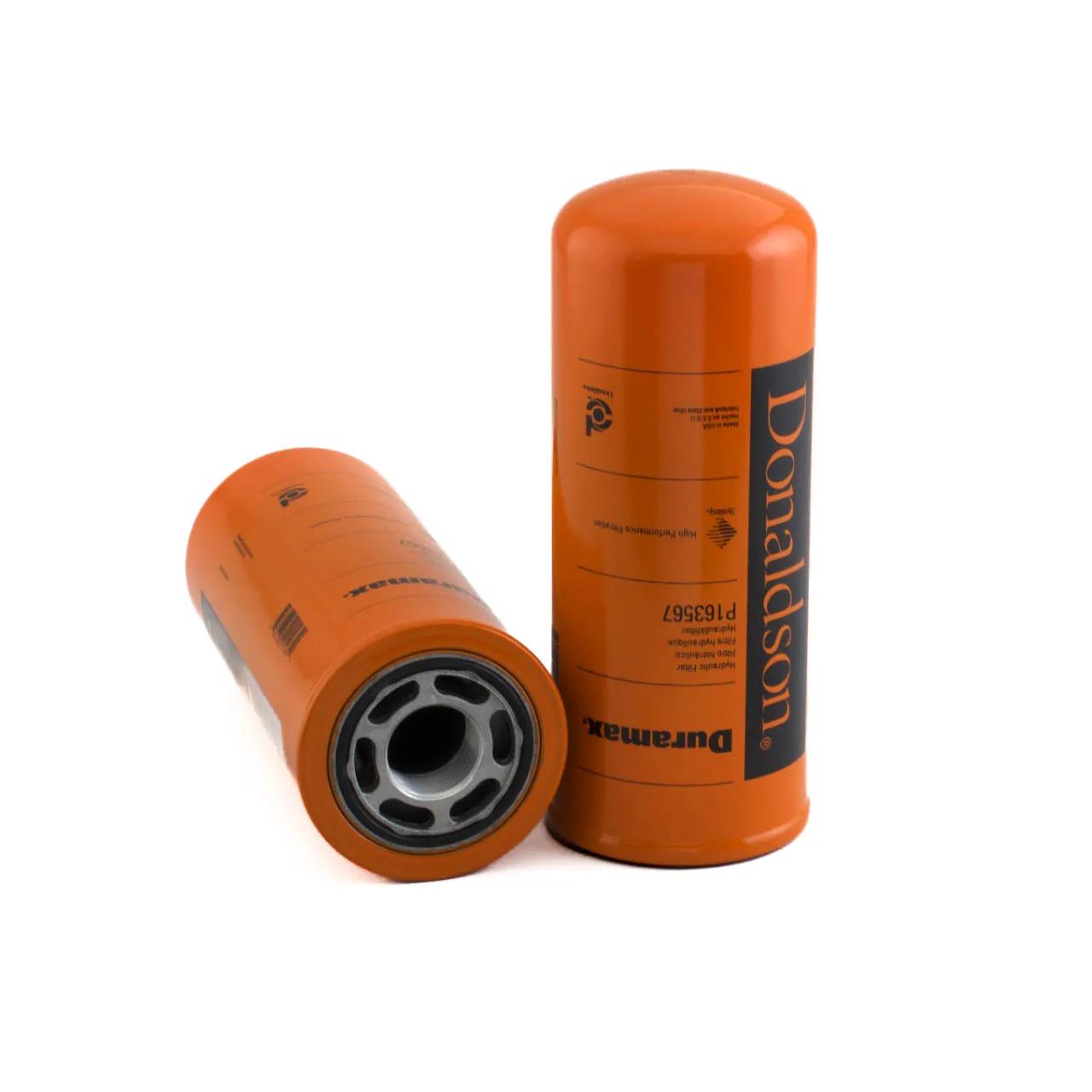

Hydraulic Filter, Spin-On L: 9,45 in, Thread : 1 3/8-12 UN , OD: 3,82 in
#DONP163567
Product Overview
HYDRAULIC FILTER, SPIN-ON DURAMAX
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 23 Micron |
| Efficiency Beta 2 | 7 Micron |
| Efficiency Test Std | ISO 16889 |
| Gasket ID | 2.48 in (63 mm) |
| Gasket OD | 2.76 in (70.2 mm) |
| Length | 9-29/64 in (24 cm) |
| Outer Diameter | 3-13/16 in (9.68 cm) |
| Series | HMK04/24 |
| Length Range | 9 to 9.99 in |
| Style | Spin-On |
| Thread Size | 1 3/8-12 UN |
| Vehicle Make | Hyster |
Interchanges & Equivalent parts:
| BT8324 |
| BT8325 |

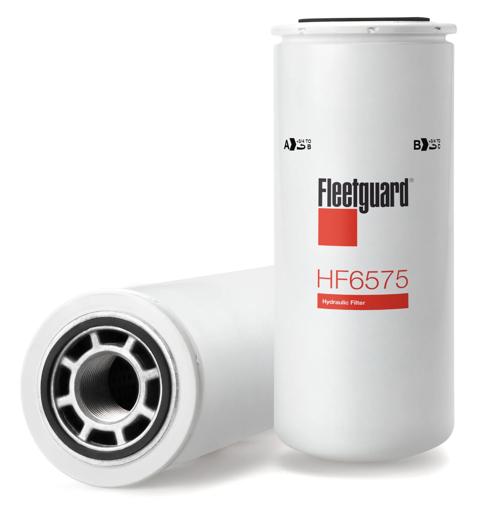

| HF6575 |
| HF6576 |
| HFR86575 |
| HFR86576 |
| SH56625 |
| L489 |
| L490 |
| 1489 |
| 1490 |
| A19A10G |
| 490 |
| 51490 |
| 92489 |
| 92490 |
| 3I0570 |
| 3I0571 |
| 398886 |
| 20011 |
| 29838668 |
| HF163567 |
| 810954 |
| 020011 |
| 00810954 |
| 489 |
| 51489 |
| 85489 |
| 85490 |
| CSD07000P25NRA |
| HF873 |
| PS624751 |
| DN P163567 |
| DN P163567 |
| 2191-P163567 |
| DONP163567 |
| P6889 |
| P6890 |
