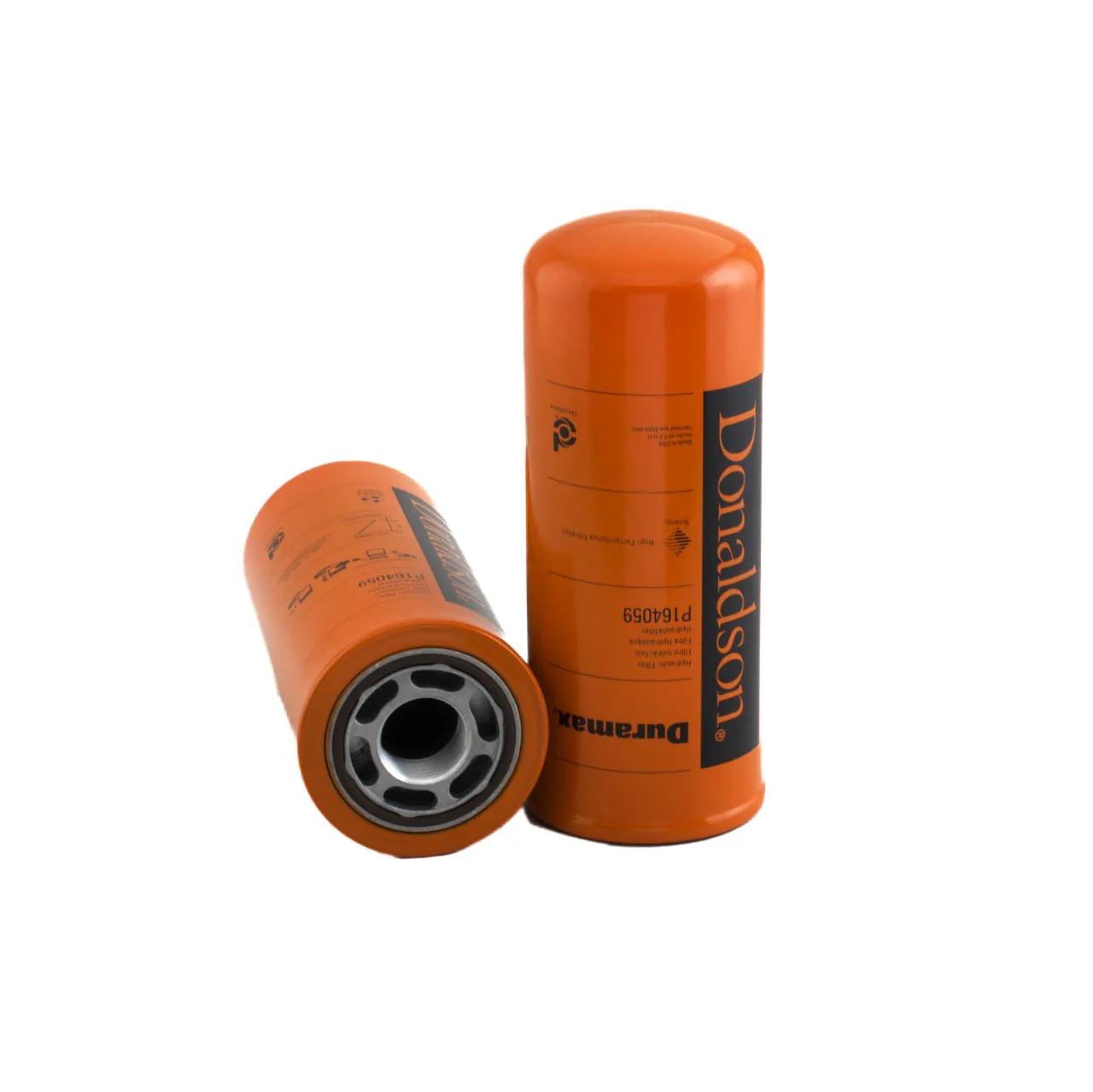

Hydraulic Filter, Spin-On L: 9,45 in, Thread : 1 3/8-12 UN , OD: 3,82 in
#DONP164059
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 22 Micron |
| Efficiency Test Std | ISO 16889 |
| Gasket ID | 2.48 in |
| Gasket OD | 2.76 in (70.2 mm) |
| Length | 9-29/64 in |
| Outer Diameter | 3-13/16 in |
| Series | HMK04/24 |
| Length Range | 9 to 9.99 in |
| Style | Spin-On |
| Thread Size | 1 3/8-12 UN |
Interchanges & Equivalent parts:
| P164059 |
| 1492 |
| 92 |
| 51492 |
| 85492 |
| P7236 |
| 92492 |
| 3I0580 |
| 205955 |
| 1005003 |
| 810957 |
| 2191-P164059 |
| 28-4579 |
| 492 |
| DONP164059 |
| FIL1492 |
| DN P164059 |
| DN P164059 |
| 85494 |
| LFH4432 |
