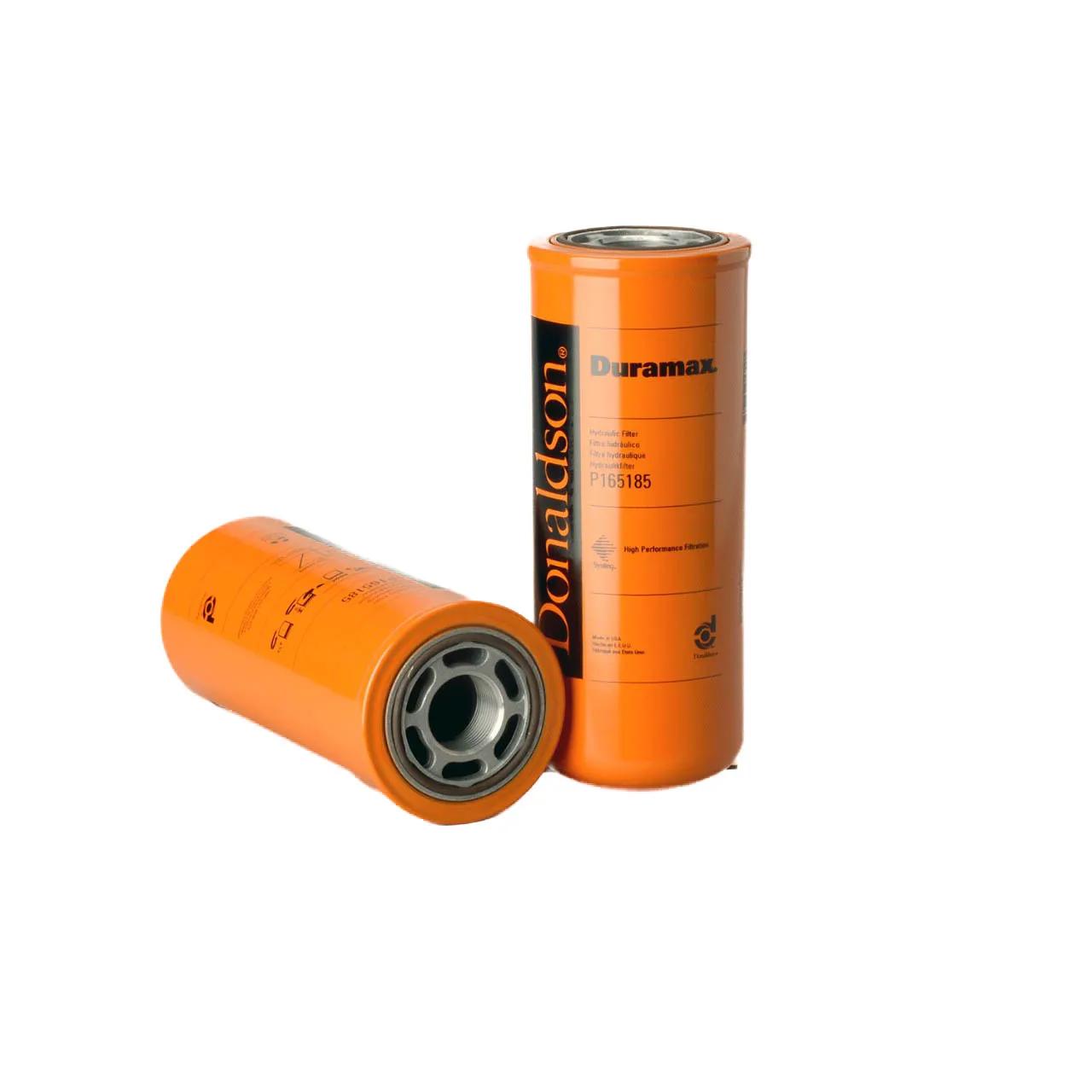

Hydraulic Filter, Spin-On L: 9,45 in, Thread : 1 3/8-12 UN , OD: 3,82 in
#DONP165185
Product Overview
HYDRAULIC FILTER, SPIN-ON DURAMAX
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 4 Micron |
| Efficiency Test Std | ISO 16889 |
| Gasket ID | 2.48 in (63 mm) |
| Gasket OD | 2.76 in (70.2 mm) |
| Length | 9-29/64 in (24 cm) |
| Outer Diameter | 3-13/16 in (9.68 cm) |
| Series | HMK04/24 |
| Length Range | 9 to 9.99 in |
| Style | Spin-On |
| Thread Size | 1 3/8-12 UN |
Interchanges & Equivalent parts:
| P165185 |
| HP409L91MB |
| MF0852542 |
| EM351V3R03 |
| 84475949 |
| 376023 |
| AY088 |
| DN P165185 |
| DN P165185 |
| 2191-P165185 |
| 3I1905 |
| DONP165185 |
