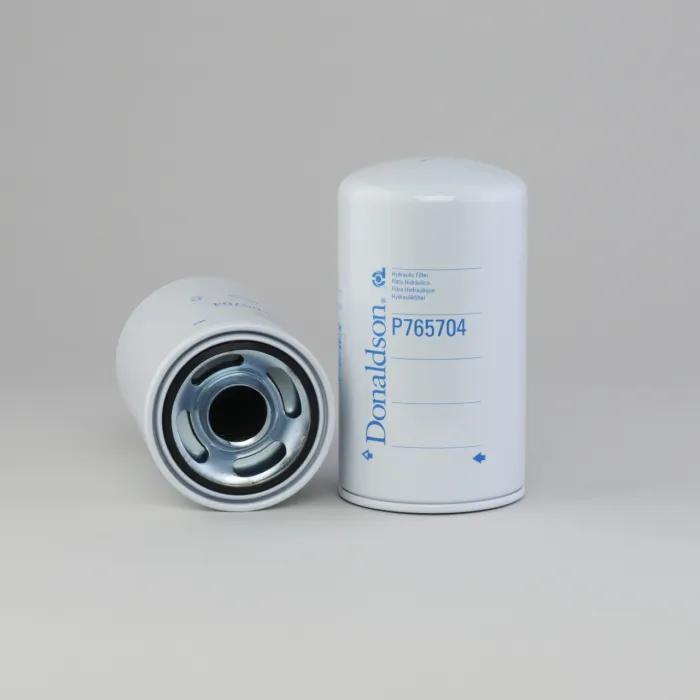

Hydraulic Filter, Spin-On L: 9,62 in, Thread : 1 3/4-16 UN , OD: 5,33 in
#DONP765704
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 0.8 bar |
| Diameter Range | 5 to 5.99 in |
| Efficiency Beta 1000 | 50 Micron |
| Gasket ID | 3.94 in (100.1 mm) |
| Gasket OD | 4.32 in (109.8 mm) |
| Length | 9-5/8 in (24.46 cm) |
| Outer Diameter | 5-21/64 in (13.54 cm) |
| Length Range | 9 to 9.99 in |
| Style | Spin-On |
| Thread Size | 1 3/4-16 UN |
Interchanges & Equivalent parts:
| P765704 |
| FIL7421 |
| 57421 |
| BT23650MPG |
| BT23605MPG |
| HF29072 |
| SH59005 |
| LFH8726 |
| 7421 |
| SP5190 |
| 84248043 |
| 47135287 |
| 84228827 |
| 842288270 |
