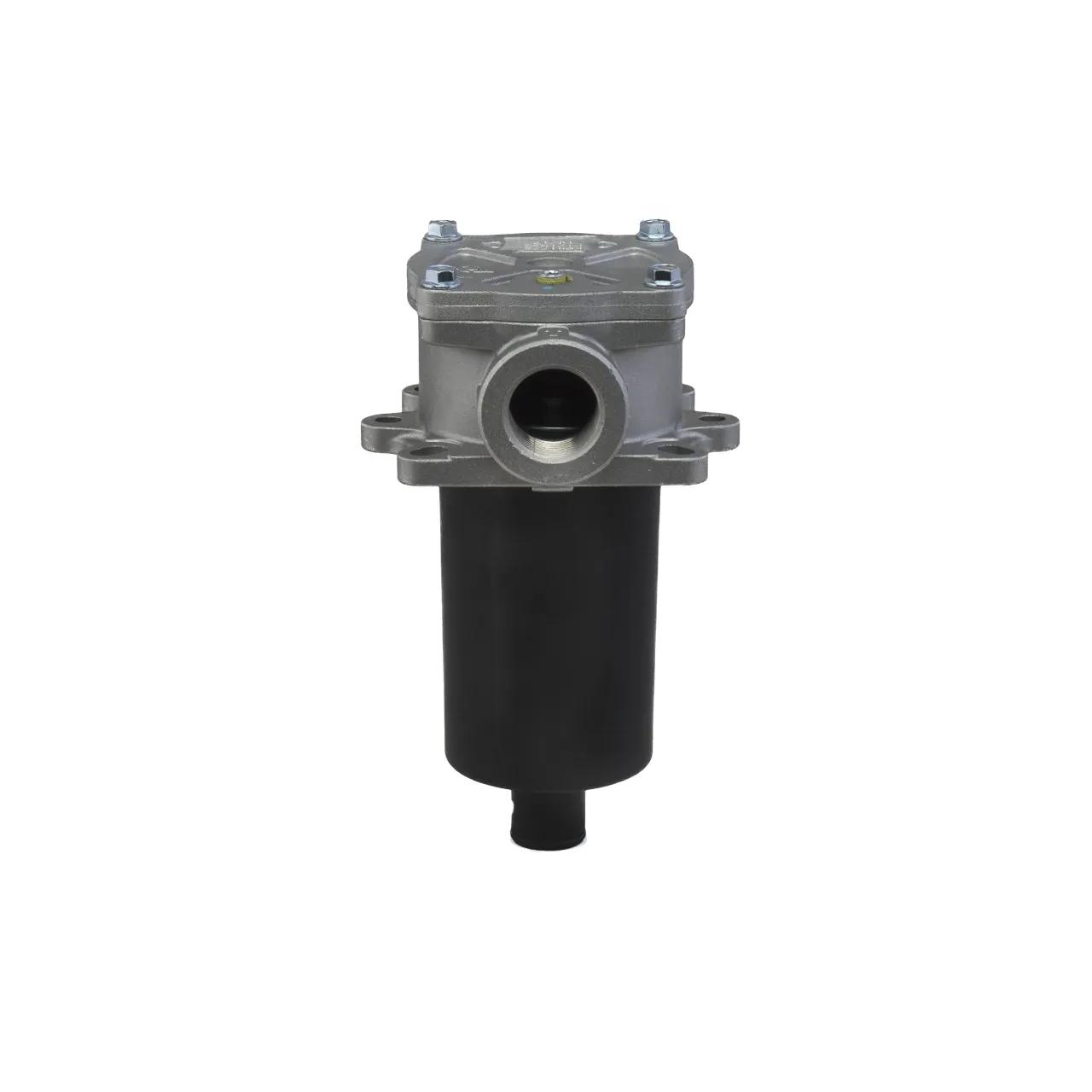

Hydraulic Filters Assy, OD: 1,09 in, ID: 1 NPT
#DONK041772
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 21.76 psi (1.5 bar) |
| Diameter Range | 1 to 1.99 in |
| Filter Rating | 10 Micron |
| Inlet Size | 1 NPT |
| Micron Rating | 10 Micron |
| Notes | 25/30P-1 10Q ELEM ASSY VITON |
| Outlet Diameter | 1.09 in (27.69 mm) |
| Overall Length | 8.79 in (223.3 mm) |
| Series | FIK |
| Volt | 12V |
| Pressure Rating | 2500 psi (172.37 bar) |
Interchanges & Equivalent parts:
| K041772 |
| K041772D0N |
