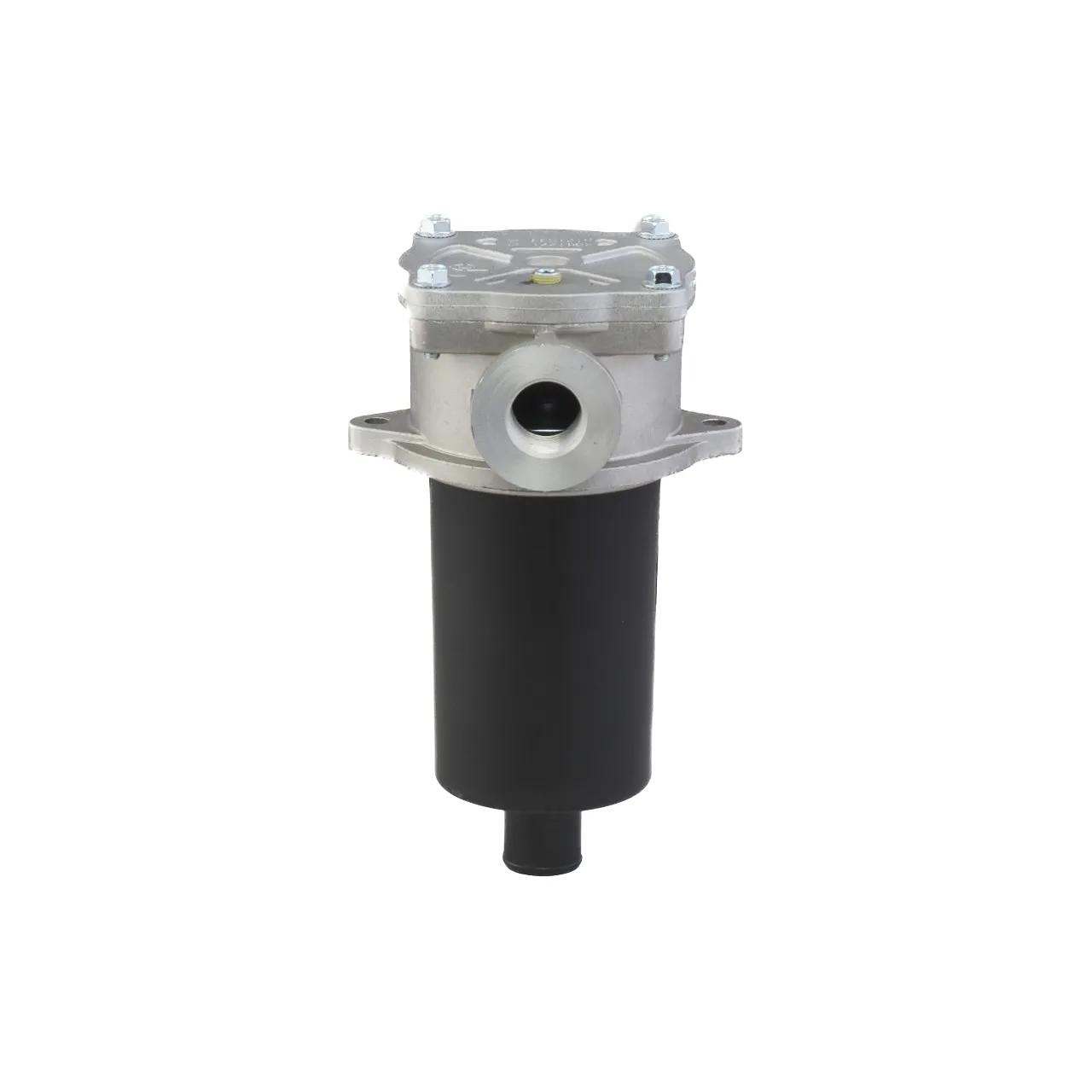

Hydraulic Filters Assy, OD: 1,09 in, ID: 3/4 NPT
#DONK041771
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 21.76 psi (1.5 bar) |
| Diameter Range | 1 to 1.99 in |
| Element Length | 6-1/2 in (16.51 cm) |
| Inlet Size | 3/4 NPT |
| Maximum Pressure | 2500 psi |
| Outlet Diameter | 1.09 in (27.69 mm) |
| Outlet Size | 1 NPTF |
| Overall Length | 8.79 in (223.3 mm) |
| Series | FIK |
| Service Clearance (in.) | 19,29 in (490 mm) |
Interchanges & Equivalent parts:
| TI12N2AHN |
| TI12N4AHN |
| K041771D0N |
| K041771 |
