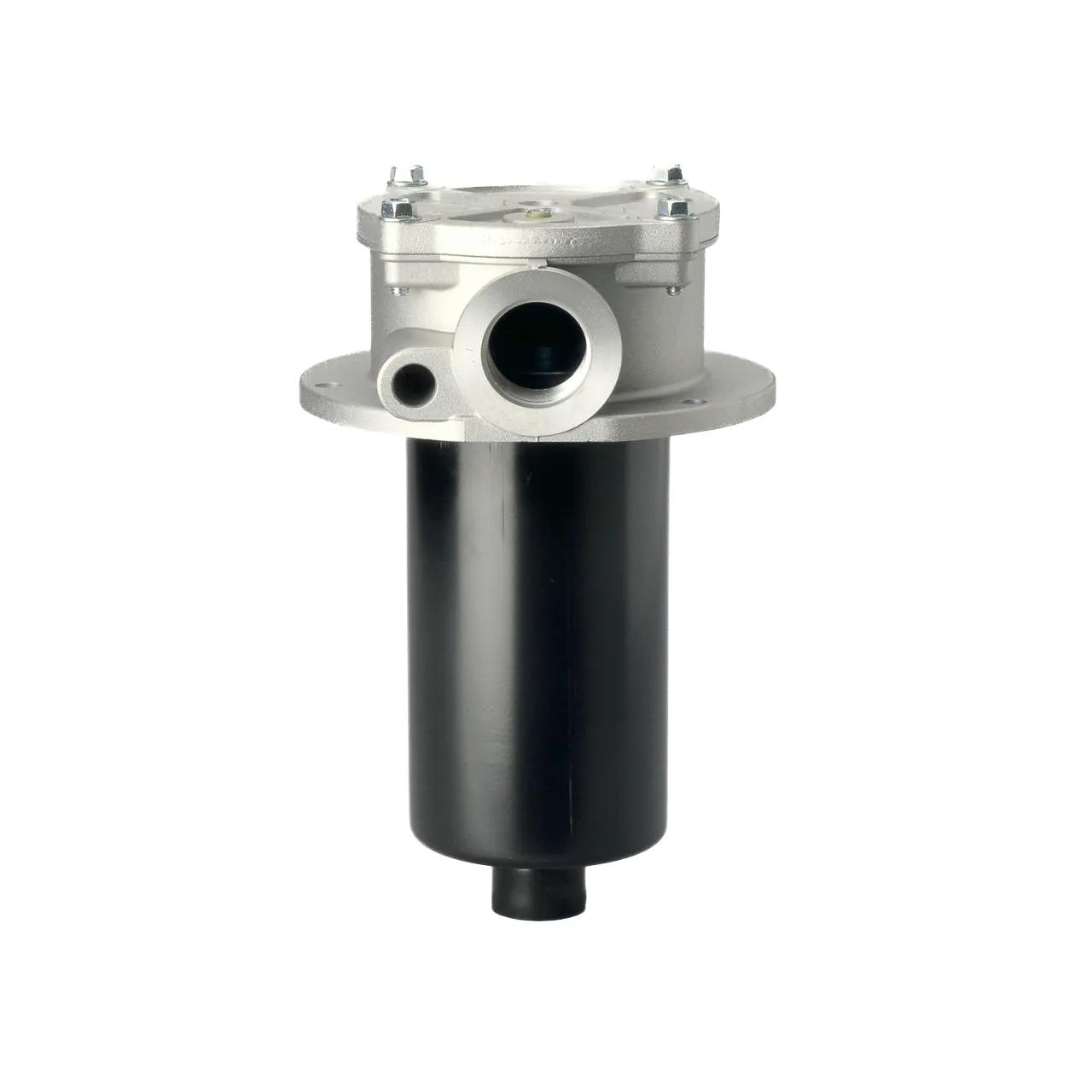

Hydraulic Filters Assy, OD: 1,6 in, ID: 1 5/8-12 UN
#DONK051204
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 21.76 psi (1.5 bar) |
| Diameter Range | 1 to 1.99 in |
| Element Length | Single |
| Filter Rating | 5 Micron |
| Inlet Size | 1 5/8-12 UN |
| Maximum Pressure- Fatigue MAOP | 2000 psi |
| Maximum Pressure- Non-Fatigue MAOP | 3000 psi |
| Micron Rating | 5 Micron |
| Nominal Flow Rating | 20 GPM (76 LPM) |
| Notes | 25/30P-2 5Q ELEM ASSY VITON |
| Outlet Diameter | 1.6 in (40.64 mm) |
| Outlet Size | 16 SAE |
| Overall Length | 10.79 in (274.1 mm) |
| Port Size | 16 SAE |
| Series | FIK |
| Service Clearance (in.) | 8.27 in |
| Temperature Range | -40° to 225°F /-40 to 107°C |
Interchanges & Equivalent parts:
| K051204 |
| DN K051204 |
| DN K051204 |
| 11042776 |
| 2191-K051204 |
| DONK051204 |
