2 POINTS

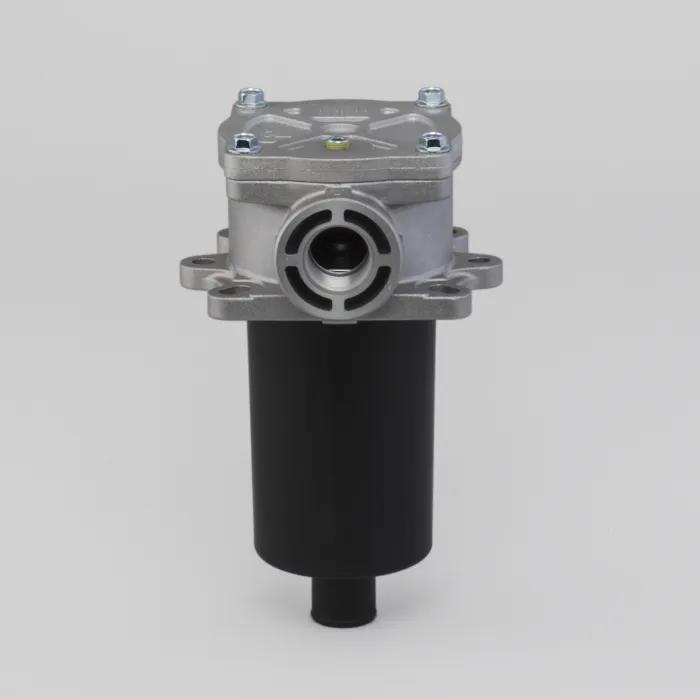

Hydraulic Filters Assy, OD: 3 in, ID: 1 1/16-12 UN
#DONK041774
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 21.76 psi (1.5 bar) |
| Diameter Range | 3 to 3.99 in |
| Filter Rating | 10 Micron |
| Inlet Size | 1 1/16-12 UN |
| Micron Rating | 10 Micron |
| Notes | 50P-1 10Q VITON HF4 STYLE ELEM |
| Outlet Diameter | 3 in (76.2 mm) |
| Overall Length | 8.79 in (223.3 mm) |
| Series | FIK |
| Overall Width | 11.125 in |
Interchanges & Equivalent parts:
| K041774 |
