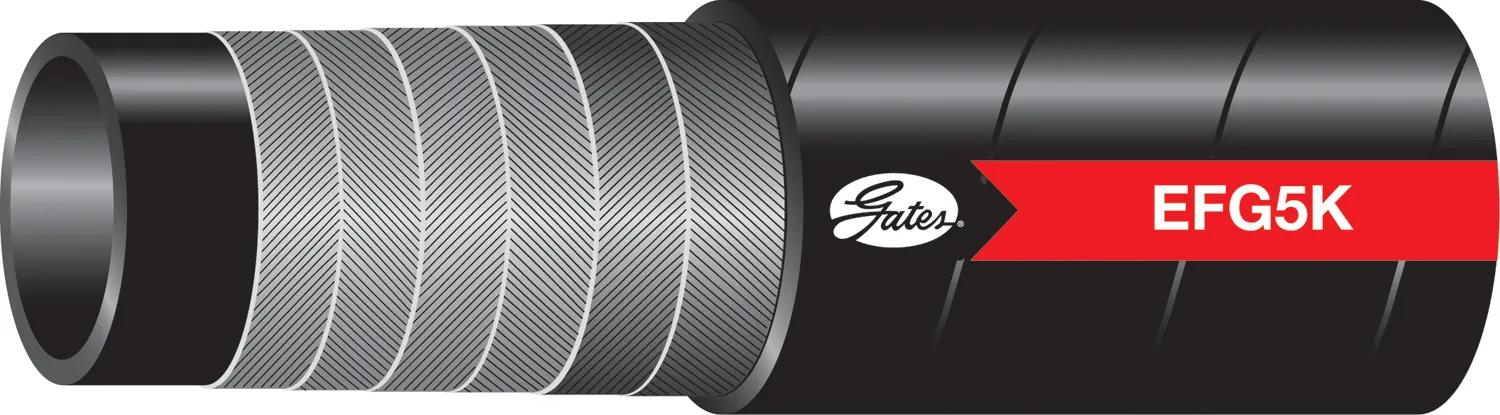

Hydraulic Hose, ID: 1-1/4 in, MegaCrimp
#GAT85458
Product Overview
Recommended for Extremely High Pressure Hydraulic Applications.
Features & Benefits
- Compatible w/ Biodegradable Hydraulic Fluids like Polyolester, Polyglycol & Vegetable Oil as Well as Standard Petroleum-Based Fluids. Meets Flame Resistance Acceptance Designation MSHA 2G.
- EFG5K is Designed to Meet or Exceed All Requirements of SAE 100R13 Specifications & Performance Requirements of EN 856 4SH (Sizes 16 & 20), EN 856 4SP (Sizes 10 & 12), EN 856 R13 & ISO 3862 Type R13 (Sizes 12, 16, 20, 24 & 32).
- Temperature Range: -40 Deg F - +250 Deg F (-40 Deg C - +121 Deg C). Recommended Couplings: GlobalSpiral, GlobalSpiral MAX Pressure & Stainless Steel S.
Specifications
| Couleur | Black |
| Recommandation d'accouplement | GlobalSpiral, Stainless Steel S |
| Cover Material | Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame & Oil Resistant |
| Dash Size | 20 |
| Industrial Description | 20EFG5KX25FT |
| Inside Diameter 1 (in) | 1-1/4 po (3,18 cm) |
| Length | 150 ft (45,72 m) |
| Maximum Pressure | 5000 psi (344.73 bar) |
| Minimum Burst Pressure (PSI) | 20000 psi (1378.93 bar) |
| Outside Diameter | 1-31/32 in (5 cm) |
| Product Type | EFG5K Spiral Wire Hose - SAE 100R13 |
| Radius | 8-13/64 in (20.83 cm) |
| Reinforcement | Six Alternating Layers of Spiraled, High-Tensile Steel |
| Standard | SAE 100R13 |
| Temperature Range | -40°F @ 250°F (-40°C @ 121°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Tuyau à très haute pression |
Interchanges & Equivalent parts:
| H43020 |
| H46420 |
| H47020 |
| H47120 |
| 040220 |
| 78120BX |
| 85458 |
| 20EFG5KX25FT |
| EQ3120 |
| HQ3520 |
| PA3520 |
| 1166801 |
| 5P0202 |
| FC27320 |
| 04029692 |
| NT30020 |
| 46514025 |
