Hydraulic Hose, ID: 1-1/4 in
#GAT85482
Product Overview
Recommended for Extremely High-Pressure, High-Impulse Applications. Exceeds All Performance Requirements for SAE 100R12, EN 856 R12 & ISO 3862 Type R12.
Features & Benefits
- Compatible w/ Biodegradable Hydraulic Fluids like Polyolester, Polyglycol & Vegetable Oil as Well as Standard Petroleum-Based Fluids. Meets Flame Resistance Acceptance Designation MSHA 2G.
- Temperature Range: -40 Deg F - +250 Deg F (-40 Deg C - +121 Deg C). Recommended Couplings: GlobalSpiral, Special One-Piece (MC4-20 Crimper Only) (Size 20) & Stainless Steel S.
Specifications
| Couleur | Black |
| Recommandation d'accouplement | GlobalSpiral, MGS, Stainless Steel S |
| Matériau du couvercle | Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline |
| Type de housse | Type A - Flame & Oil Resistant |
| Dash Size | 20 |
| Description industrielle | 20EFG4KX25FT |
| Diam. intérieur 1 (po) | 1-1/4 po (3,18 cm) |
| Longueur | 500 pi (152,39 m) |
| Maximum Pressure | 4000 psi (275.79 bar) |
| Minimum Burst Pressure (PSI) | 16000 psi (1103.14 bar) |
| Outside Diameter | 1-27/32 in (4.67 cm) |

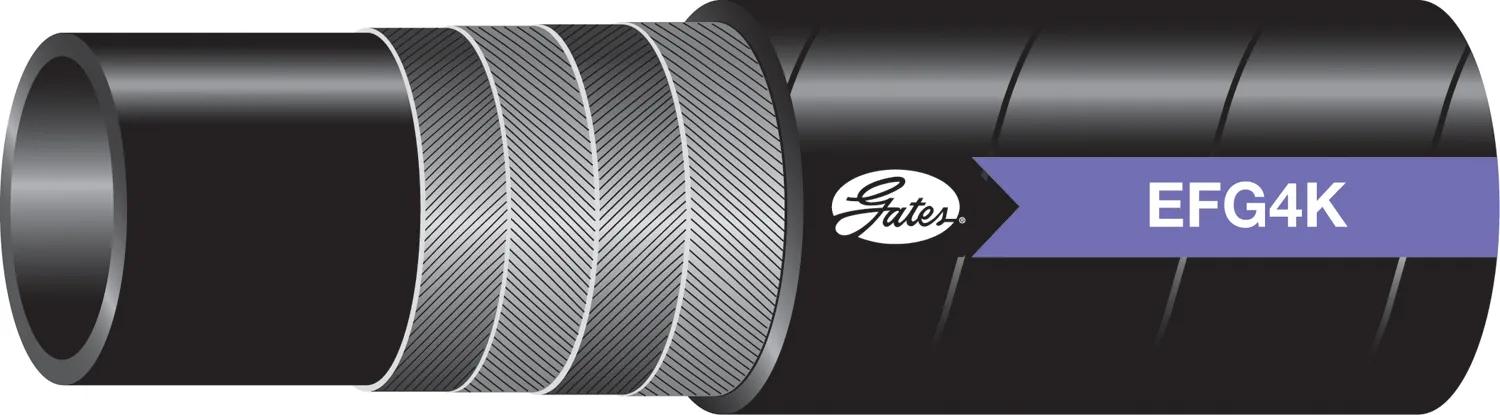

| Product Type | EFG4K Spiral Wire Hose - SAE 100R12 |
| Radius | 8-13/64 in (20.83 cm) |
| Reinforcement | Four Alternating Layers of Spiraled, High-Tensile Steel Wire |
| Standard | SAE 100R12 |
| Temperature Range | -40°F @ 250°F (-40°C @ 121°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Très haute pression |
Interchanges & Equivalent parts:
| 85482 |
| 772TC20BX |
| 20EFG4KX25FT |
| 04029744 |
| 46514013 |
