Hydraulic Hose, ID: 1/2 in, GlobalSpiral
#GAT85536
Product Overview
Recommended for Ultra High Abrasive High-Pressure Hydraulic Oil Lines. Exceeds SAE 100R16, SAE 100R2, ISO 11237 2SC R16 & ISO 1436 2SN R2 Working Pressure, Minimum Bend Radius Requirements & Performance Requirements of EN 857 2SC & EN 853 2SN.
Features & Benefits
- M2T Hose Has Smaller Exterior Dimensions & Significantly Tighter Bend Radius. Meets Flame Resistance Acceptance Designation MSHA 2G.
- Temperature Range: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C). MegaTuff Hose Lasts up to 300 Times Longer than Standard Hose During Hose-to-Hose & Hose-to-Metal Abrasion Tests Per ISO 6945.
- Recommended Couplings: GlobalSpiral (Sizes 6 - 16), MegaCrimp & Stainless Steel B.
Specifications
| Color | Black |
| Coupling Recommendation | GlobalSpiral, MegaCrimp, Stainless Steel B |
| Cover Material | Synthetic Rubber - Neoprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame, Oil, Abrasion & Weather Resistant - MegaTuff Cover |
| Dash Size | 8 |
| Industrial Description | 8M2T-MTFX50FT |
| Inside Diameter 1 (in) | 1/2 in (1.27 cm) |
| Length | 250 ft (76.2 m) |
| Maximum Pressure | 4300 psi (296.47 bar) |
| Minimum Burst Pressure (PSI) | 17200 psi (1185.88 bar) |
| Outside Diameter | 13/16 in (2.06 cm) |

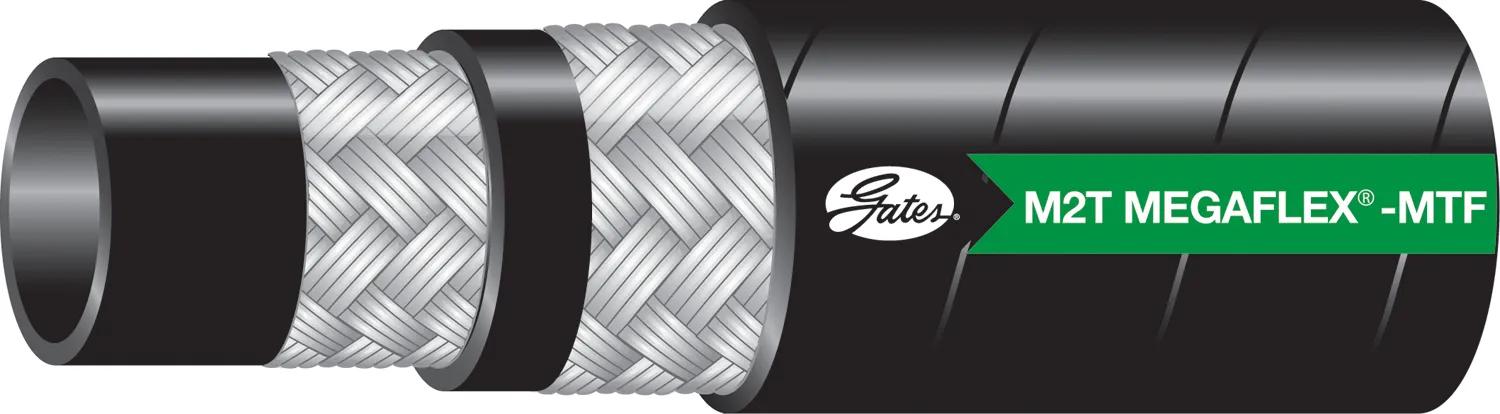

| Product Type | M2T MegaFlex 2-Wire Braid Hose - SAE 100R16 - MegaTuff Cover |
| Radius | 2-51/64 in (7.11 cm) |
| Reinforcement | Two Braids; High-Tensile Steel Wire |
| Standard | SAE 100R16 |
| Temperature Range | -40°F @ 212°F (-40°C @ 100°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | High Pressure |
Interchanges & Equivalent parts:
| 70389 |
| XR16SC08X50 |
| BXP08 |
| RT208 |
| 04029987 |
| 85536 |
| 8M2TMTFX50FT |
| 46574036 |
