Hydraulic Hose, ID: 1/2 in, GlobalSpiral
#GAT86995
Product Overview
Recommended for Petroleum Based or Phosphate Ester Fluids, Turbocharger Oil Supply & Hot Lube Oil Lines. Meets the Requirements of SAE J1405 Performance Specifications for High Temperature Transmission & Lubrication Oil Systems.
Features & Benefits
- DOT FMVSS 106–74 Type AII & SAE J1402 Type AII for (Sizes 4 -12).
- Temperature Range: -40 Deg F - +302 Deg F (-40 Deg C - +150 Deg C).
- Recommended Couplings: C5 Field Attachable (Sizes 6, 16 & 20), C5X Field Attachable (Sizes 5, 8 & 12), MegaCrimp & GlobalSpiral. Please See Gates Ecrimp for Correct Fitting Recommendation.
Specifications
| Color | Blue |
| Coupling Recommendation | GlobalSpiral |
| Cover Material | Polyester & Textile Braid |
| Cover Type | Oil & Mildew Resistant |
| Dash Size | 10 |
| Industrial Description | 10C5CXHX50FT |
| Inside Diameter 1 (in) | 1/2 in (1.27 cm) |
| Length | 100 ft (30.48 m) |
| Maximum Pressure | 1750 psi (120.66 bar) |
| Minimum Burst Pressure (PSI) | 7000 psi (482.63 bar) |
| Outside Diameter | 59/64 in (2.34 cm) |

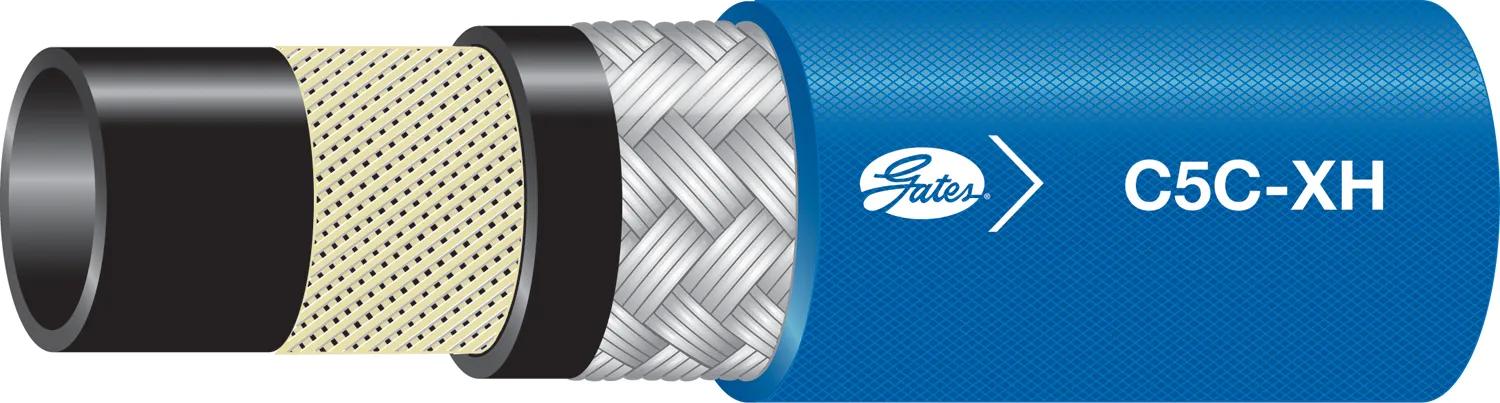

| Product Type | C5CXH XTreme Heat Hose - SAE 100R5 |
| Radius | 5-1/2 in (13.97 cm) |
| Reinforcement | Braided High Tensile Wire & Textile |
| Standard | SAE 100R5 |
| Temperature Range | -40°F @ 302°F (-40°C @ 150°C) |
| Tube Description | Black, Oil & Heat Resistant, Synthetic Polymer Tube |
| Type | Fleet Application & Maintenance Hose |
Interchanges & Equivalent parts:
| 86995 |
| 10C5CXHX50FT |
| DUT10 |
| 20610 |
| 04030403 |
| 36584004 |
