Hydraulic Hose, ID: 1/2 in, MegaCrimp
#GAT70826
Product Overview
Recommended for High-Pressure Hydraulic Applications. Exceeds SAE 100R19 & ISO11237 R19. Allows for Tighter Minimum Bend Radius, Increased Working Pressure & Improved Impulse Cycles than Industry Standards.
Features & Benefits
- Provides Greater Performance, Flexibility, Easier Routing & Plumbing of Mobile & Stationary Hydraulic Platforms. Meets Flame Resistance Acceptance Designation MSHA 2G.
- Temperature Range: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C). MegaTuff Hose Lasts up to 300 Times Longer than Standard Hose During Hose-to-Hose & Hose-to-Metal Abrasion Tests Per ISO 6945.
- Recommended Couplings: GlobalSpiral, MegaCrimp, Stainless Steel B (Sizes 4 û 8) & Stainless Steel S (Sizes 12 û 16).
Specifications
| Color | Black |
| Coupling Recommendation | GlobalSpiral, MegaCrimp, Stainless Steel B |
| Cover Material | Synthetic Rubber - Neoprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame, Oil, Abrasion & Weather Resistant - MegaTuff Cover |
| Dash Size | 8 |
| Industrial Description | 8M4K-MTFXREEL |
| Inside Diameter 1 (in) | 1/2 in (1.27 cm) |
| Length | 225 pi (68.58 m) |
| Maximum Pressure | 4000 psi (275.79 bar) |
| Minimum Burst Pressure (PSI) | 16000 psi (1103.14 bar) |
| Outside Diameter | 13/16 in (2.06 cm) |

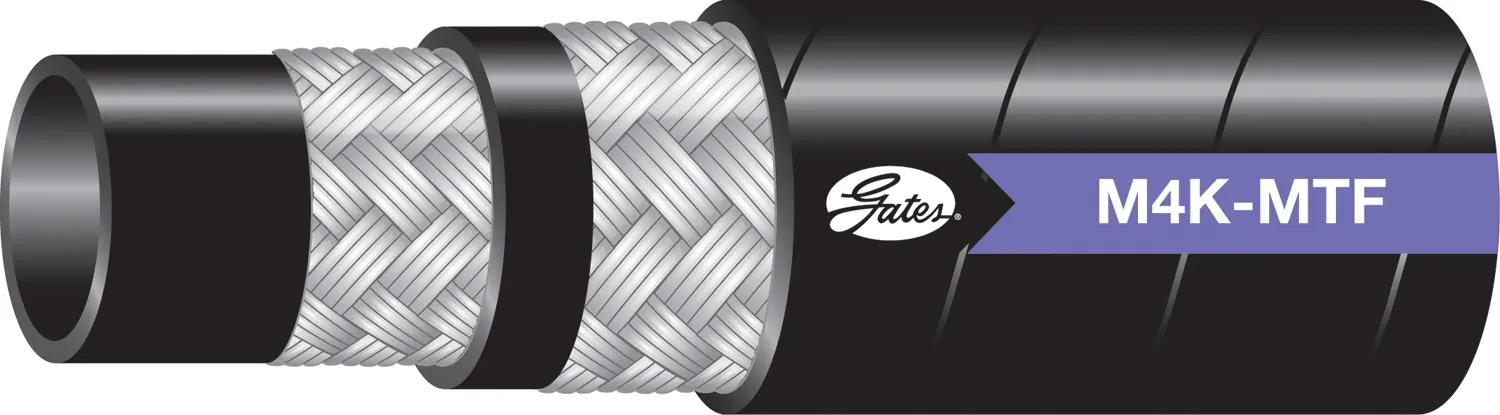

| Product Type | Global M4K Mega4000 Hose - SAE 100R19 - MegaTuff Cover |
| Radius | 2-51/64 in (7.11 cm) |
| Reinforcement | Two Braids; High-Tensile Steel Wire |
| Standard | SAE 100R19 |
| Temperature Range | -40°F @ 212°F (-40°C @ 100°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | High Pressure |
Interchanges & Equivalent parts:
| XCP408X250 |
| 351ST8 |
| 351ST8RL |
| 70826 |
| 8M4KMTFXREEL |
| 487ST8 |
| 04029836 |
| 46571480 |
